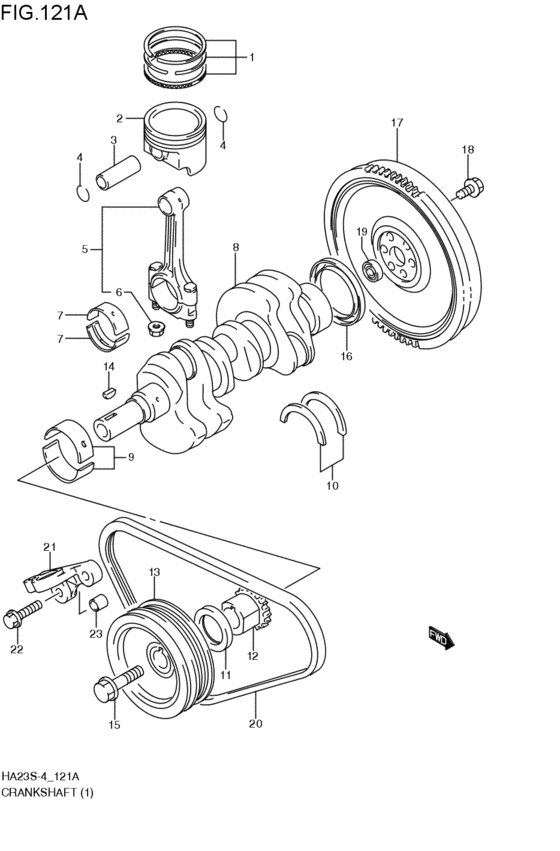

crankshaft (LB; 2002-04-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- LB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- BD
- number of the gears
- 5MT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-84G00-000
リングセット,ピストン,STD
LB; 2002-04-01~2004-07-01 |
12140-84G00-000 |
— | ||
|
2
|
2
12111-84G00-0A0
ピストン,STD,マーク 1
マ-ク1; LB; 2002-04-01~2004-02-01 |
12111-84G00-0A0 |
— | ||
| replacement | |||||
|
2
|
2
12111-84G01-0A0
ピストン,STD,マーク 1
マ-ク1; LB; 2002-04-01~2004-02-01 |
12111-84G01-0A0 |
— | ||
|
2
|
2
12111-84G00-0B0
ピストン,STD,マーク 2
マ-ク2; LB; 2002-04-01~2004-02-01 |
12111-84G00-0B0 |
— | ||
| replacement | |||||
|
2
|
2
12111-84G01-0B0
ピストン,STD,マーク 2
マ-ク2; LB; 2002-04-01~2004-02-01 |
12111-84G01-0B0 |
— | ||
|
2
|
2
12111-84G01-0A0
ピストン,STD,マーク 1
マ-ク1; LB; 2004-03-01~2004-07-01 |
12111-84G01-0A0 |
— | ||
|
2
|
2
12111-84G01-0B0
ピストン,STD,マーク 2
マ-ク2; LB; 2004-03-01~2004-07-01 |
12111-84G01-0B0 |
— | ||
|
3
|
3
12151-60D00-000 PIN,PISTONLB; 2002-04-01~2004-07-01 |
12151-60D00-000 |
from US $19.92 |
||
|
4
|
4
09381-16001-000 RING,SNAPCirclip LB; 2002-04-01~2004-07-01 |
09381-16001-000 |
from US $0.43 |
||
|
5
|
5
12160-84G00-000
コネクチングロッドアッシ
LB; 2002-04-01~2004-07-01 |
12160-84G00-000 |
— | ||
|
5
|
5
12160-84G01-000
コネクチングロッドアッシ
LB; 2003-09-01~2004-07-01 |
12160-84G01-000 |
— | ||
|
6
|
6
09159-08033-000 NUTLB; 2002-04-01~2004-07-01 |
09159-08033-000 |
from US $0.97 |
||
|
7
|
7
12181-81051-0A0 BEARING,CONNROD STDLB; 2002-04-01~2004-07-01 |
12181-81051-0A0 |
from US $8.01 |
||
|
7
|
7
12181-84H00-0A0 BEARING,CONNROD STDLB; 2003-09-01~2004-07-01 |
12181-84H00-0A0 |
US $22.40 |
||
|
8
|
8
12221-73G70-000 CRANKSHAFTLB; 2002-04-01~2004-07-01 |
12221-73G70-000 |
US $1,362.20 |
||
|
9
|
9
12300-75820-0B0
BEARING SET,CRANKSHAFT STD
カラー:ブラック,#1,#2,#4; LB; 2002-04-01~2004-07-01 |
12300-75820-0B0 |
— | ||
|
9
|
9
12300-75820-0C0 BEARING SET,CRANKSHAFT STDカラー:ナシ,#1,#2,#4; LB; 2002-04-01~2004-07-01 |
12300-75820-0C0 |
US $29.81 |
||
|
9
|
9
12300-75820-0D0
BEARING SET,CRANKSHAFT STD
カラー:イエロ-,#1,#2,#4; LB; 2002-04-01~2004-07-01 |
12300-75820-0D0 |
— | ||
|
9
|
9
12300-75830-0A0 BEARING SET,CRANKSHAFT STDカラー:ブラウン,#3; LB; 2002-04-01~2004-07-01 |
12300-75830-0A0 |
US $18.22 |
||
|
9
|
9
12300-75830-0B0 BEARING SET,CRANKSHAFT STDカラー:グリーン,#3; LB; 2002-04-01~2004-07-01 |
12300-75830-0B0 |
US $18.22 |
||
|
9
|
9
12300-75830-0C0 BEARING SET,CRANKSHAFT STDカラー:ブラック,#3; LB; 2002-04-01~2004-07-01 |
12300-75830-0C0 |
from US $21.90 |
||
|
9
|
9
12300-75830-0D0 BEARING SET,CRANKSHAFT STDカラー:ナシ,#3; LB; 2002-04-01~2004-07-01 |
12300-75830-0D0 |
from US $21.90 |
||
|
9
|
9
12300-69840-0E0
BEARING SET,CRANKSHAFT STD
カラー:ブラウン,#1,#2,#4; LB; 2002-04-01~2004-07-01 |
12300-69840-0E0 |
— | ||
|
9
|
9
12300-75820-0A0 BEARING SET,CRANKSHAFT STDカラー:グリーン,#1,#2,#4; LB; 2002-04-01~2004-07-01 |
12300-75820-0A0 |
US $24.84 |
||
|
9
|
9
12300-75830-0E0 BEARING SET,CRANKSHAFT STDカラー:イエロー,#3; LB; 2002-04-01~2004-07-01 |
12300-75830-0E0 |
US $18.22 |
||
|
9
|
9
12340-69G00-0C0
BEARING SET BROWN T 2
カラー:ブラウン,#1,#2,#4; LB; 2003-07-01~2004-02-01 |
12340-69G00-0C0 |
— | ||
| replacement | |||||
|
9
|
9
12340-69GA0-0C0 BEARING SET,CRANKSHAFT STD (BROWN)カラー:ブラウン,#1,#2,#4; LB; 2003-07-01~2004-02-01 |
12340-69GA0-0C0 |
from US $13.86 |
||
|
9
|
9
12340-75F00-0A0
Bearing set (green)
カラー:グリーン,#3; LB; 2004-03-01~2004-02-01 |
12340-75F00-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12340-75FA0-0A0 BEARING SET,CRANKSHAFT STD (GREEN)カラー:グリーン,#3; LB; 2004-03-01~2004-02-01 |
12340-75FA0-0A0 |
from US $14.74 |
||
|
9
|
9
12340-75F00-0B0
Bearing set (black)
カラー:ブラック,#3; LB; 2004-03-01~2004-02-01 |
12340-75F00-0B0 |
— | ||
| replacement | |||||
|
9
|
9
12340-75FA0-0B0 BEARING SET,CRANKSHAFT STD (BLACK)カラー:ブラック,#3; LB; 2004-03-01~2004-02-01 |
12340-75FA0-0B0 |
from US $15.44 |
||
|
9
|
9
12340-75F00-0C0 BEARING SET STD (Color: None)Bearing set, crankshaft カラー:ナシ,#3; LB; 2004-03-01~2004-02-01 |
12340-75F00-0C0 |
from US $12.71 |
||
|
9
|
9
12340-75F00-0D0 BEARING SET,CRANKSHAFT STD (YELLOW)Bearing set, crankshaft カラー:イエロ-,#1,#2,#4; LB; 2003-07-01~2003-06-01 |
12340-75F00-0D0 |
from US $13.66 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
LB; 2002-04-01~2004-07-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)LB; 2002-04-01~2004-07-01 |
12300-60840-000 |
from US $10.10 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
LB; 2002-04-01~2004-07-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)LB; 2002-04-01~2004-07-01 |
12300-60840-012 |
from US $12.24 |
||
|
11
|
11
09283-35047-000 SEAL,OIL(35X47X6)Seal, oil LB; 2002-04-01~2004-07-01 |
09283-35047-000 |
from US $8.66 |
||
|
12
|
12
12631-58J00-000 Sprocket, Crankshaft TimingLB; 2003-09-01~2004-07-01 |
12631-58J00-000 |
from US $31.32 |
||
|
12
|
12
12631-73G60-000
Sprocket, crank timing
LB; 2002-04-01~2004-07-01 |
12631-73G60-000 |
— | ||
| replacement | |||||
|
12
|
12
12631-58J00-000 Sprocket, Crankshaft TimingLB; 2002-04-01~2004-07-01 |
12631-58J00-000 |
from US $31.32 |
||
|
13
|
13
12611-84G01-000
プーリ,クランクシャフト
LB; 2002-04-01~2004-07-01 |
12611-84G01-000 |
— | ||
|
14
|
14
09420-04008-000 KEYLB; 2002-04-01~2004-07-01 |
09420-04008-000 |
from US $1.76 |
||
|
15
|
15
12619-73G00-000
Bolt
LB; 2002-04-01~2004-07-01 |
12619-73G00-000 |
— | ||
| replacement | |||||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEYLB; 2002-04-01~2004-07-01 |
12619-69G10-000 |
from US $9.60 |
||
|
16
|
16
09283-79001-000
Seal, oil (78x99x8)
LB; 2002-04-01~2004-07-01 |
09283-79001-000 |
— | ||
| replacement | |||||
|
16
|
16
09283-79002-000 SEAL,OIL(79X99X8)LB; 2002-04-01~2004-07-01 |
09283-79002-000 |
from US $43.81 |
||
|
17
|
17
12620-73G01-000
フライホイール
LB; 2002-04-01~2004-07-01 |
12620-73G01-000 |
— | ||
|
18
|
18
09103-10282-000 BOLT(10X18.5)LB; 2002-04-01~2004-07-01 |
09103-10282-000 |
from US $2.08 |
||
|
19
|
19
12623-70B00-000 BEARING,INPUT SHAFTLB; 2002-04-01~2004-07-01 |
12623-70B00-000 |
from US $15.91 |
||
|
20
|
20
17521-84H00-000 BELT,WATER PUMP 4PK850LB; 2003-05-01~2004-07-01 |
17521-84H00-000 |
from US $10.60 |
||
|
20
|
20
95141-60G50-000 BELT,WATER PUMP 4PK840LB; 2002-04-01~2004-07-01 |
95141-60G50-000 |
from US $40 |
||
| replacement | |||||
|
20
|
20
95141-60G50-CDN
Belt,air con 4pk840
LB; 2002-04-01~2004-07-01 |
95141-60G50-CDN |
— | ||
|
21
|
21
12613-84G00-000
ブラケット,クランクアングルセンサ
LB; 2002-04-01~2004-07-01 |
12613-84G00-000 |
— | ||
|
22
|
22
01550-06253-000
Bolt (6x25)
LB; 2002-04-01~2004-07-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0625B-000 BoltBolt, head cover LB; 2002-04-01~2004-07-01 |
01550-0625B-000 |
from US $0.91 |
||
|
22
|
22
01550-0625A-000 BoltBolt LB; 2002-04-01~2004-07-01 |
01550-0625A-000 |
from US $0.96 |
||
|
23
|
23
04211-09109-000 PINKnock pin LB; 2002-04-01~2004-07-01 |
04211-09109-000 |
from US $0.86 |
||
