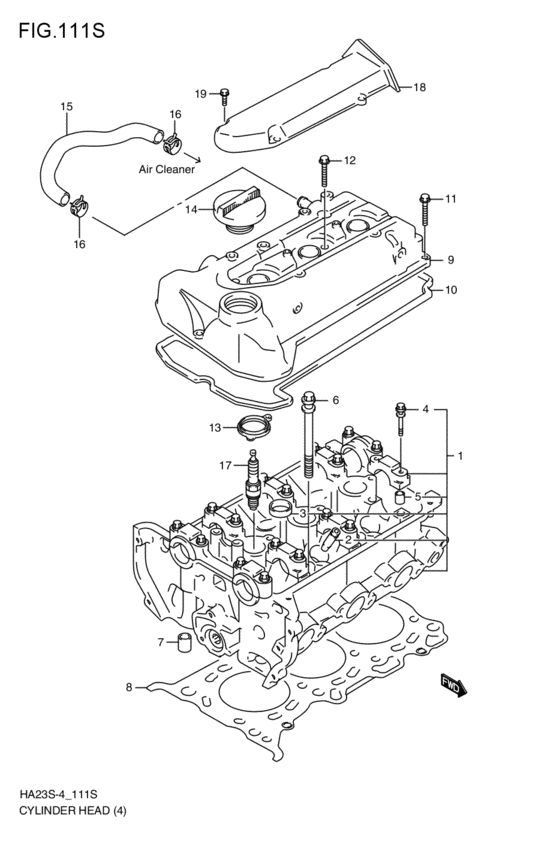

Cylinder head (LB; 2002-04-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- LB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- BD
- number of the gears
- 5MT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-84G01-000
ヘッドアッシ,シリンダ
LB; 2002-04-01~2004-07-01 |
11100-84G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-84G03-000
New Genuine Part
LB; 2002-04-01~2004-07-01 |
11100-84G03-000 |
— | ||
|
2
|
2
11115-73G01-001 GUIDE,VALVELB; 2002-04-01~2004-07-01 |
11115-73G01-001 |
from US $13.38 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil LB; 2002-04-01~2004-07-01 |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36LB; 2002-04-01~2004-07-01 |
11128-73G60-000 |
US $1.52 |
||
|
5
|
5
09206-08001-000 PIN(8X11)LB; 2002-04-01~2004-07-01 |
09206-08001-000 |
from US $1.53 |
||
|
6
|
6
11117-73G00-000 BOLT,CYLINDER HEADLB; 2002-04-01~2004-07-01 |
11117-73G00-000 |
from US $4.80 |
||
|
7
|
7
09206-13020-000 PIN(10.4X13X18)LB; 2002-04-01~2004-07-01 |
09206-13020-000 |
from US $1.22 |
||
|
8
|
8
11141-73G01-000
Gasket,cylinder head
LB; 2002-04-01~2004-07-01 |
11141-73G01-000 |
— | ||
| replacement | |||||
|
8
|
8
11141-73G03-000 GASKET,CYL HEADLB; 2002-04-01~2004-07-01 |
11141-73G03-000 |
from US $77.99 |
||
|
9
|
9
11170-78G02-000 Cover,cylinder headLB; 2002-04-01~2002-10-01 |
11170-78G02-000 |
US $283.36 |
||
|
9
|
9
11170-84H01-000
カバー,シリンダヘッド
LB; 2002-11-01~2004-04-01 |
11170-84H01-000 |
— | ||
| replacement | |||||
|
9
|
9
11170-84H03-000 Cover,cylinder headLB; 2002-11-01~2004-04-01 |
11170-84H03-000 |
US $279.68 |
||
|
9
|
9
11170-84H02-000
カバー,シリンダヘッド
LB; 2004-04-01~2004-07-01 |
11170-84H02-000 |
— | ||
| replacement | |||||
|
9
|
9
11170-84H03-000 Cover,cylinder headLB; 2004-04-01~2004-07-01 |
11170-84H03-000 |
US $279.68 |
||
|
10
|
10
11189-67H00-000
ガスケット,シリンダヘッドカバー
LB; 2002-11-01~2004-07-01 |
11189-67H00-000 |
— | ||
| replacement | |||||
|
10
|
10
11189-67H12-000 GASKET,CYL HEAD COVERLB; 2002-11-01~2004-07-01 |
11189-67H12-000 |
from US $16.85 |
||
|
10
|
10
11189-78G01-000 Gasket, Cylinder Head CoverLB; 2002-04-01~2002-10-01 |
11189-78G01-000 |
from US $21.26 |
||
|
11
|
11
01547-06253-000
Bolt
LB; 2002-04-01~2004-07-01 |
01547-06253-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0625B-000 BoltLB; 2002-04-01~2004-07-01 |
01547-0625B-000 |
from US $0.91 |
||
|
12
|
12
01547-06553-000
Bolt
LB; 2002-04-01~2004-07-01 |
01547-06553-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0655B-000 BoltLB; 2002-04-01~2004-07-01 |
01547-0655B-000 |
from US $1.91 |
||
|
13
|
13
11179-73G00-000 GASKET,SPARK PLUG HOLEGasket, spark plug hole LB; 2002-04-01~2002-10-01 |
11179-73G00-000 |
from US $10.94 |
||
|
14
|
14
16920-83G10-000
Cap comp,oil filler
LB; 2002-04-01~2004-07-01 |
16920-83G10-000 |
— | ||
| replacements | |||||
|
14
|
14
16920-83G00-000
Cap,oil filler
LB; 2002-04-01~2004-07-01 |
16920-83G00-000 |
— | ||
|
14
|
14
16920-83G01-000 CAP OIL FILLERLB; 2002-04-01~2004-07-01 |
16920-83G01-000 |
US $10.22 |
||
|
15
|
15
11191-75F00-000 HOSE,BREATHERLB; 2002-04-01~2004-07-01 |
11191-75F00-000 |
US $15.16 |
||
|
16
|
16
09401-18404-000 CLIPLB; 2002-04-01~2004-07-01 |
09401-18404-000 |
from US $1.26 |
||
|
17
|
17
09482-00527-000
SPARK PLUG(KR7AI)
NGK; LB; 2002-04-01~2004-07-01 |
09482-00527-000 |
— | ||
|
17
|
17
09482-00563-000 PLUG,SPARK(IXU22C)DENSO; LB; 2002-04-01~2004-07-01 |
09482-00563-000 |
US $24 |
||
|
18
|
18
11180-78G01-000
カバー,シリンダヘッド,アッパ
LB; 2002-04-01~2004-07-01 |
11180-78G01-000 |
— | ||
| replacement | |||||
|
18
|
18
11180-80HA0-000 COVER,CYL HEAD UPPERLB; 2002-04-01~2004-07-01 |
11180-80HA0-000 |
US $36.80 |
||
|
18
|
18
11180-80HA0-000 COVER,CYL HEAD UPPERLB; 2004-06-01~2004-07-01 |
11180-80HA0-000 |
US $36.80 |
||
|
19
|
19
09103-06232-000 BOLT(6X16)LB; 2002-04-01~2004-07-01 |
09103-06232-000 |
from US $0.47 |
||
