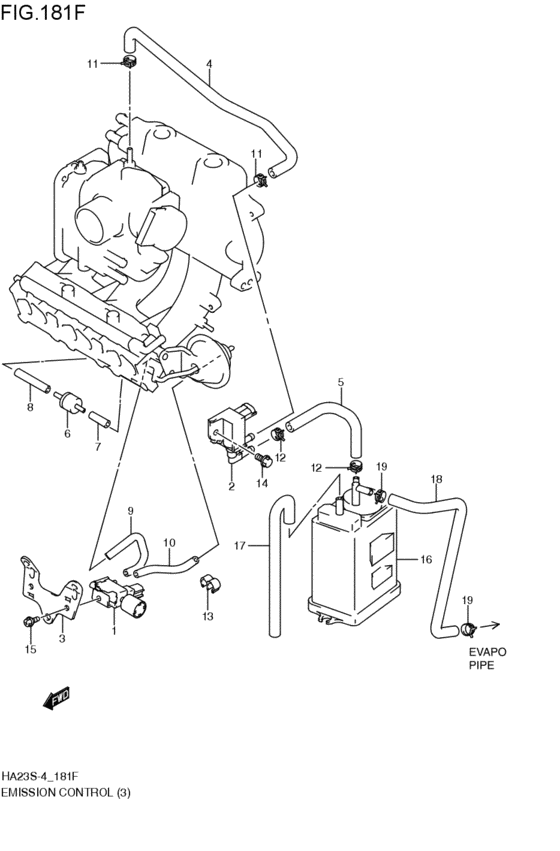

emission control (LB:MT; 2002-04-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- LB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- BD
- number of the gears
- 5MT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-80F00-000
VALVE,VACUUM SWITCHING
LB:MT; 2002-04-01~2004-07-01 |
18117-80F00-000 |
— | ||
|
2
|
2
18117-81AB2-000 VALVE,CANISTER PURGELB:MT; 2002-04-01~2004-07-01 |
18117-81AB2-000 |
US $130.40 |
||
|
3
|
3
18417-78GA0-000
ブラケット,EGR/バルブ
LB:MT; 2002-04-01~2004-07-01 |
18417-78GA0-000 |
— | ||
|
4
|
4
18564-83G02-000
ホース,バルブツースロットルボディ
LB:MT; 2002-04-01~2004-07-01 |
18564-83G02-000 |
— | ||
| replacements | |||||
|
4
|
4
09401-11419-000 CLIPLB:MT; 2002-04-01~2004-07-01 |
09401-11419-000 |
from US $1.42 |
||
|
4
|
4
18564-83G10-000 HOSE,VSV TO TBLB:MT; 2002-04-01~2004-07-01 |
18564-83G10-000 |
US $10.05 |
||
|
5
|
5
18565-73H00-000
ホース,キャニスタツーバルブ
LB:MT; 2002-04-01~2004-07-01 |
18565-73H00-000 |
— | ||
| replacements | |||||
|
5
|
5
09401-11419-000 CLIPLB:MT; 2002-04-01~2004-07-01 |
09401-11419-000 |
from US $1.42 |
||
|
5
|
5
18565-73H10-000 HOSE,CSTR TO VSVLB:MT; 2002-04-01~2004-07-01 |
18565-73H10-000 |
US $7.07 |
||
|
6
|
6
95569-78040-000 VALVE,CHECKValve, check LB:MT; 2002-04-01~2004-07-01 |
95569-78040-000 |
from US $15.36 |
||
|
7
|
7
09355-35754-601
HOSE(3.5X7.5X601)
L:601>30; LB:MT; 2002-04-01~2004-07-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
7
|
7
09355-35006-601 Hose(3.5X7.5X601)L:601>30; LB:MT; 2002-04-01~2004-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:601>50; LB:MT; 2002-04-01~2004-07-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:601>50; LB:MT; 2002-04-01~2004-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
L:601>100; LB:MT; 2002-04-01~2004-07-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)L:601>100; LB:MT; 2002-04-01~2004-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:601>130; LB:MT; 2002-04-01~2004-07-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:601>130; LB:MT; 2002-04-01~2004-07-01 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09401-10409-000 CLIPLB:MT; 2002-04-01~2004-07-01 |
09401-10409-000 |
from US $1.28 |
||
|
12
|
12
09401-10409-000 CLIPLB:MT; 2002-04-01~2004-07-01 |
09401-10409-000 |
from US $1.28 |
||
|
13
|
13
09408-00033-000 CLAMPClamp LB:MT; 2002-04-01~2004-07-01 |
09408-00033-000 |
from US $1.60 |
||
|
14
|
14
01550-06123-000
Bolt
LB:MT; 2002-04-01~2004-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp LB:MT; 2002-04-01~2004-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BoltLB:MT; 2002-04-01~2004-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
02162-05083-000
Bolt
LB:MT; 2002-04-01~2004-07-01 |
02162-05083-000 |
— | ||
| replacement | |||||
|
15
|
15
02162-0508A-000 SCREWLB:MT; 2002-04-01~2004-07-01 |
02162-0508A-000 |
from US $2.82 |
||
|
16
|
16
18560-83G00-000 CANISTERLB:MT; 2002-04-01~2004-07-01 |
18560-83G00-000 |
US $112.61 |
||
|
17
|
17
18561-83G00-000
ホース,キャニスタサクション
LB:MT; 2002-04-01~2004-07-01 |
18561-83G00-000 |
— | ||
| replacement | |||||
|
17
|
17
18561-83G01-000 HOSE,CANISTER SUCTIONLB:MT; 2002-04-01~2004-07-01 |
18561-83G01-000 |
US $7.95 |
||
|
18
|
18
18567-73H11-000 HOSE,CANISTER INLETLB:MT; 2004-03-01~2004-07-01 |
18567-73H11-000 |
US $16.12 |
||
|
18
|
18
18567-83G00-000
ホース,キャニスタ,インレット
LB:MT; 2002-04-01~2004-02-01 |
18567-83G00-000 |
— | ||
| replacements | |||||
|
18
|
18
09401-11419-000 CLIPLB:MT; 2002-04-01~2004-02-01 |
09401-11419-000 |
from US $1.42 |
||
|
18
|
18
18567-73H11-000 HOSE,CANISTER INLETLB:MT; 2002-04-01~2004-02-01 |
18567-73H11-000 |
US $16.12 |
||
|
19
|
19
09401-11407-000
CLIP
LB:MT; 2002-04-01~2004-02-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-11415-000 CLIPLB:MT; 2002-04-01~2004-02-01 |
09401-11415-000 |
from US $1.06 |
||
|
19
|
19
09401-11419-000 CLIPLB:MT; 2004-03-01~2004-07-01 |
09401-11419-000 |
from US $1.42 |
||
