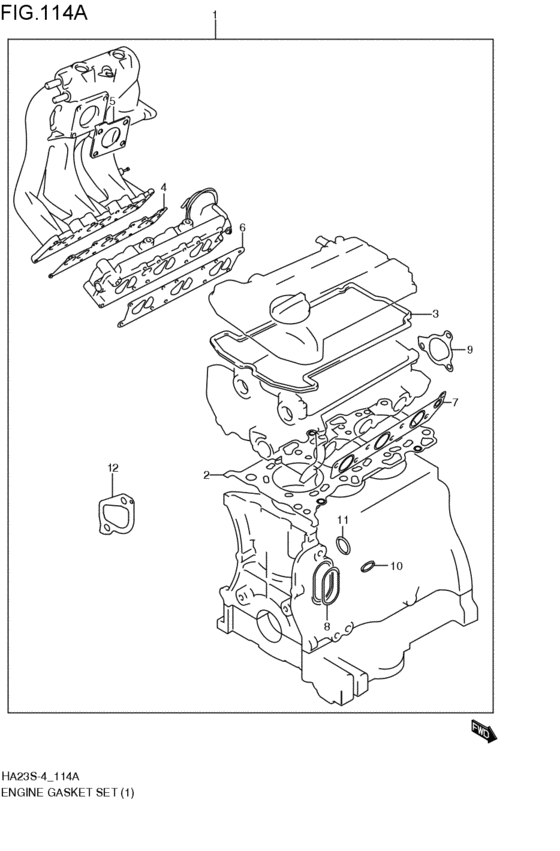

engine gasket set (LB:MT; 2002-04-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- LB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- BD
- number of the gears
- 5MT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-67892-000
ガスケットセット,エンジン
LB:MT; 2002-11-01~2004-07-01 |
11400-67892-000 |
— | ||
| replacements | |||||
|
1
|
1
11400-67896-000
New Genuine Part
LB:MT; 2002-11-01~2004-07-01 |
11400-67896-000 |
— | ||
|
1
|
1
11401-67890-000
New Genuine Part
LB:MT; 2002-11-01~2004-07-01 |
11401-67890-000 |
— | ||
|
1
|
1
11401-83862-000
ガスケットセット,エンジン
LB:MT; 2002-04-01~2002-10-01 |
11401-83862-000 |
— | ||
| replacements | |||||
|
1
|
1
11401-83866-000
GASKET SET,ENGINE
LB:MT; 2002-04-01~2002-10-01 |
11401-83866-000 |
— | ||
|
1
|
1
11401-83867-000
GASKET SET,ENGINE
LB:MT; 2002-04-01~2002-10-01 |
11401-83867-000 |
— | ||
|
2
|
2
11141-73G01-000
Gasket,cylinder head
LB:MT; 2002-04-01~2004-07-01 |
11141-73G01-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-73G03-000 GASKET,CYL HEADLB:MT; 2002-04-01~2004-07-01 |
11141-73G03-000 |
from US $77.99 |
||
|
3
|
3
11189-67H00-000
ガスケット,シリンダヘッドカバー
LB:MT; 2002-11-01~2004-07-01 |
11189-67H00-000 |
— | ||
| replacement | |||||
|
3
|
3
11189-67H12-000 GASKET,CYL HEAD COVERLB:MT; 2002-11-01~2004-07-01 |
11189-67H12-000 |
from US $16.85 |
||
|
3
|
3
11189-78G01-000 Gasket, Cylinder Head CoverLB:MT; 2002-04-01~2002-10-01 |
11189-78G01-000 |
from US $21.26 |
||
|
4
|
4
13119-78GA0-000
ガスケット,インテークマニホールド
LB:MT; 2002-04-01~2004-07-01 |
13119-78GA0-000 |
— | ||
|
5
|
5
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body LB:MT; 2002-04-01~2004-07-01 |
13421-77G00-000 |
from US $2.24 |
||
|
6
|
6
13469-78GA0-000
ガスケット,スワールコントロールバルブ
LB:MT; 2002-04-01~2004-07-01 |
13469-78GA0-000 |
— | ||
|
7
|
7
14141-83G00-000
ガスケット,エキゾーストマニホールド
LB:MT; 2002-04-01~2004-07-01 |
14141-83G00-000 |
— | ||
| replacement | |||||
|
7
|
7
14141-83G01-000 GASKET,EXH MANFLB:MT; 2002-04-01~2004-07-01 |
14141-83G01-000 |
from US $15.68 |
||
|
8
|
8
17611-73G01-000
O ring,water pump
LB:MT; 2002-04-01~2004-07-01 |
17611-73G01-000 |
— | ||
| replacement | |||||
|
8
|
8
17611-73G03-000 O-RING,WATER PUMPLB:MT; 2002-04-01~2004-07-01 |
17611-73G03-000 |
from US $4.95 |
||
|
9
|
9
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case LB:MT; 2002-04-01~2004-07-01 |
17699-73G01-000 |
from US $3.74 |
||
|
10
|
10
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe LB:MT; 2002-04-01~2004-07-01 |
17849-53E00-000 |
from US $1.52 |
||
|
11
|
11
17849-83G00-000 O-RING,HEATER OUTLET PIPELB:MT; 2002-04-01~2004-07-01 |
17849-83G00-000 |
from US $1.85 |
||
|
12
|
12
12832-58J00-000 GASKET,TENSIONER ADJUSTERLB:MT; 2003-12-01~2004-07-01 |
12832-58J00-000 |
from US $3.26 |
||
