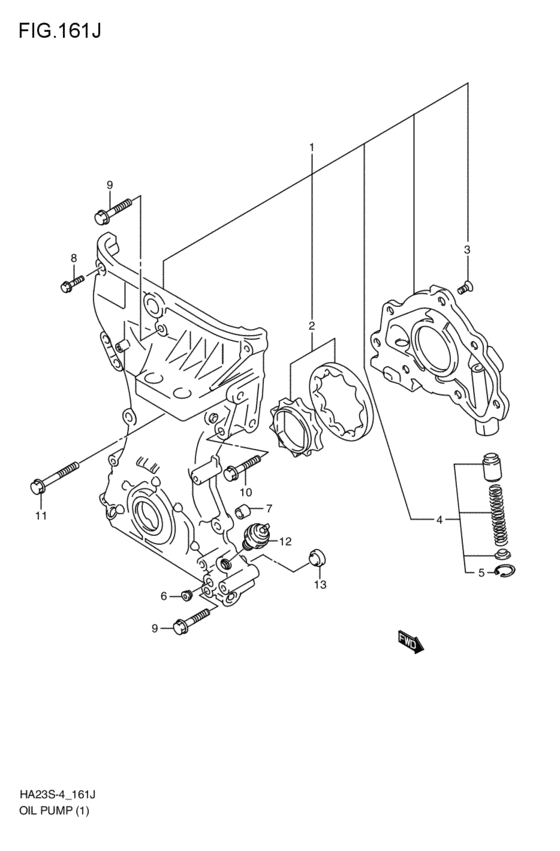

Oil pump (LB:MT; 2002-04-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- LB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- BD
- number of the gears
- 5MT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-84G00-000
ポンプアッシ,オイル
LB:MT; 2002-04-01~2004-07-01 |
16100-84G00-000 |
— | ||
|
2
|
2
16130-78810-000 ROTOR SET,OIL PUMPLB:MT; 2002-04-01~2004-07-01 |
16130-78810-000 |
US $62.93 |
||
|
3
|
3
02122-06163-000
Screw
LB:MT; 2002-04-01~2004-07-01 |
02122-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
02122-0616B-000 SCREWScrew, intake pipe LB:MT; 2002-04-01~2004-07-01 |
02122-0616B-000 |
from US $0.80 |
||
|
3
|
3
02122-0616A-000 SCREWLB:MT; 2002-04-01~2004-07-01 |
02122-0616A-000 |
from US $0.76 |
||
|
4
|
4
16150-60A10-000
Valve set, oil pump relief
LB:MT; 2002-04-01~2004-07-01 |
16150-60A10-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEFLB:MT; 2002-04-01~2004-07-01 |
16150-60A20-000 |
from US $4.48 |
||
|
5
|
5
08331-41156-000
Circlip
LB:MT; 2002-04-01~2004-07-01 |
08331-41156-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-4115A-000 CIRCLIPLB:MT; 2002-04-01~2004-07-01 |
08331-4115A-000 |
US $1.76 |
||
|
6
|
6
09246-05006-000 PLUG(1/8PT,H:5.5)LB:MT; 2002-04-01~2004-07-01 |
09246-05006-000 |
from US $1.76 |
||
|
7
|
7
04211-09109-000 PINKnock pin LB:MT; 2002-04-01~2004-07-01 |
04211-09109-000 |
from US $0.96 |
||
|
8
|
8
01550-06303-000
Bolt (6x30)
LB:MT; 2002-04-01~2004-07-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0630A-000 BoltLB:MT; 2002-04-01~2004-07-01 |
01550-0630A-000 |
from US $1.12 |
||
|
9
|
9
01550-06503-000
Bolt
LB:MT; 2002-04-01~2004-07-01 |
01550-06503-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0650B-000 BoltLB:MT; 2002-04-01~2004-07-01 |
01550-0650B-000 |
US $15.50 |
||
|
9
|
9
01550-0650A-000 BoltBolt (6x50) LB:MT; 2002-04-01~2004-07-01 |
01550-0650A-000 |
from US $0.96 |
||
|
10
|
10
01550-08403-000
Bolt
LB:MT; 2002-04-01~2004-07-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0840B-000 BoltLB:MT; 2002-04-01~2004-07-01 |
01550-0840B-000 |
from US $1.12 |
||
|
10
|
10
01550-0840A-000 BoltLB:MT; 2002-04-01~2004-07-01 |
01550-0840A-000 |
from US $1.12 |
||
|
11
|
11
09103-08388-000 BOLT(8X40)Bolt, rr final gr case LB:MT; 2002-04-01~2004-07-01 |
09103-08388-000 |
US $16.90 |
||
|
12
|
12
37820-80G01-000
Switch assy,oil press
LB:MT; 2003-08-01~2004-07-01 |
37820-80G01-000 |
— | ||
| replacement | |||||
|
12
|
12
37820-80GP0-000 SWITCH ASSY,OIL PRESSURELB:MT; 2003-08-01~2004-07-01 |
37820-80GP0-000 |
from US $12.24 |
||
|
12
|
12
37820-82002-000
Switch assy,oil press
LB:MT; 2002-04-01~2003-08-01 |
37820-82002-000 |
— | ||
| replacement | |||||
|
12
|
12
37820-820P0-000 SWITCH ASSY,OIL PRESSURELB:MT; 2002-04-01~2003-08-01 |
37820-820P0-000 |
from US $12.67 |
||
|
13
|
13
16210-73H00-000
フィルタ,オイルギャラリ
LB:MT; 2002-04-01~2004-07-01 |
16210-73H00-000 |
— | ||
| replacement | |||||
|
13
|
13
16210-73H01-000 FILTER,OIL GALLERYLB:MT; 2002-04-01~2004-07-01 |
16210-73H01-000 |
from US $7.45 |
||
