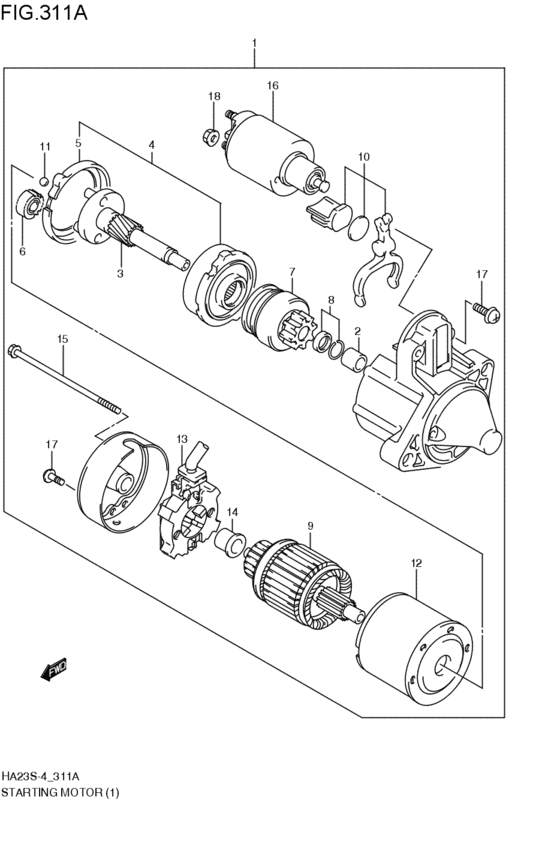

starting motor (LB:MT; LB:MT; 2002-04-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- LB
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- BD
- number of the gears
- 5MT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-84G00-000
モータアッシ,スターティング
LB:MT; 2002-04-01~2004-07-01 |
31100-84G00-000 |
— | ||
|
2
|
2
31152-70B30-000 BUSHINGLB:MT; 2002-04-01~2004-07-01 |
31152-70B30-000 |
from US $27.97 |
||
|
3
|
3
31341-75F10-000 SHAFT,GEARLB:MT; 2002-04-01~2004-07-01 |
31341-75F10-000 |
US $255.76 |
||
|
4
|
4
31343-80G00-000 INTERNAL GEARLB:MT; 2002-04-01~2004-07-01 |
31343-80G00-000 |
US $94.40 |
||
|
5
|
5
31345-80G00-000 PACKINGLB:MT; 2002-04-01~2004-07-01 |
31345-80G00-000 |
from US $3.38 |
||
|
6
|
6
31344-86030-000 GEAR,PLNTYLB:MT; 2002-04-01~2004-07-01 |
31344-86030-000 |
from US $18.09 |
||
|
7
|
7
31320-84G00-000
クラッチアッシ
LB:MT; 2002-04-01~2004-07-01 |
31320-84G00-000 |
— | ||
|
8
|
8
31313-86030-000 STOPPER SETLB:MT; 2002-04-01~2004-07-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
8
|
8
31314-86030-000 Stopper SetLB:MT; 2002-04-01~2004-07-01 |
31314-86030-000 |
from US $11.50 |
||
|
9
|
9
31311-75F10-000 ARMATURELB:MT; 2002-04-01~2004-07-01 |
31311-75F10-000 |
US $356.96 |
||
|
10
|
10
31191-75F10-000 LEVER ASSYLB:MT; 2002-04-01~2004-07-01 |
31191-75F10-000 |
from US $8.64 |
||
|
11
|
11
31193-86030-000 BALLLB:MT; 2002-04-01~2004-07-01 |
31193-86030-000 |
from US $0.83 |
||
|
12
|
12
31110-75F10-000
YOKE ASSY
LB:MT; 2002-04-01~2004-07-01 |
31110-75F10-000 |
— | ||
|
13
|
13
31173-84G00-000
ホルダアッシ,ブラシ
LB:MT; 2002-04-01~2004-07-01 |
31173-84G00-000 |
— | ||
|
14
|
14
31172-64B60-000 BEARING,REARLB:MT; 2002-04-01~2004-07-01 |
31172-64B60-000 |
from US $8.21 |
||
|
15
|
15
31261-75F10-000 BoltLB:MT; 2002-04-01~2004-07-01 |
31261-75F10-000 |
from US $4.21 |
||
|
16
|
16
31220-84G00-000
スイッチアッシ
LB:MT; 2002-04-01~2004-07-01 |
31220-84G00-000 |
— | ||
|
17
|
17
31136-79030-000 SCREW ASSYLB:MT; 2002-04-01~2004-07-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw SetLB:MT; 2002-04-01~2004-07-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
08316-10083-000
Nut
LB:MT; 2002-04-01~2004-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTLB:MT; 2002-04-01~2004-07-01 |
08316-1008B-000 |
from US $0.76 |
||
