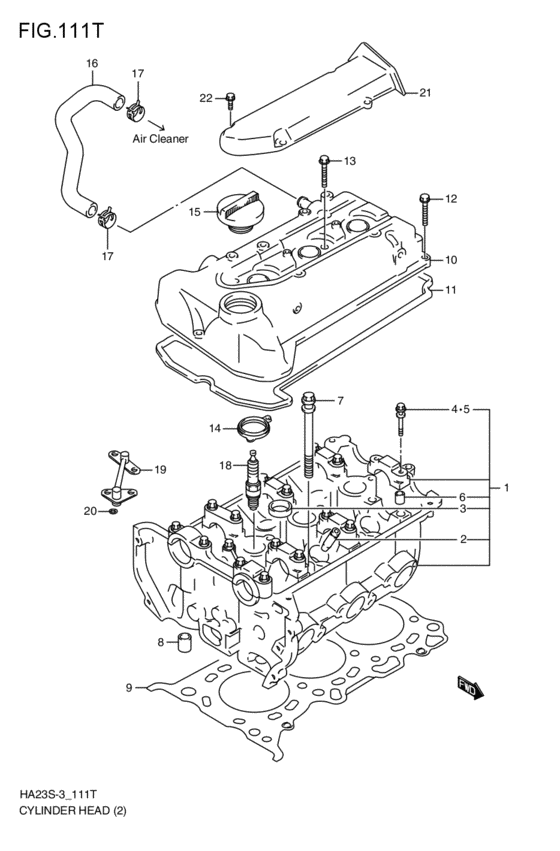

Cylinder head (BM; 2000-11-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- BM
- number of the gears
- 4AT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-83G30-000
ヘッドアッシ,シリンダ
BM; 2000-11-01~2001-10-01 |
11100-83G30-000 |
— | ||
| replacements | |||||
|
1
|
1
11100-58J32-000
New Genuine Part
BM; 2000-11-01~2001-10-01 |
11100-58J32-000 |
— | ||
|
1
|
1
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36BM; 2000-11-01~2001-10-01 |
11128-73G60-000 |
US $1.52 |
||
|
1
|
1
11150-78G71-000 PIPE,CYLINDER HEAD OILBM; 2000-11-01~2001-10-01 |
11150-78G71-000 |
US $33.49 |
||
|
1
|
1
11100-83G32-000
ヘッドアッシ,シリンダ
BM; 2001-10-01~2004-07-01 |
11100-83G32-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-58J32-000
New Genuine Part
BM; 2001-10-01~2004-07-01 |
11100-58J32-000 |
— | ||
|
2
|
2
11115-73G00-001
Guide, valve
BM; 2000-11-01~2004-07-01 |
11115-73G00-001 |
— | ||
| replacement | |||||
|
2
|
2
11115-73G01-001 GUIDE,VALVEBM; 2000-11-01~2004-07-01 |
11115-73G01-001 |
from US $13.38 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil BM; 2000-11-01~2004-07-01 |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36BM; 2000-11-01~2004-07-01 |
11128-73G60-000 |
US $1.52 |
||
|
5
|
5
11128-78G70-000 BOLT,CAMSHAFT HOUSING 6X42BM; 2000-11-01~2004-07-01 |
11128-78G70-000 |
US $2.43 |
||
|
6
|
6
09206-08001-000 PIN(8X11)BM; 2000-11-01~2004-07-01 |
09206-08001-000 |
from US $1.53 |
||
|
7
|
7
11117-73G00-000 BOLT,CYLINDER HEADBM; 2000-11-01~2004-07-01 |
11117-73G00-000 |
from US $4.80 |
||
|
8
|
8
09206-13020-000 PIN(10.4X13X18)BM; 2000-11-01~2004-07-01 |
09206-13020-000 |
from US $1.22 |
||
|
9
|
9
11141-73G00-000
Gasket, cylinder head
BM; 2000-11-01~2004-07-01 |
11141-73G00-000 |
— | ||
| replacement | |||||
|
9
|
9
11141-73G03-000 GASKET,CYL HEADBM; 2000-11-01~2004-07-01 |
11141-73G03-000 |
from US $77.99 |
||
|
10
|
10
11170-78G74-000
カバー,シリンダヘッド
BM; 2000-11-01~2004-07-01 |
11170-78G74-000 |
— | ||
| replacement | |||||
|
10
|
10
11170-78G75-000
カバー,シリンダヘッド
BM; 2000-11-01~2004-07-01 |
11170-78G75-000 |
— | ||
|
11
|
11
11189-78G71-000 GASKET,CYL HEAD COVERBM; 2000-11-01~2004-07-01 |
11189-78G71-000 |
US $60.80 |
||
|
12
|
12
01547-06253-000
Bolt
BM; 2000-11-01~2004-07-01 |
01547-06253-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0625B-000 BoltBM; 2000-11-01~2004-07-01 |
01547-0625B-000 |
from US $0.91 |
||
|
13
|
13
01547-06553-000
Bolt
BM; 2000-11-01~2004-07-01 |
01547-06553-000 |
— | ||
| replacement | |||||
|
13
|
13
01547-0655B-000 BoltBM; 2000-11-01~2004-07-01 |
01547-0655B-000 |
from US $1.91 |
||
|
14
|
14
11179-73G00-000 GASKET,SPARK PLUG HOLEGasket, spark plug hole BM; 2000-11-01~2004-07-01 |
11179-73G00-000 |
from US $10.94 |
||
|
15
|
15
16920-69G10-000
CAP COMP OIL FILLER
BM; 2000-11-01~2004-07-01 |
16920-69G10-000 |
— | ||
| replacements | |||||
|
15
|
15
16920-83G00-000
Cap,oil filler
BM; 2000-11-01~2004-07-01 |
16920-83G00-000 |
— | ||
|
15
|
15
16920-83G01-000 CAP OIL FILLERBM; 2000-11-01~2004-07-01 |
16920-83G01-000 |
US $10.22 |
||
|
16
|
16
11191-83G00-000 HOSE,BREATHERBM; 2000-11-01~2004-07-01 |
11191-83G00-000 |
US $13.03 |
||
|
17
|
17
09401-18404-000 CLIPBM; 2000-11-01~2004-07-01 |
09401-18404-000 |
from US $1.26 |
||
|
18
|
18
09482-00448-000 PLUG,SPARK(NGK DCPR7E)NGK; BM; 2000-11-01~2004-07-01 |
09482-00448-000 |
from US $7.85 |
||
|
18
|
18
09482-00449-000 PLUG,SPARK(XU22EPR-U)DENSO; BM; 2000-11-01~2004-07-01 |
09482-00449-000 |
US $11.41 |
||
|
19
|
19
11150-78G71-000 PIPE,CYLINDER HEAD OILBM; 2000-11-01~2004-07-01 |
11150-78G71-000 |
US $33.49 |
||
|
20
|
20
11157-78G70-000 O-RING,OIL PIPEBM; 2000-11-01~2004-07-01 |
11157-78G70-000 |
from US $2.06 |
||
|
21
|
21
11180-78G00-000
Cover, cylinder head upper
BM; 2000-11-01~2004-07-01 |
11180-78G00-000 |
— | ||
| replacement | |||||
|
21
|
21
11180-80HA0-000 COVER,CYL HEAD UPPERBM; 2000-11-01~2004-07-01 |
11180-80HA0-000 |
US $36.80 |
||
|
22
|
22
09103-06232-000 BOLT(6X16)BM; 2000-11-01~2004-07-01 |
09103-06232-000 |
from US $0.47 |
||
