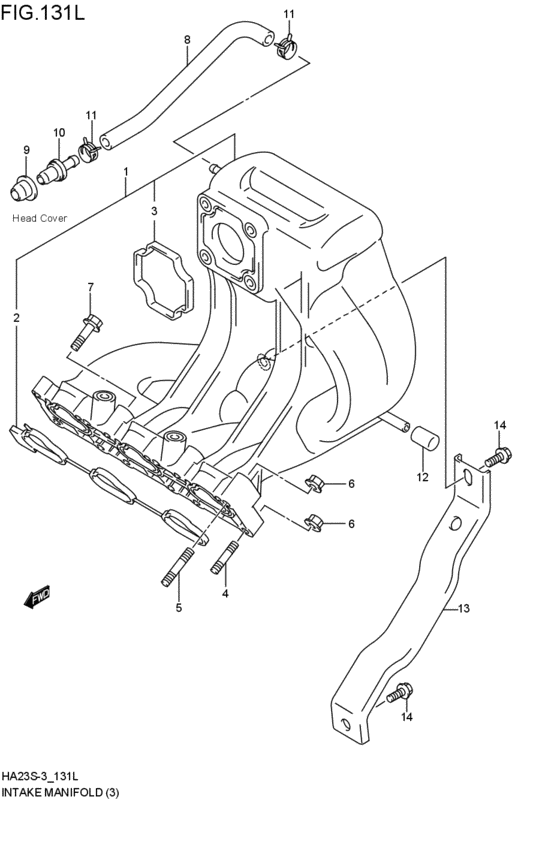

intake manifold (EPI:BM; 2000-11-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- BM
- number of the gears
- 4AT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-83G00-000
マニホールド,インテーク
EPI:BM; 2000-11-01~2001-10-01 |
13110-83G00-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-0816B-000 BoltEPI:BM; 2000-11-01~2001-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
1
|
1
13110-83G01-000
マニホールド,インテーク
EPI:BM; 2000-11-01~2001-10-01 |
13110-83G01-000 |
— | ||
|
1
|
1
13163-73H01-000
スチフナ,インテークマニホールド,NO.3
EPI:BM; 2000-11-01~2001-10-01 |
13163-73H01-000 |
— | ||
|
1
|
1
01550-0816A-000 BoltBolt, rear EPI:BM; 2000-11-01~2001-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
1
|
1
01550-08163-000
Bolt, holder
EPI:BM; 2000-11-01~2001-10-01 |
01550-08163-000 |
— | ||
|
1
|
1
13110-83G01-000
マニホールド,インテーク
EPI:BM; 2001-10-01~2004-07-01 |
13110-83G01-000 |
— | ||
|
2
|
2
13119-83G00-000 GASKET,INTK MANFEPI:BM; 2000-11-01~2004-07-01 |
13119-83G00-000 |
from US $15.44 |
||
|
3
|
3
13421-83G00-000 GASKET,THROTTLE BODYEPI:BM; 2000-11-01~2004-07-01 |
13421-83G00-000 |
from US $8.60 |
||
|
4
|
4
01411-06253-000
Bolt, stud
EPI:BM; 2000-11-01~2004-07-01 |
01411-06253-000 |
— | ||
| replacement | |||||
|
4
|
4
01411-0625A-000 BOLT,STUDEPI:BM; 2000-11-01~2004-07-01 |
01411-0625A-000 |
from US $0.68 |
||
|
5
|
5
01411-06353-000
Stud bolt
EPI:BM; 2000-11-01~2004-07-01 |
01411-06353-000 |
— | ||
| replacement | |||||
|
5
|
5
01411-0635A-000 BOLT,STUDEPI:BM; 2000-11-01~2004-07-01 |
01411-0635A-000 |
US $9.90 |
||
|
6
|
6
08316-10063-000
Nut
EPI:BM; 2000-11-01~2004-07-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUTEPI:BM; 2000-11-01~2004-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
01550-06353-000
Bolt
EPI:BM; 2000-11-01~2004-07-01 |
01550-06353-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0635B-000 BoltEPI:BM; 2000-11-01~2004-07-01 |
01550-0635B-000 |
from US $0.91 |
||
|
7
|
7
01550-0635A-000 BoltEPI:BM; 2000-11-01~2004-07-01 |
01550-0635A-000 |
from US $0.96 |
||
|
8
|
8
11192-78G11-000
ホース,PCV
EPI:BM; 2000-11-01~2004-07-01 |
11192-78G11-000 |
— | ||
|
9
|
9
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve EPI:BM; 2000-11-01~2004-07-01 |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
9
|
9
11198-98L00-000 Seal,pcv ValveEPI:BM; 2000-11-01~2004-07-01 |
11198-98L00-000 |
from US $2.74 |
||
|
10
|
10
18118-73G10-000 VALVE,PCVEPI:BM; 2000-11-01~2004-07-01 |
18118-73G10-000 |
US $39.20 |
||
|
11
|
11
09401-13417-000 CLIPEPI:BM; 2000-11-01~2004-07-01 |
09401-13417-000 |
from US $0.79 |
||
|
12
|
12
09250-04003-000 PLUG(OD:8)Plug (od:8) EPI:BM; 2000-11-01~2004-07-01 |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
12
|
12
07130-0510B-000 BoltBolt, sensor EPI:BM; 2000-11-01~2004-07-01 |
07130-0510B-000 |
from US $0.96 |
||
|
13
|
13
13163-73H00-000
スチフナ,インテークマニホールド,NO.3
EPI:BM; 2001-10-01~2004-07-01 |
13163-73H00-000 |
— | ||
| replacement | |||||
|
13
|
13
13163-73H01-000
スチフナ,インテークマニホールド,NO.3
EPI:BM; 2001-10-01~2004-07-01 |
13163-73H01-000 |
— | ||
|
14
|
14
01550-08163-000
Bolt, holder
EPI:BM; 2001-10-01~2004-07-01 |
01550-08163-000 |
— | ||
