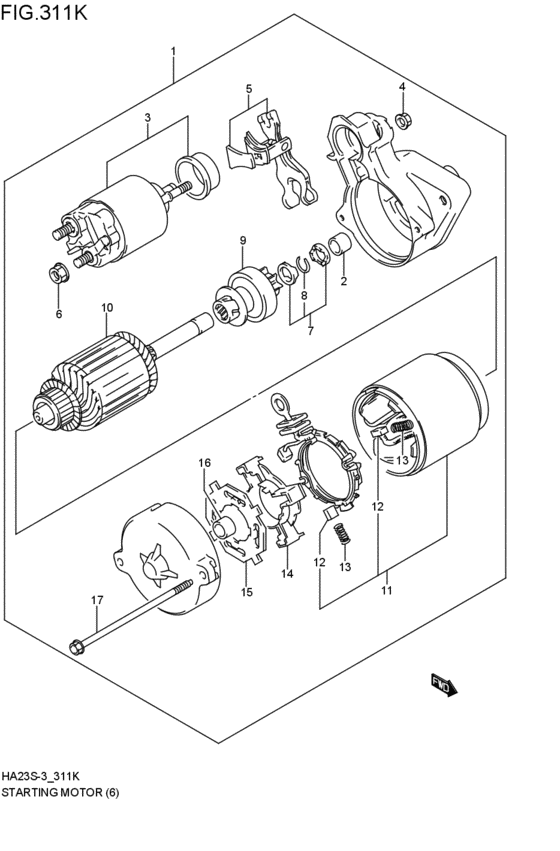

starting motor (DENSO; EPI:BM; 2000-11-01~2004-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- supercharge
- EPI
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- BM
- number of the gears
- 4AT
- body
- HA23S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-76G10-000 MOTOR ASSY,STARTINGDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31100-76G10-000 |
US $668.80 |
||
|
2
|
2
31152-52A50-000 BEARINGDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31152-52A50-000 |
from US $15.50 |
||
|
3
|
3
31220-51A10-000 SWITCH ASSYDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31220-51A10-000 |
from US $99.16 |
||
|
4
|
4
08316-10063-000
Nut
DENSO; EPI:BM; 2000-11-01~2004-07-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUTDENSO; EPI:BM; 2000-11-01~2004-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
31191-85020-000 LEVER ASSYDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31191-85020-000 |
from US $9.27 |
||
|
6
|
6
08316-10083-000
Nut
DENSO; EPI:BM; 2000-11-01~2004-07-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTDENSO; EPI:BM; 2000-11-01~2004-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
31310-51A10-000 NUT,PINION STOPDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31310-51A10-000 |
from US $11.18 |
||
|
8
|
8
31312-51A10-000 RING,SNAPDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31312-51A10-000 |
from US $1.71 |
||
|
9
|
9
31320-70B20-000 CLUTCH ASSYDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31320-70B20-000 |
US $109.30 |
||
|
10
|
10
31311-80110-000 ARMATUREDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31311-80110-000 |
US $303.60 |
||
|
11
|
11
31110-77A00-000 YOKE ASSYDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31110-77A00-000 |
from US $143.87 |
||
|
12
|
12
31131-51A10-000 BRUSHDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31131-51A10-000 |
from US $5.36 |
||
|
13
|
13
31135-51A10-000 SPRING,BRUSHDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31135-51A10-000 |
from US $1.58 |
||
|
14
|
14
31173-51A10-000 HOLDER,BRUSHDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31173-51A10-000 |
from US $21.89 |
||
|
15
|
15
31175-51A10-000 INSULATORDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31175-51A10-000 |
from US $1.46 |
||
|
16
|
16
31172-51A10-000 BUSHDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31172-51A10-000 |
from US $2.41 |
||
|
17
|
17
31281-51A10-000 BoltDENSO; EPI:BM; 2000-11-01~2004-07-01 |
31281-51A10-000 |
from US $2.57 |
||
