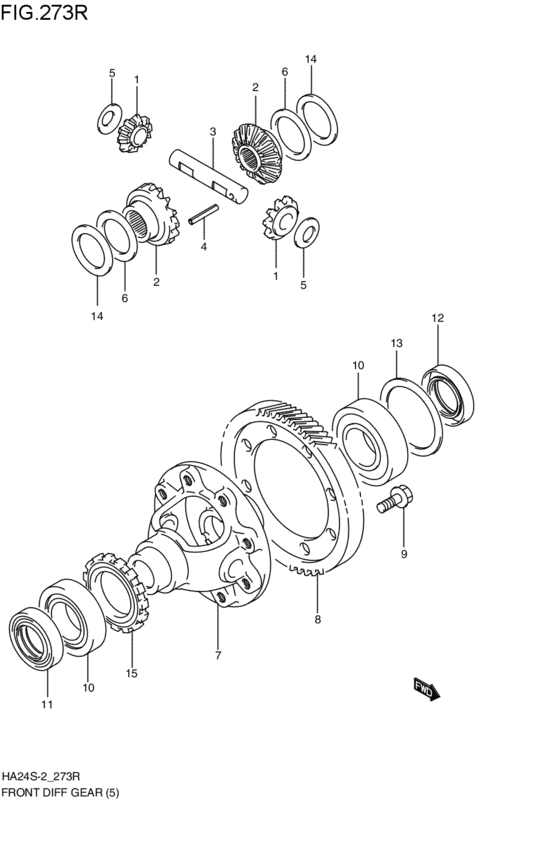

フロントデファレンシャルギヤ (2WD:4AT; 2005-11-01~2007-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- XP
- number of the gears
- 4AT
- body
- HA24S
- abs
- ABS
- 寒冷地
- COLD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL2WD:4AT; 2005-11-01~2007-01-01 |
27331-78FJ1-000 |
from US $25.36 |
||
|
2
|
2
27341-82001-000
Gear,differential
2WD:4AT; 2005-11-01~2007-01-01 |
27341-82001-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-76G12-000 GEAR,DIFF2WD:4AT; 2005-11-01~2007-01-01 |
27341-76G12-000 |
from US $56.72 |
||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION2WD:4AT; 2005-11-01~2007-01-01 |
27351-62B00-000 |
from US $13.32 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36)2WD:4AT; 2005-11-01~2007-01-01 |
09205-05007-000 |
from US $1.04 |
||
|
5
|
5
09164-15003-000 WASHER2WD:4AT; 2005-11-01~2007-01-01 |
09164-15003-000 |
from US $1.55 |
||
|
6
|
6
09160-35002-000 WASHER(35X46X1)2WD:4AT; 2005-11-01~2007-01-01 |
09160-35002-000 |
from US $1.53 |
||
|
6
|
6
09160-35003-000 WASHER(35X46X1.1)2WD:4AT; 2005-11-01~2007-01-01 |
09160-35003-000 |
from US $1.89 |
||
|
6
|
6
09160-35004-000 WASHER(35X46X1.2)2WD:4AT; 2005-11-01~2007-01-01 |
09160-35004-000 |
from US $1.94 |
||
|
6
|
6
09160-35006-000 WASHER(35X46X0.9)2WD:4AT; 2005-11-01~2007-01-01 |
09160-35006-000 |
from US $1.73 |
||
|
6
|
6
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 2WD:4AT; 2005-11-01~2007-01-01 |
09160-35008-000 |
from US $4.19 |
||
|
6
|
6
09160-35009-000 WASHER(35X46X1.05)2WD:4AT; 2005-11-01~2007-01-01 |
09160-35009-000 |
from US $4.19 |
||
|
6
|
6
09160-35010-000 WASHER(35X46X1.15)2WD:4AT; 2005-11-01~2007-01-01 |
09160-35010-000 |
from US $4.19 |
||
|
7
|
7
27411-78G11-000 CASE,DIFF2WD:4AT; 2005-11-01~2007-01-01 |
27411-78G11-000 |
US $173.70 |
||
|
8
|
8
27511-78G70-000
GEAR,FINAL
2WD:4AT; 2005-11-01~2007-01-01 |
27511-78G70-000 |
— | ||
|
9
|
9
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 2WD:4AT; 2005-11-01~2007-01-01 |
09103-10189-000 |
from US $2.56 |
||
|
10
|
10
09262-35058-000 BEARING(35X72X17)2WD:4AT; 2005-11-01~2007-01-01 |
09262-35058-000 |
from US $18.40 |
||
|
11
|
11
27431-73H10-000 SEAL,OIL2WD:4AT; 2005-11-01~2007-01-01 |
27431-73H10-000 |
from US $11.88 |
||
|
12
|
12
27431-73H30-000 SEAL,OIL2WD:4AT; 2005-11-01~2007-01-01 |
27431-73H30-000 |
from US $12.38 |
||
|
13
|
13
27441-56E00-040 SHIM,DIFF SIDE2WD:4AT; 2005-11-01~2007-01-01 |
27441-56E00-040 |
from US $4.14 |
||
|
13
|
13
27441-56E00-050 SHIM,DIFF SIDE2WD:4AT; 2005-11-01~2007-01-01 |
27441-56E00-050 |
from US $4.14 |
||
|
13
|
13
27441-56E00-060 SHIM,DIFF SIDE2WD:4AT; 2005-11-01~2007-01-01 |
27441-56E00-060 |
from US $4.14 |
||
|
13
|
13
27441-56E00-070 SHIM,DIFF SIDE2WD:4AT; 2005-11-01~2007-01-01 |
27441-56E00-070 |
from US $4.14 |
||
|
14
|
14
27361-62B00-000 WASHER,DIFF SIDE NO.22WD:4AT; 2005-11-01~2007-01-01 |
27361-62B00-000 |
from US $11.44 |
||
|
15
|
15
26121-76G10-000 RING,EXCITER T:8 ID:452WD:4AT; 2005-11-01~2007-01-01 |
26121-76G10-000 |
from US $15.48 |
||
