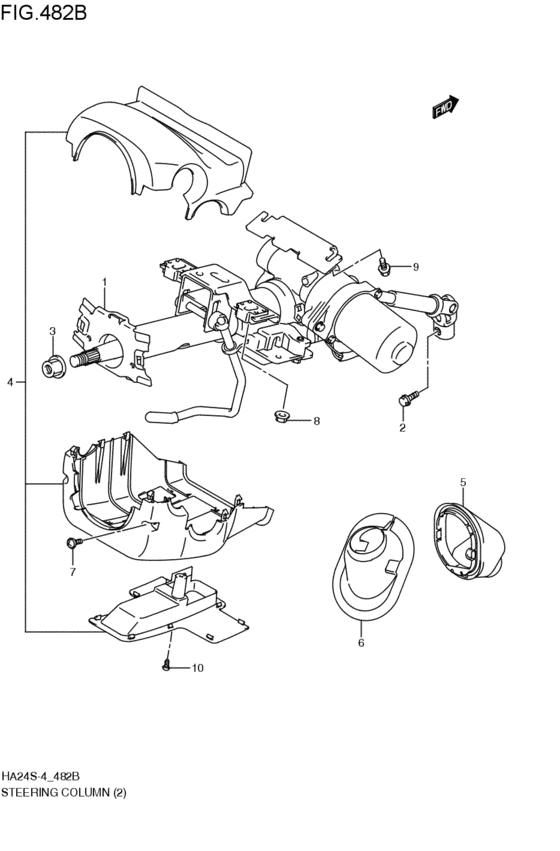

steering column (X; 2008-05-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- X
- number of the gears
- 4AT
- body
- HA24S
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-66K70-000
コラムアッシ,コラプシブルステアリング
X; 2008-05-01~ |
48200-66K70-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-66K71-000
New Genuine Part
X; 2008-05-01~ |
48200-66K71-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30)X; 2008-05-01~ |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
08316-1012A-000 NUTX; 2008-05-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-72J10-R8H
カバーアッシ,ステアリングコラム(ベージュ)
X; 2008-05-01~ |
48400-72J10-R8H |
— | ||
|
5
|
5
48480-58J00-000
カバーアッシ,ステアリングジョイント
X; 2008-05-01~ |
48480-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
48480-58J10-000 COVER ASSY,STRG JOINTX; 2008-05-01~ |
48480-58J10-000 |
US $45.63 |
||
|
6
|
6
48481-72J00-000 COVER,STRG JOINT,UPPERX; 2008-05-01~ |
48481-72J00-000 |
US $7.62 |
||
|
7
|
7
09136-05030-000 SCREW(5X12)X; 2008-05-01~ |
09136-05030-000 |
from US $0.52 |
||
|
8
|
8
09159-08135-000 NUTX; 2008-05-01~ |
09159-08135-000 |
from US $0.74 |
||
|
9
|
9
01551-0825A-000 BoltX; 2008-05-01~ |
01551-0825A-000 |
from US $1.12 |
||
|
10
|
10
03211-0512A-000 SCREWX; 2008-05-01~ |
03211-0512A-000 |
from US $0.45 |
||
