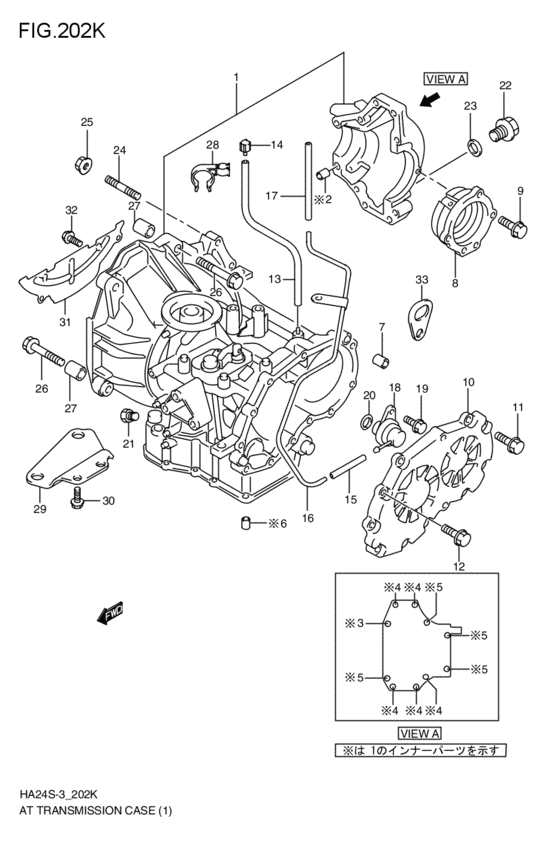

at - transmission case (3AT; 2006-12-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- VP
- number of the gears
- 3AT
- body
- HA24V
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-72J10-000
ケースアッシ,トランスミッション
3AT; 2006-12-01~ |
24700-72J10-000 |
— | ||
|
2
|
2
04211-13149-000 PIN3AT; 2006-12-01~ |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
24743-76G11-000
BOLT,T/M BOTTOM CASE N0.1
3AT; 2006-12-01~ |
24743-76G11-000 |
— | ||
| replacement | |||||
|
3
|
3
24743-76G12-000
Bolt,t/m Bottom Case No.1
3AT; 2006-12-01~ |
24743-76G12-000 |
— | ||
|
4
|
4
01550-0840A-000 BOLT3AT; 2006-12-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
01550-1050A-000 BOLTBolt, exhaust tube 3AT; 2006-12-01~ |
01550-1050A-000 |
from US $1.28 |
||
|
6
|
6
09202-06035-000 PIN3AT; 2006-12-01~ |
09202-06035-000 |
US $37.20 |
||
|
7
|
7
04211-13149-000 PIN3AT; 2006-12-01~ |
04211-13149-000 |
from US $1.28 |
||
|
8
|
8
24721-76G10-000 HOUSING,SIDE BEARING3AT; 2006-12-01~ |
24721-76G10-000 |
US $131.38 |
||
|
9
|
9
24722-72J10-000
BOLT,SIDE BRG HSG
3AT; 2006-12-01~ |
24722-72J10-000 |
— | ||
| replacement | |||||
|
9
|
9
24722-72J11-000
Bolt,side Brg Hsg
3AT; 2006-12-01~ |
24722-72J11-000 |
— | ||
|
10
|
10
24731-76G10-000 COVER,T/M RR3AT; 2006-12-01~ |
24731-76G10-000 |
US $172.96 |
||
|
11
|
11
01550-0825A-000 BOLT3AT; 2006-12-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
24722-72J10-000
BOLT,SIDE BRG HSG
3AT; 2006-12-01~ |
24722-72J10-000 |
— | ||
| replacement | |||||
|
12
|
12
24722-72J11-000
Bolt,side Brg Hsg
3AT; 2006-12-01~ |
24722-72J11-000 |
— | ||
|
13
|
13
24825-72J30-000
ホース,ブリーザ
3AT; 2006-12-01~ |
24825-72J30-000 |
— | ||
|
14
|
14
27991-78G10-000 PLUG,BREATHER HOSE3AT; 2006-12-01~ |
27991-78G10-000 |
US $1.77 |
||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:601>80; 3AT; 2006-12-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:601>80; 3AT; 2006-12-01~ |
09355-35006-601 |
from US $5.74 |
||
|
16
|
16
24898-72J11-000
パイプ,バキューム
3AT; 2006-12-01~ |
24898-72J11-000 |
— | ||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:601>250; 3AT; 2006-12-01~ |
09355-35754-601 |
— | ||
| replacement | |||||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:601>250; 3AT; 2006-12-01~ |
09355-35006-601 |
from US $5.74 |
||
|
18
|
18
24781-71B80-000 DIAPHRAGM,VACUUM3AT; 2006-12-01~ |
24781-71B80-000 |
US $78.75 |
||
|
19
|
19
01550-0612A-000 BOLT3AT; 2006-12-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
26584-84G10-000 O-RING,VACUUM DIAPHRAGM3AT; 2006-12-01~ |
26584-84G10-000 |
US $3.72 |
||
|
21
|
21
24822-58E00-000
PLUG,BOOSTER
3AT; 2006-12-01~ |
24822-58E00-000 |
— | ||
| replacement | |||||
|
21
|
21
24822-58E01-000 Plug,booster3AT; 2006-12-01~ |
24822-58E01-000 |
US $5 |
||
|
22
|
22
09247-14044-000 DRAIN PLUG (M14x1.5)3AT; 2006-12-01~ |
09247-14044-000 |
from US $1.31 |
||
|
23
|
23
24824-71B71-000 GASKET,18X24X23AT; 2006-12-01~ |
24824-71B71-000 |
US $1.52 |
||
|
24
|
24
01421-1035A-000 BOLT,STUD3AT; 2006-12-01~ |
01421-1035A-000 |
from US $4.13 |
||
|
25
|
25
08316-1010A-000 NUTNut, kick starter 3AT; 2006-12-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
26
|
26
01550-1055A-000 BOLT3AT; 2006-12-01~ |
01550-1055A-000 |
from US $5.88 |
||
|
27
|
27
04211-13149-000 PIN3AT; 2006-12-01~ |
04211-13149-000 |
from US $1.28 |
||
|
28
|
28
24895-66K10-000
クランプ,ブリーザホース
3AT; 2006-12-01~ |
24895-66K10-000 |
— | ||
|
29
|
29
24791-72J10-000
スチフナ,エンジン/トランスミッション
3AT; 2006-12-01~ |
24791-72J10-000 |
— | ||
|
30
|
30
01550-1025C-000 Bolt3AT; 2006-12-01~ |
01550-1025C-000 |
US $17.70 |
||
|
31
|
31
24793-65KF0-000
プレート,クラッチハウジングロア
3AT; 2006-12-01~ |
24793-65KF0-000 |
— | ||
|
32
|
32
02162-0610A-000 SCREW3AT; 2006-12-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
33
|
33
11851-72B21-000 HOOK,ENGINE3AT; 2006-12-01~ |
11851-72B21-000 |
US $2.80 |
||
