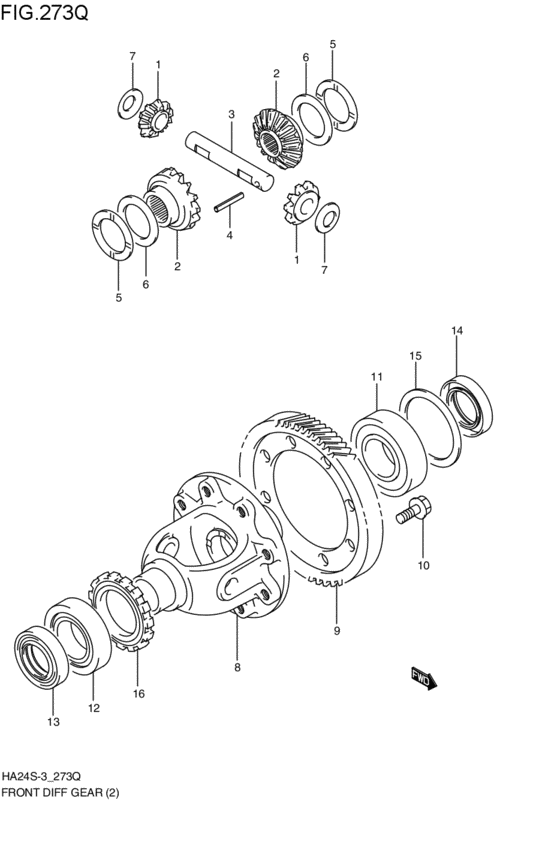

フロントデファレンシャルギヤ (2WD:3AT; 2006-12-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2006 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- grade
- VP
- number of the gears
- 3AT
- body
- HA24V
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL2WD:3AT; 2006-12-01~ |
27331-78FJ1-000 |
from US $25.36 |
||
|
2
|
2
27341-82001-000
Gear,differential
2WD:3AT; 2006-12-01~ |
27341-82001-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-76G12-000 GEAR,DIFF2WD:3AT; 2006-12-01~ |
27341-76G12-000 |
US $64.77 |
||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION2WD:3AT; 2006-12-01~ |
27351-62B00-000 |
from US $13.32 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36)2WD:3AT; 2006-12-01~ |
09205-05007-000 |
US $1.76 |
||
|
5
|
5
27361-62B00-000 WASHER,DIFF SIDE NO.22WD:3AT; 2006-12-01~ |
27361-62B00-000 |
US $11.44 |
||
|
6
|
6
09160-35002-000 WASHER(35X46X1)2WD:3AT; 2006-12-01~ |
09160-35002-000 |
from US $1.40 |
||
|
6
|
6
09160-35003-000 WASHER(35X46X1.1)2WD:3AT; 2006-12-01~ |
09160-35003-000 |
from US $1.89 |
||
|
6
|
6
09160-35004-000 WASHER(35X46X1.2)2WD:3AT; 2006-12-01~ |
09160-35004-000 |
from US $1.78 |
||
|
6
|
6
09160-35006-000 WASHER(35X46X0.9)2WD:3AT; 2006-12-01~ |
09160-35006-000 |
from US $1.60 |
||
|
6
|
6
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 2WD:3AT; 2006-12-01~ |
09160-35008-000 |
from US $6.70 |
||
|
6
|
6
09160-35009-000 WASHER(35X46X1.05)2WD:3AT; 2006-12-01~ |
09160-35009-000 |
from US $6.70 |
||
|
6
|
6
09160-35010-000 WASHER(35X46X1.15)2WD:3AT; 2006-12-01~ |
09160-35010-000 |
from US $6.49 |
||
|
7
|
7
09164-15003-000 WASHER2WD:3AT; 2006-12-01~ |
09164-15003-000 |
from US $0.90 |
||
|
8
|
8
27411-76G10-000
CASE,DIFF
2WD:3AT; 2006-12-01~ |
27411-76G10-000 |
— | ||
|
9
|
9
27511-76G10-000
GEAR,FINAL
2WD:3AT:HA24V; 2006-12-01~ |
27511-76G10-000 |
— | ||
|
10
|
10
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 2WD:3AT; 2006-12-01~ |
09103-10189-000 |
from US $2.40 |
||
|
11
|
11
09262-35058-000 BEARING(35X72X17)2WD:3AT; 2006-12-01~ |
09262-35058-000 |
from US $18.40 |
||
|
12
|
12
09262-35061-000 BEARING(35X62X14)2WD:3AT; 2006-12-01~ |
09262-35061-000 |
US $31.17 |
||
|
13
|
13
27431-73H10-000 SEAL,OIL2WD:3AT; 2006-12-01~ |
27431-73H10-000 |
from US $10.87 |
||
|
14
|
14
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil 2WD:3AT; 2006-12-01~ |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
14
|
14
27431-73H30-000 SEAL,OIL2WD:3AT; 2006-12-01~ |
27431-73H30-000 |
from US $12.94 |
||
|
15
|
15
27441-56E00-040 SHIM,DIFF SIDE2WD:3AT; 2006-12-01~ |
27441-56E00-040 |
US $5.30 |
||
|
15
|
15
27441-56E00-050 SHIM,DIFF SIDE2WD:3AT; 2006-12-01~ |
27441-56E00-050 |
US $5.30 |
||
|
15
|
15
27441-56E00-060 SHIM,DIFF SIDE2WD:3AT; 2006-12-01~ |
27441-56E00-060 |
US $5.30 |
||
|
15
|
15
27441-56E00-070 SHIM,DIFF SIDE2WD:3AT; 2006-12-01~ |
27441-56E00-070 |
US $5.30 |
||
|
16
|
16
26121-76G10-000 RING,EXCITER T:8 ID:452WD:3AT; 2006-12-01~ |
26121-76G10-000 |
US $25.21 |
||
