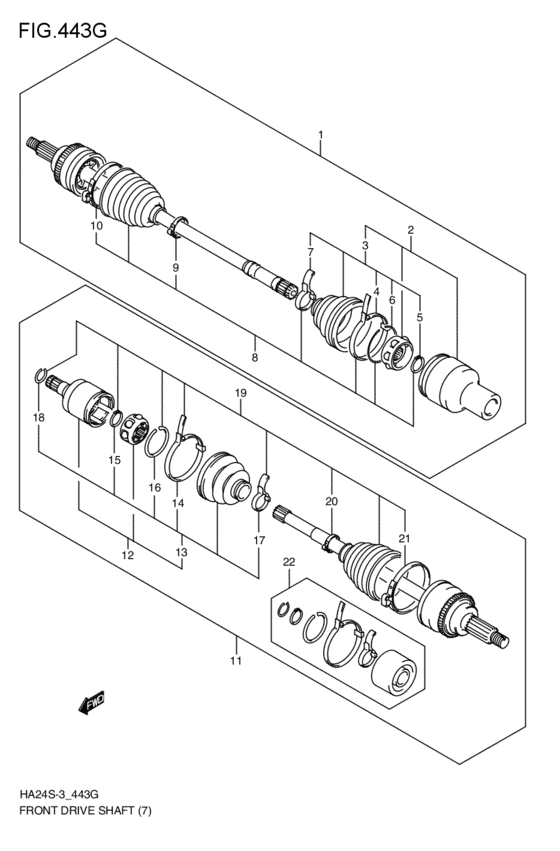

front-drive shaft (HA24S-240403,533709マデ,HA24V-151354マデ; 4WD:3AT; 2006-12-01~2007-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- VPS
- number of the gears
- 3AT
- body
- HA24V
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-58J50-000
シャフトアッシ,フロントドライブ,ライト
4WD:3AT; 2006-12-01~2007-01-01 |
44101-58J50-000 |
— | ||
| replacements | |||||
|
1
|
1
44101-58J90-000
New Genuine Part
4WD:3AT; 2006-12-01~2007-01-01 |
44101-58J90-000 |
— | ||
|
1
|
1
44101-58J91-000 F/DRIVE SHAFT RH4WD:3AT; 2006-12-01~2007-01-01 |
44101-58J91-000 |
US $591.14 |
||
|
2
|
2
44114-58J50-000
ジョイントアッシ,ディファレンシャルサイド
4WD:3AT; 2006-12-01~2007-01-01 |
44114-58J50-000 |
— | ||
| replacement | |||||
|
2
|
2
44114-58JR0-000
New Genuine Part
4WD:3AT; 2006-12-01~2007-01-01 |
44114-58JR0-000 |
— | ||
|
3
|
3
44119-67H00-000
BOOT SET,DIFF SIDE
4WD:3AT; 2006-12-01~2007-01-01 |
44119-67H00-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-67HA0-000 BOOT SET,DIFF SIDE4WD:3AT; 2006-12-01~2007-01-01 |
44119-67HA0-000 |
US $116.80 |
||
|
4
|
4
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD:3AT; 2006-12-01~2007-01-01 |
44122-86010-000 |
from US $9.02 |
||
|
5
|
5
44111-78010-000 RING,SNAP4WD:3AT; 2006-12-01~2007-01-01 |
44111-78010-000 |
US $2.80 |
||
|
6
|
6
44112-78010-000 CIRCLIP4WD:3AT; 2006-12-01~2007-01-01 |
44112-78010-000 |
from US $5.26 |
||
|
7
|
7
44124-86011-000 BAND,BOOT4WD:3AT; 2006-12-01~2007-01-01 |
44124-86011-000 |
US $6.81 |
||
|
8
|
8
44118-58J50-000
ブーツセット,ホイールサイド
4WD:3AT; 2006-12-01~2007-01-01 |
44118-58J50-000 |
— | ||
| replacement | |||||
|
8
|
8
44118-58J80-000
New Genuine Part
4WD:3AT; 2006-12-01~2007-01-01 |
44118-58J80-000 |
— | ||
|
9
|
9
44124-58J30-000 BAND,BOOT4WD:3AT; 2006-12-01~2007-01-01 |
44124-58J30-000 |
US $6.81 |
||
|
10
|
10
44121-58J30-000 BAND,BOOT4WD:3AT; 2006-12-01~2007-01-01 |
44121-58J30-000 |
US $10.56 |
||
|
11
|
11
44102-72J30-000
シャフトアッシ,フロントドライブレフト
4WD:3AT; 2006-12-01~2007-01-01 |
44102-72J30-000 |
— | ||
| replacement | |||||
|
11
|
11
44102-72J36-000
シャフトアッシ,フロントドライブレフト
4WD:3AT; 2006-12-01~2007-01-01 |
44102-72J36-000 |
— | ||
|
12
|
12
44114-58JD0-000
ジョイントアッシ,ディファレンシャルサイド
4WD:3AT; 2006-12-01~2007-01-01 |
44114-58JD0-000 |
— | ||
| replacement | |||||
|
12
|
12
44114-58JP0-000
New Genuine Part
4WD:3AT; 2006-12-01~2007-01-01 |
44114-58JP0-000 |
— | ||
|
13
|
13
44119-67H00-000
BOOT SET,DIFF SIDE
4WD:3AT; 2006-12-01~2007-01-01 |
44119-67H00-000 |
— | ||
| replacement | |||||
|
13
|
13
44119-67HA0-000 BOOT SET,DIFF SIDE4WD:3AT; 2006-12-01~2007-01-01 |
44119-67HA0-000 |
US $116.80 |
||
|
14
|
14
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD:3AT; 2006-12-01~2007-01-01 |
44122-86010-000 |
from US $9.02 |
||
|
15
|
15
44111-78010-000 RING,SNAP4WD:3AT; 2006-12-01~2007-01-01 |
44111-78010-000 |
US $2.80 |
||
|
16
|
16
44112-78010-000 CIRCLIP4WD:3AT; 2006-12-01~2007-01-01 |
44112-78010-000 |
from US $5.26 |
||
|
17
|
17
44124-86011-000 BAND,BOOT4WD:3AT; 2006-12-01~2007-01-01 |
44124-86011-000 |
US $6.81 |
||
|
18
|
18
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD:3AT; 2006-12-01~2007-01-01 |
09381-24001-000 |
from US $1.60 |
||
|
19
|
19
44118-58J50-000
ブーツセット,ホイールサイド
4WD:3AT; 2006-12-01~2007-01-01 |
44118-58J50-000 |
— | ||
| replacement | |||||
|
19
|
19
44118-58J80-000
New Genuine Part
4WD:3AT; 2006-12-01~2007-01-01 |
44118-58J80-000 |
— | ||
|
20
|
20
44124-58J30-000 BAND,BOOT4WD:3AT; 2006-12-01~2007-01-01 |
44124-58J30-000 |
US $6.81 |
||
|
21
|
21
44121-58J30-000 BAND,BOOT4WD:3AT; 2006-12-01~2007-01-01 |
44121-58J30-000 |
US $10.56 |
||
|
22
|
22
44411-72JD0-000
ダンパセット
4WD:3AT; 2006-12-01~2007-01-01 |
44411-72JD0-000 |
— | ||
