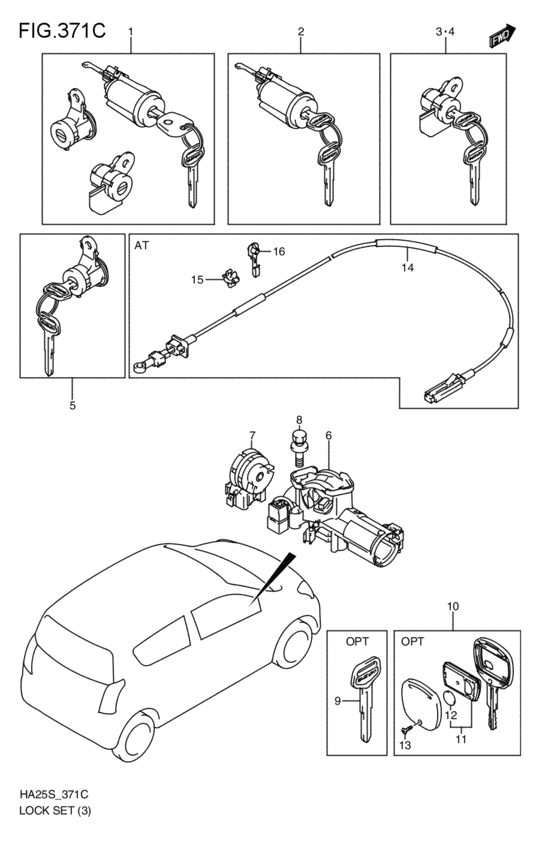

lock set (SE; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SE
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3710A-64830-000
lock set
SE:AT; 2009-09-01~ |
3710A-64830-000 |
— | ||
|
2
|
2
37103-72840-000 LOCK ASSY,STEERINGSE:AT; 2009-09-01~ |
37103-72840-000 |
US $75.81 |
||
|
3
|
3
82270-64840-000
シリンダ,フロントドアラッチ,ライト
SE; 2009-09-01~ |
82270-64840-000 |
— | ||
|
4
|
4
82280-64840-000
シリンダ,フロントドアラッチ,レフト
SE; 2009-09-01~ |
82280-64840-000 |
— | ||
|
5
|
5
82500-64810-000
シリンダ,バックドア
SE; 2009-09-01~ |
82500-64810-000 |
— | ||
|
6
|
6
37101-62J20-000 BODY,STEERING LOCKSE:AT; 2009-09-01~ |
37101-62J20-000 |
US $110.40 |
||
|
7
|
7
37111-58J00-000 Ignition switchSE; 2009-09-01~ |
37111-58J00-000 |
US $48.94 |
||
|
8
|
8
37152-84G00-000 BOLT, STRG LOCKSE; 2009-09-01~ |
37152-84G00-000 |
from US $2.98 |
||
|
9
|
9
37145-60J00-000 KEY,BLANKオプシヨン; SE; 2009-09-01~ |
37145-60J00-000 |
US $8.32 |
||
|
10
|
10
37145-58J82-000
KEY,BLANK TRANSMITTER
オプシヨン; SE; 2009-09-01~ |
37145-58J82-000 |
— | ||
| replacement | |||||
|
10
|
10
37145-58J84-000
New Genuine Part
オプシヨン; SE; 2009-09-01~ |
37145-58J84-000 |
— | ||
|
11
|
11
37182-82K02-000
スイッチアッシ,トランスミッタ
SE; 2009-09-01~ |
37182-82K02-000 |
— | ||
| replacement | |||||
|
11
|
11
37182-82K05-000
New Genuine Part
SE; 2009-09-01~ |
37182-82K05-000 |
— | ||
|
12
|
12
37185-54G00-000
バッテリ,CR1216
SE; 2009-09-01~ |
37185-54G00-000 |
— | ||
|
13
|
13
37186-58J00-000
スクリュ
SE; 2009-09-01~ |
37186-58J00-000 |
— | ||
|
14
|
14
28551-64L10-000
ケーブル,キーインタロック
SE:AT; 2009-09-01~ |
28551-64L10-000 |
— | ||
|
15
|
15
75411-76G00-000 CLAMP,CABLESE:AT; 2009-09-01~ |
75411-76G00-000 |
US $2.39 |
||
|
16
|
16
09403-05316-000 CLAMPSE:AT; 2009-09-01~ |
09403-05316-000 |
US $19.50 |
||
