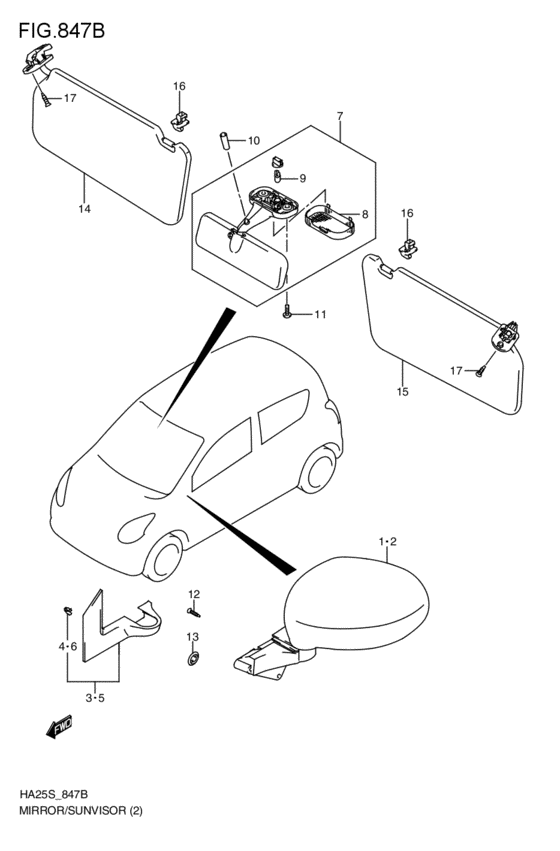

mirror / sun visor (SE,SF; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SE
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-64L00-000 MIRROR ASSY,RR VIEW,RSE,SF; 2009-09-01~ |
84701-64L00-000 |
US $70.66 |
||
|
2
|
2
84702-64L00-000 MIRROR ASSY,RR VIEW,LSE,SF; 2009-09-01~ |
84702-64L00-000 |
US $70.66 |
||
|
3
|
3
84719-64L00-000 COVER,OUT RR VIEW MIR,RSE,SF; 2009-09-01~ |
84719-64L00-000 |
US $37.17 |
||
|
4
|
4
09409-06324-000 CLIPSE,SF; 2009-09-01~ |
09409-06324-000 |
from US $1.12 |
||
|
5
|
5
84729-64L00-000 COVER,OUT RR VIEW MIR,LSE,SF; 2009-09-01~ |
84729-64L00-000 |
US $37.17 |
||
|
6
|
6
09409-06324-000 CLIPSE,SF; 2009-09-01~ |
09409-06324-000 |
from US $1.12 |
||
|
7
|
7
84703-73H00-6GS
Mirror assy,inside rear view
SE,SF; 2009-09-01~ |
84703-73H00-6GS |
— | ||
| replacement | |||||
|
7
|
7
84703-73H01-6GS MIRROR ASSY,INS RR VIEWSE,SF; 2009-09-01~ |
84703-73H01-6GS |
US $123.65 |
||
|
8
|
8
36212-76G00-000 LENS,ROOM LAMPSE,SF; 2009-09-01~ |
36212-76G00-000 |
US $3.68 |
||
|
9
|
9
09471-12113-000 BULB(12V8W)SE,SF; 2009-09-01~ |
09471-12113-000 |
from US $1.49 |
||
|
10
|
10
84782-64L00-000
サポート,インサイドミラー
SE,SF; 2009-09-01~2009-12-01 |
84782-64L00-000 |
— | ||
| replacement | |||||
|
10
|
10
84782-64L01-000
サポート,インサイドミラー
SE,SF; 2009-09-01~2009-12-01 |
84782-64L01-000 |
— | ||
|
10
|
10
84782-64L01-000
サポート,インサイドミラー
SE,SF; 2010-01-01~ |
84782-64L01-000 |
— | ||
|
11
|
11
02142-0616A-000 SCREWSE,SF; 2009-09-01~ |
02142-0616A-000 |
from US $0.76 |
||
|
12
|
12
09132-05059-000 SCREW(5X20)SE,SF; 2009-09-01~ |
09132-05059-000 |
US $14.40 |
||
|
13
|
13
09250-25007-000 CAP(OD:25.0)SE,SF; 2009-09-01~ |
09250-25007-000 |
from US $0.95 |
||
|
14
|
14
84801-72J01-J0T
サンバイザアッシ,ライト
SE,SF; 2009-09-01~ |
84801-72J01-J0T |
— | ||
|
15
|
15
84802-72J01-J0T
サンバイザアッシ,レフト
SE,SF; 2009-09-01~ |
84802-72J01-J0T |
— | ||
|
16
|
16
84851-85K00-6GS HOLDER,SUNVISORSE,SF; 2009-09-01~ |
84851-85K00-6GS |
US $3.86 |
||
|
17
|
17
09139-05061-000 SCREW(5X16)SE,SF; 2009-09-01~ |
09139-05061-000 |
US $0.80 |
||
