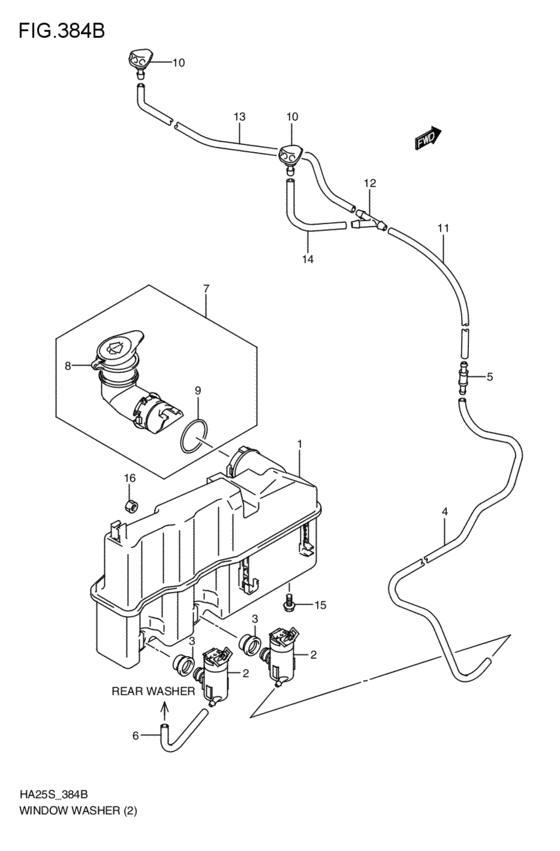

ウインドウオッシャ (4WD; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SE
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-64L10-000
タンク,ウォッシャフロント/リヤ
4WD; 2009-09-01~ |
38450-64L10-000 |
— | ||
|
2
|
2
38410-66113-000 PUMP ASSY,WASHERPump assy, washer 4WD; 2009-09-01~ |
38410-66113-000 |
from US $59.20 |
||
|
3
|
3
38453-75000-000 GROMMET4WD; 2009-09-01~ |
38453-75000-000 |
US $1.60 |
||
|
4
|
4
38459-50J00-000 HOSE,WASHER L:8104WD; 2009-09-01~ |
38459-50J00-000 |
US $14.40 |
||
|
5
|
5
38496-56B00-000 CONNECTOR4WD; 2009-09-01~ |
38496-56B00-000 |
from US $1.60 |
||
|
6
|
6
38459-72J10-000 HOSE,RR WASHER4WD; 2009-09-01~ |
38459-72J10-000 |
US $2.21 |
||
|
7
|
7
38402-76G00-000 PIPE ASSY,WASHER INLET4WD; 2009-09-01~ |
38402-76G00-000 |
US $13.25 |
||
|
8
|
8
38452-76G00-000 CAP,WASHER TANK4WD; 2009-09-01~ |
38452-76G00-000 |
US $2.58 |
||
|
9
|
9
38454-76G00-000 O-RING,INLET PIPE4WD; 2009-09-01~ |
38454-76G00-000 |
US $2.47 |
||
|
10
|
10
38480-64L00-000
ノズル,ワッシャ
4WD; 2009-09-01~ |
38480-64L00-000 |
— | ||
|
11
|
11
38459-50J00-000 HOSE,WASHER L:810L:810>240; 4WD; 2009-09-01~ |
38459-50J00-000 |
US $14.40 |
||
|
12
|
12
38496-60G00-000 JOINT,3WAY4WD; 2009-09-01~ |
38496-60G00-000 |
from US $2.34 |
||
|
13
|
13
38459-50J00-000 HOSE,WASHER L:810L:810>640; 4WD; 2009-09-01~ |
38459-50J00-000 |
US $14.40 |
||
|
14
|
14
38459-50J00-000 HOSE,WASHER L:810L:810>160; 4WD; 2009-09-01~ |
38459-50J00-000 |
US $14.40 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 4WD; 2009-09-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
08316-1006A-000 NUT4WD; 2009-09-01~ |
08316-1006A-000 |
from US $0.80 |
