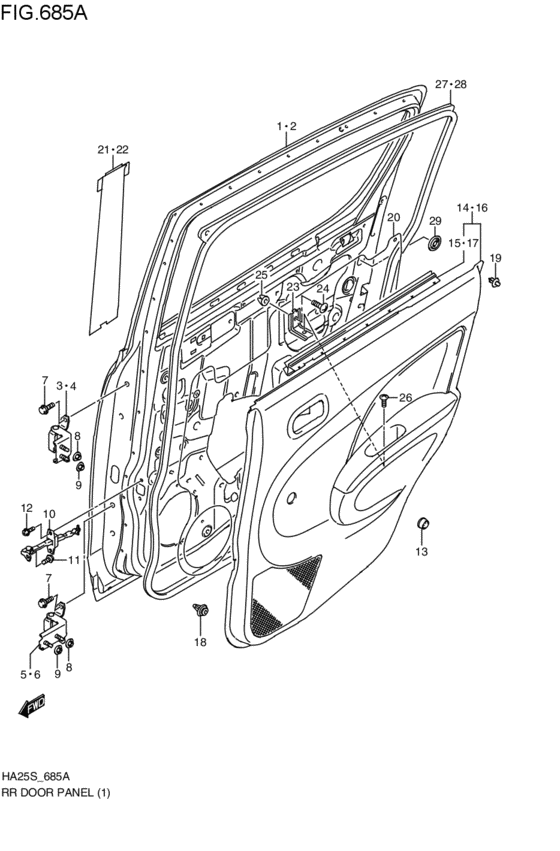

rear door panel (VP,SE; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SE
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-64L00-000
パネルアッシ,リヤドア,ライト
VP,SE; 2009-09-01~ |
68003-64L00-000 |
— | ||
| replacement | |||||
|
1
|
1
68003-62P00-000
New Genuine Part
VP,SE; 2009-09-01~ |
68003-62P00-000 |
— | ||
|
2
|
2
68004-64L00-000
パネルアッシ,リヤドア,レフト
VP,SE; 2009-09-01~ |
68004-64L00-000 |
— | ||
| replacement | |||||
|
2
|
2
68004-62P00-000 R/DOOR PANEL ASSY LHVP,SE; 2009-09-01~ |
68004-62P00-000 |
US $484.40 |
||
|
3
|
3
69410-72J00-000 HINGE,RR DOOR UPR,RVP,SE; 2009-09-01~ |
69410-72J00-000 |
US $38.64 |
||
|
4
|
4
69420-72J00-000 HINGE,RR DOOR UPR,LVP,SE; 2009-09-01~ |
69420-72J00-000 |
US $38.64 |
||
|
5
|
5
69430-72J00-000 HINGE,RR DOOR LWR,RVP,SE; 2009-09-01~ |
69430-72J00-000 |
US $38.64 |
||
|
6
|
6
69440-72J00-000 HINGE,RR DOOR LWR,LVP,SE; 2009-09-01~ |
69440-72J00-000 |
US $38.64 |
||
|
7
|
7
09103-08389-000 BOLT(8X24)VP,SE; 2009-09-01~ |
09103-08389-000 |
US $17.30 |
||
|
8
|
8
09159-08132-000 NUTVP,SE; 2009-09-01~ |
09159-08132-000 |
US $14.40 |
||
|
9
|
9
08361-2508A-000 NUTVP,SE; 2009-09-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
10
|
10
81830-58J02-000 STOP,REAR DOOR OPENVP,SE; 2009-09-01~ |
81830-58J02-000 |
US $28.89 |
||
|
11
|
11
09112-08015-000 BOLT(8X25)VP,SE; 2009-09-01~ |
09112-08015-000 |
US $19.50 |
||
|
12
|
12
09122-86004-000 SCREW(6X20)VP,SE; 2009-09-01~ |
09122-86004-000 |
US $11.80 |
||
|
13
|
13
82711-68H00-000 STOPPER,DOORVP,SE; 2009-09-01~ |
82711-68H00-000 |
US $2.40 |
||
|
14
|
14
83730-64L01-V6N
トリム,リヤドア,ライト(ベージュ)
VP,SE; 2009-09-01~ |
83730-64L01-V6N |
— | ||
| replacement | |||||
|
14
|
14
83730-64L02-V6N
New Genuine Part
VP,SE; 2009-09-01~ |
83730-64L02-V6N |
— | ||
|
15
|
15
83739-64L00-000
ウェザストリップ,リヤドアインナ,ライト
VP,SE; 2009-09-01~ |
83739-64L00-000 |
— | ||
|
16
|
16
83740-64L01-V6N
トリム,リヤドア,レフト(ベージュ)
VP,SE; 2009-09-01~ |
83740-64L01-V6N |
— | ||
| replacement | |||||
|
16
|
16
83740-64L02-V6N
New Genuine Part
VP,SE; 2009-09-01~ |
83740-64L02-V6N |
— | ||
|
17
|
17
83749-64L00-000
ウェザストリップ,リヤドアインナ,レフト
VP,SE; 2009-09-01~ |
83749-64L00-000 |
— | ||
|
18
|
18
09409-10312-000 CLIPVP,SE; 2009-09-01~ |
09409-10312-000 |
from US $1.08 |
||
|
19
|
19
09409-06314-P4Z CLIP(GRAY)VP,SE; 2009-09-01~ |
09409-06314-P4Z |
US $1.60 |
||
|
20
|
20
83913-64L00-000
カバー,リヤドアシーリング
VP,SE; 2009-09-01~ |
83913-64L00-000 |
— | ||
| replacement | |||||
|
20
|
20
83913-64L01-000
New Genuine Part
VP,SE; 2009-09-01~ |
83913-64L01-000 |
— | ||
|
21
|
21
83931-64L00-0CB
テープ,リヤドアアウタフロント,ライト(ブラック)
VP,SE; 2009-09-01~ |
83931-64L00-0CB |
— | ||
|
22
|
22
83932-64L00-0CB
テープ,リヤドアアウタフロント,レフト(ブラック)
VP,SE; 2009-09-01~ |
83932-64L00-0CB |
— | ||
|
23
|
23
83751-73H0V-000 BRACKET,SIDE DR TRIMVP,SE; 2009-09-01~ |
83751-73H0V-000 |
US $4.38 |
||
|
24
|
24
09132-05058-000 SCREW(5X12)VP,SE; 2009-09-01~ |
09132-05058-000 |
US $12.50 |
||
|
25
|
25
09148-06007-000 NUTVP,SE; 2009-09-01~ |
09148-06007-000 |
from US $0.88 |
||
|
26
|
26
03241-0612A-000 SCREWVP,SE; 2009-09-01~ |
03241-0612A-000 |
US $0.80 |
||
|
27
|
27
84661-64L00-000
ウェザストリップ,リヤドアオープニング,ライト
VP,SE; 2009-09-01~ |
84661-64L00-000 |
— | ||
| replacement | |||||
|
27
|
27
84661-62P00-000
New Genuine Part
VP,SE; 2009-09-01~ |
84661-62P00-000 |
— | ||
|
28
|
28
84671-64L00-000
ウェザストリップ,リヤドアオープニング,レフト
VP,SE; 2009-09-01~ |
84671-64L00-000 |
— | ||
| replacement | |||||
|
28
|
28
84671-62P00-000
New Genuine Part
VP,SE; 2009-09-01~ |
84671-62P00-000 |
— | ||
|
29
|
29
09250-25007-000 CAP(OD:25.0)VP,SE; 2009-09-01~ |
09250-25007-000 |
from US $0.95 |
||
