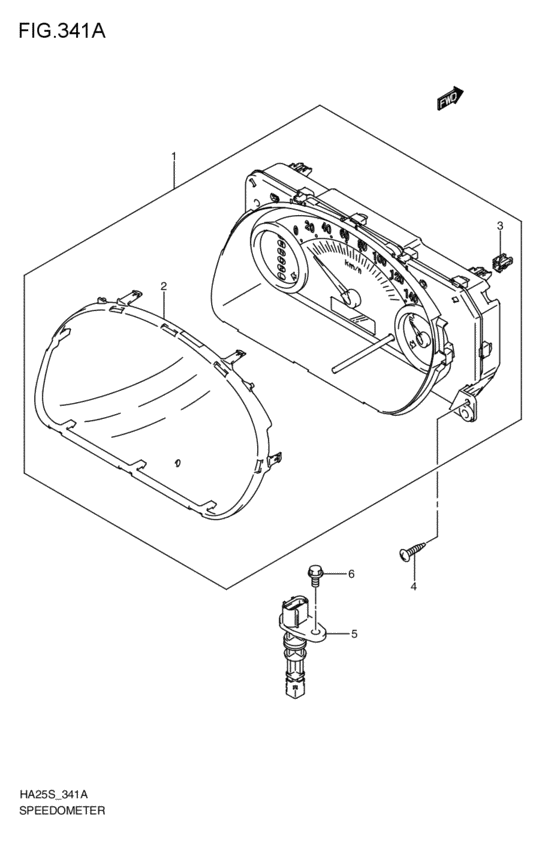

speed meter (2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SE
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-64LA0-000
スピードメータアッシ,コンビネーション
(SE,SF,SG):AT:ABS; 2009-09-01~ |
34100-64LA0-000 |
— | ||
|
2
|
2
34112-64L00-000
ガラス,メータウィンド
2009-09-01~ |
34112-64L00-000 |
— | ||
|
3
|
3
09409-08342-000 CLIP2009-09-01~ |
09409-08342-000 |
from US $0.68 |
||
|
4
|
4
03541-0516A-000 SCREW2009-09-01~ |
03541-0516A-000 |
from US $0.68 |
