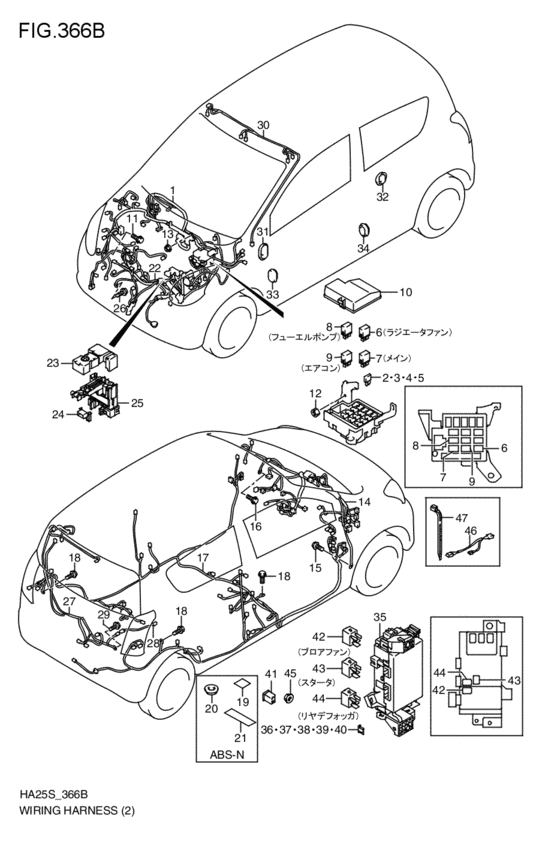

wire ring harness (SE; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SE
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-64L40-000
ハーネスアッシ,メイン
SE:AT:ABS; 2009-09-01~ |
36610-64L40-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-64L42-000
New Genuine Part
SE:AT:ABS; 2009-09-01~ |
36610-64L42-000 |
— | ||
|
2
|
2
09481-10504-000 FUSE(10A)SE; 2009-09-01~ |
09481-10504-000 |
from US $0.88 |
||
|
3
|
3
09481-15504-000 FUSE(15A)SE; 2009-09-01~ |
09481-15504-000 |
from US $0.95 |
||
|
4
|
4
09481-25504-000 FUSE(25A)SE; 2009-09-01~ |
09481-25504-000 |
from US $3.74 |
||
|
5
|
5
09481-30504-000 FUSE(30A)SE; 2009-09-01~ |
09481-30504-000 |
from US $1.01 |
||
|
6
|
6
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータフアン リレ-; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレー; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor フユーエル ポンプ リレー; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor エアコン リレー; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
10
|
10
36717-70K00-000
カバー,リレーボックス
SE; 2009-09-01~ |
36717-70K00-000 |
— | ||
| replacement | |||||
|
10
|
10
36717-70K01-000
New Genuine Part
SE; 2009-09-01~ |
36717-70K01-000 |
— | ||
|
11
|
11
09115-06005-000 BOLT(6X16)SE; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
12
|
12
09159-06081-000 NUTSE; 2009-09-01~ |
09159-06081-000 |
from US $1.19 |
||
|
13
|
13
09159-06081-000 NUTSE; 2009-09-01~ |
09159-06081-000 |
from US $1.19 |
||
|
14
|
14
36620-64L00-000
ハーネスアッシ,インストゥルメントパネル
SE; 2009-09-01~ |
36620-64L00-000 |
— | ||
| replacement | |||||
|
14
|
14
36620-64L02-000
New Genuine Part
SE; 2009-09-01~ |
36620-64L02-000 |
— | ||
|
15
|
15
09115-06005-000 BOLT(6X16)SE; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
16
|
16
02162-0612A-000 SCREWBolt, bracket SE; 2009-09-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
17
|
17
36630-64LU0-000
ハーネスアッシ,フロア
SE:4WD; 2009-09-01~ |
36630-64LU0-000 |
— | ||
|
18
|
18
09115-06005-000 BOLT(6X16)SE; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
22
|
22
36650-85K11-000
ハーネスアッシ,エンジン
SE:AT:ABS; 2009-09-01~ |
36650-85K11-000 |
— | ||
| replacement | |||||
|
22
|
22
36650-85K12-000
New Genuine Part
SE:AT:ABS; 2009-09-01~ |
36650-85K12-000 |
— | ||
|
23
|
23
36694-82K00-000 COVERSE; 2009-09-01~ |
36694-82K00-000 |
US $10.45 |
||
|
24
|
24
36694-82K10-000 HOLDER,CABLESE; 2009-09-01~ |
36694-82K10-000 |
US $8.57 |
||
|
25
|
25
36739-82K00-000
フューズ,バッテリ(80A)
SE; 2009-09-01~ |
36739-82K00-000 |
— | ||
|
26
|
26
01550-0812A-000 BOLTSE; 2009-09-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
27
|
27
36680-64L40-000
ハーネスアッシ,バックドア
SE:4WD; 2009-09-01~ |
36680-64L40-000 |
— | ||
|
28
|
28
36890-72J00-000 WIRE,RR DFSE; 2009-09-01~ |
36890-72J00-000 |
US $8.35 |
||
|
29
|
29
09115-06005-000 BOLT(6X16)SE; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
30
|
30
36820-64L00-000
ワイヤ,ドームランプ
SE; 2009-09-01~ |
36820-64L00-000 |
— | ||
|
31
|
31
36994-72J00-000 CAP,FR DR HOLE BODYSE; 2009-09-01~ |
36994-72J00-000 |
US $2.39 |
||
|
32
|
32
36994-72J10-000 CAP,RR DR HOLE BODYSE; 2009-09-01~ |
36994-72J10-000 |
US $1.95 |
||
|
33
|
33
36994-72J20-000 CAP,FR DR HOLE DRSE; 2009-09-01~ |
36994-72J20-000 |
US $2.87 |
||
|
34
|
34
09250-24005-000 CAP(OD:28.9)SE; 2009-09-01~ |
09250-24005-000 |
US $17.30 |
||
|
35
|
35
36780-64L11-000
ボックスセット,J/B/ボディコントロールMDL
SE; 2009-09-01~ |
36780-64L11-000 |
— | ||
| replacement | |||||
|
35
|
35
36780-64L12-000
New Genuine Part
SE; 2009-09-01~ |
36780-64L12-000 |
— | ||
|
36
|
36
09481-10504-000 FUSE(10A)SE; 2009-09-01~ |
09481-10504-000 |
from US $0.88 |
||
|
37
|
37
09481-15504-000 FUSE(15A)SE; 2009-09-01~ |
09481-15504-000 |
from US $0.95 |
||
|
38
|
38
09481-20504-000 FUSE(20A)SE; 2009-09-01~ |
09481-20504-000 |
from US $1.28 |
||
|
39
|
39
09481-25504-000 FUSE(25A)SE; 2009-09-01~ |
09481-25504-000 |
from US $3.74 |
||
|
40
|
40
09481-30504-000 FUSE(30A)SE; 2009-09-01~ |
09481-30504-000 |
from US $1.01 |
||
|
41
|
41
09481-30403-000 FUSE(30A)SE; 2009-09-01~ |
09481-30403-000 |
from US $7.28 |
||
|
42
|
42
38860-76F01-000 RELAY ASSYRelay, starting motor ブロアフアン リレ-; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
43
|
43
38860-76F01-000 RELAY ASSYRelay, starting motor スタ-タ モ-タ リレ-; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
44
|
44
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ デフオツガ リレ-; SE; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
45
|
45
08316-1008A-000 NUTNut, idle gear shaft SE; 2009-09-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
46
|
46
36691-58J00-000 WIRE,PASS A/Bオプシヨン; SE; 2009-09-01~ |
36691-58J00-000 |
US $80.22 |
||
|
47
|
47
09407-18402-000 CLAMP(L:165)Clamp (l:165) オプシヨン; SE; 2009-09-01~ |
09407-18402-000 |
from US $1.98 |
||
