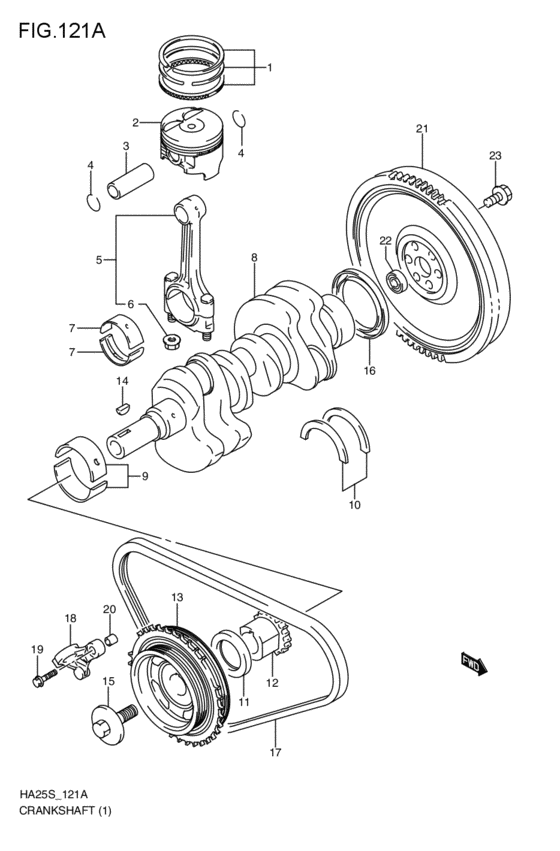

crankshaft (MT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SF
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-85K00-000 Ring set, Piston (STD)STD MT; 2009-09-01~ |
12140-85K00-000 |
US $82.40 |
||
|
2
|
2
12111-85K31-0A0 Piston, STD Mark 1STD マ-ク 1; MT; 2009-09-01~ |
12111-85K31-0A0 |
US $91.20 |
||
|
2
|
2
12111-85K31-0B0 Piston STD Mark 2STD 2 マ-ク 2; MT; 2009-09-01~ |
12111-85K31-0B0 |
US $91.20 |
||
|
3
|
3
12151-54A50-000 PIN,PISTONMT; 2009-09-01~ |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-17005-000 CIRCLIPMT; 2009-09-01~ |
09381-17005-000 |
from US $1.06 |
||
|
5
|
5
12160-58J00-000
Connrod assy
MT; 2009-09-01~ |
12160-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-58J01-000 CONNROD ASSYMT; 2009-09-01~ |
12160-58J01-000 |
from US $106.31 |
||
|
6
|
6
09159-08033-000 NUTMT; 2009-09-01~ |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12181-84H00-0A0 BEARING,CONNROD STDMT; 2009-09-01~ |
12181-84H00-0A0 |
US $22.40 |
||
|
8
|
8
12221-73G70-000 CRANKSHAFTMT; 2009-09-01~ |
12221-73G70-000 |
US $1,362.20 |
||
|
9
|
9
12300-85870-0A0 BEARING SET,CRANK GREENカラ-:グリ-ン; MT; 2009-09-01~ |
12300-85870-0A0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0B0 BEARING SET,CRANK BLACKカラ-:ブラツク; MT; 2009-09-01~ |
12300-85870-0B0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0C0 BEARING SET,CRANK NONカラ-:ナシ; MT; 2009-09-01~ |
12300-85870-0C0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0D0 BEARING SET,CRANK YELLOWカラ-:イエロ-; MT; 2009-09-01~ |
12300-85870-0D0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0E0 BEARING SET,CRANK BLUEカラ-:ブル-; MT; 2009-09-01~ |
12300-85870-0E0 |
from US $20.50 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
MT; 2009-09-01~ |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)MT; 2009-09-01~ |
12300-60840-000 |
from US $9.59 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
MT; 2009-09-01~ |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)MT; 2009-09-01~ |
12300-60840-012 |
US $30.40 |
||
|
11
|
11
09283-35053-000
Seal,oil,35x47x6
MT; 2009-09-01~ |
09283-35053-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-35062-000 SEAL,OIL(35X47X6)MT; 2009-09-01~ |
09283-35062-000 |
US $13.60 |
||
|
12
|
12
12631-58J00-000 SPROCKET,CRANKSHAFT TIMINGMT; 2009-09-01~ |
12631-58J00-000 |
from US $31.32 |
||
|
13
|
13
12611-82K00-000
プーリ,クランクシャフト
MT; 2009-09-01~ |
12611-82K00-000 |
— | ||
|
14
|
14
09420-04008-000 KEYMT; 2009-09-01~ |
09420-04008-000 |
from US $1.76 |
||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEYMT; 2009-09-01~ |
12619-69G10-000 |
from US $9.05 |
||
|
16
|
16
09283-79002-000 SEAL,OIL(79X99X8)MT; 2009-09-01~ |
09283-79002-000 |
from US $34.76 |
||
|
17
|
17
17521-65H10-000 BELT,WATER PUMP 4PK870MT; 2009-09-01~ |
17521-65H10-000 |
US $40 |
||
|
18
|
18
12613-58J31-000 BRACKET,CRANK ANGLE SENSORMT; 2009-09-01~ |
12613-58J31-000 |
US $16.41 |
||
|
19
|
19
01550-0625A-000 BOLTBolt MT; 2009-09-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
20
|
20
04211-09109-000 PINKnock pin MT; 2009-09-01~ |
04211-09109-000 |
from US $0.96 |
||
|
21
|
21
12620-73G51-000 FLYWHEELMT; 2009-09-01~ |
12620-73G51-000 |
US $296.24 |
||
|
22
|
22
12623-70B00-000 BEARING,INPUT SHAFTMT; 2009-09-01~ |
12623-70B00-000 |
US $15.96 |
||
|
23
|
23
09103-10282-000 BOLT(10X18.5)MT; 2009-09-01~ |
09103-10282-000 |
from US $2.08 |
||
