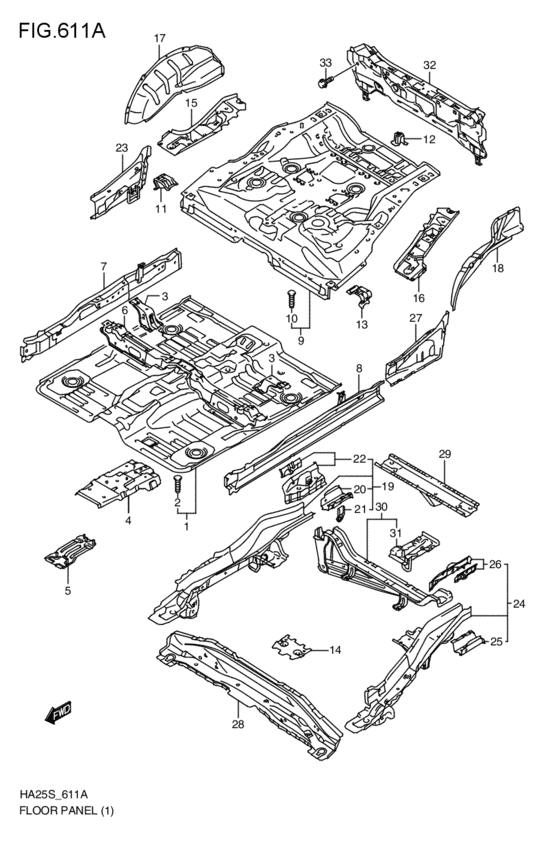

floor panel (MT:2WD; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SF
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-85K00-000
パン,メインフロア
MT:2WD; 2009-09-01~ |
61111-85K00-000 |
— | ||
|
2
|
2
09119-05018-000 BOLT(8X35)MT:2WD; 2009-09-01~ |
09119-05018-000 |
US $9.60 |
||
|
3
|
3
61141-85K00-000 BRACKET,FR SEAT MTG RR OUTSIDEMT:2WD; 2009-09-01~ |
61141-85K00-000 |
US $11.33 |
||
|
4
|
4
61150-64L00-000
リンフォースメント,メインフロアトンネル
MT:2WD; 2009-09-01~ |
61150-64L00-000 |
— | ||
|
5
|
5
61161-70K00-000 BRACKET,SHIFT LEVERMT:2WD; 2009-09-01~ |
61161-70K00-000 |
US $17.11 |
||
|
6
|
6
61210-82K01-000
クロスメンバ,フロアパンアッパ
MT:2WD; 2009-09-01~ |
61210-82K01-000 |
— | ||
| replacement | |||||
|
6
|
6
61210-82K02-000
New Genuine Part
MT:2WD; 2009-09-01~ |
61210-82K02-000 |
— | ||
|
7
|
7
61310-85K00-000
パネル,サイドシルインナ,ライト
MT:2WD; 2009-09-01~ |
61310-85K00-000 |
— | ||
| replacement | |||||
|
7
|
7
61310-85K01-000
New Genuine Part
MT:2WD; 2009-09-01~ |
61310-85K01-000 |
— | ||
|
8
|
8
61320-85K00-000
パネル,サイドシルインナ,レフト
MT:2WD; 2009-09-01~ |
61320-85K00-000 |
— | ||
|
9
|
9
61511-85K01-000
パン,リヤフロア
MT:2WD; 2009-09-01~ |
61511-85K01-000 |
— | ||
| replacement | |||||
|
9
|
9
61511-85810-000 PAN,REAR FLOORMT:2WD; 2009-09-01~ |
61511-85810-000 |
US $222.64 |
||
|
10
|
10
09119-05018-000 BOLT(8X35)MT:2WD; 2009-09-01~ |
09119-05018-000 |
US $9.60 |
||
|
11
|
11
61514-85K00-000
ブラケット,リヤシートフロント,ライト
MT:2WD; 2009-09-01~ |
61514-85K00-000 |
— | ||
|
12
|
12
61518-64L00-000
ブラケット,スペアタイヤ
MT:2WD; 2009-09-01~ |
61518-64L00-000 |
— | ||
|
13
|
13
61519-85K00-000
ブラケット,リヤシートフロント,レフト
MT:2WD; 2009-09-01~ |
61519-85K00-000 |
— | ||
|
14
|
14
61520-64L00-000
リンフォースメント,リヤシートベルトセンタ
MT:2WD:(SE,SF); 2009-09-01~ |
61520-64L00-000 |
— | ||
|
15
|
15
61531-64L00-000
リンフォースメント,リヤシートベルトサイド,ライト
MT:2WD:(SE,SF); 2009-09-01~ |
61531-64L00-000 |
— | ||
|
16
|
16
61536-64L00-000
リンフォースメント,リヤシートベルトサイド,レフト
MT:2WD:(SE,SF); 2009-09-01~ |
61536-64L00-000 |
— | ||
|
17
|
17
61611-82K01-000
パネル,リヤホイールハウスインナ,ライト
MT:2WD; 2009-09-01~ |
61611-82K01-000 |
— | ||
| replacement | |||||
|
17
|
17
61611-82K02-000
New Genuine Part
MT:2WD; 2009-09-01~ |
61611-82K02-000 |
— | ||
|
18
|
18
61661-82K01-000
パネル,リヤホイールハウスインナ,レフト
MT:2WD; 2009-09-01~ |
61661-82K01-000 |
— | ||
| replacement | |||||
|
18
|
18
61661-82K02-000
New Genuine Part
MT:2WD; 2009-09-01~ |
61661-82K02-000 |
— | ||
|
19
|
19
62100-82K02-000
メンバ,リヤフロアサイド,ライト
MT:2WD; 2009-09-01~ |
62100-82K02-000 |
— | ||
| replacement | |||||
|
19
|
19
62100-82K04-000 MEMBER,RR FL SIDE,RMT:2WD; 2009-09-01~ |
62100-82K04-000 |
US $242.88 |
||
|
20
|
20
62113-82K00-000 MEMBER,RR FL SIDE RR,RMT:2WD; 2009-09-01~ |
62113-82K00-000 |
US $10.12 |
||
|
21
|
21
62124-86001-000 HANGER,MUFFLER RRMT:2WD; 2009-09-01~ |
62124-86001-000 |
US $3.94 |
||
|
22
|
22
62140-82810-000
BRACKET SET,RR SHOCK ABS,R
MT:2WD; 2009-09-01~ |
62140-82810-000 |
— | ||
| replacement | |||||
|
22
|
22
62140-82811-000 BRACKET SET,RR SHOCK ABS,RMT:2WD; 2009-09-01~ |
62140-82811-000 |
US $30.36 |
||
|
23
|
23
62210-82K00-000 LOCKER,RR FL FR INR,RMT:2WD; 2009-09-01~ |
62210-82K00-000 |
US $37.90 |
||
|
24
|
24
62300-82K02-000
メンバ,リヤフロアサイド,レフト
MT:2WD; 2009-09-01~ |
62300-82K02-000 |
— | ||
| replacement | |||||
|
24
|
24
62300-82K04-000 MEMBER,RR FL SIDE,LMT:2WD; 2009-09-01~ |
62300-82K04-000 |
US $242.88 |
||
|
25
|
25
62313-82K00-000 MEMBER,RR FL SIDE RR,LMT:2WD; 2009-09-01~ |
62313-82K00-000 |
US $10.12 |
||
|
26
|
26
62340-82810-000
BRACKET SET,RR SHOCK ABS,L
MT:2WD; 2009-09-01~ |
62340-82810-000 |
— | ||
| replacement | |||||
|
26
|
26
62340-82811-000 BRACKET SET,RR SHOCK ABS,LMT:2WD; 2009-09-01~ |
62340-82811-000 |
US $30.36 |
||
|
27
|
27
62410-82K00-000 LOCKER,RR FL FR INR,LMT:2WD; 2009-09-01~ |
62410-82K00-000 |
US $37.90 |
||
|
28
|
28
62610-85K00-000
クロスメンバ,リヤフロアフロント
MT:2WD; 2009-09-01~ |
62610-85K00-000 |
— | ||
| replacement | |||||
|
28
|
28
62610-85K01-000 CROSSMEMBER,RR FLR FRMT:2WD; 2009-09-01~ |
62610-85K01-000 |
US $143.89 |
||
|
29
|
29
62620-82K00-000 CROSSMEMBER,RR FL 2NDMT:2WD; 2009-09-01~ |
62620-82K00-000 |
US $25.94 |
||
|
30
|
30
62630-82K00-000 CROSSMEMBER,RR FL 3RDMT:2WD; 2009-09-01~ |
62630-82K00-000 |
US $165.60 |
||
|
31
|
31
62640-82K00-000 HOOK,TOWING RRMT:2WD; 2009-09-01~ |
62640-82K00-000 |
US $35.33 |
||
|
32
|
32
65400-64L00-000
パネル,リヤスカート
MT:2WD; 2009-09-01~ |
65400-64L00-000 |
— | ||
| replacement | |||||
|
32
|
32
65400-64L01-000
New Genuine Part
MT:2WD; 2009-09-01~ |
65400-64L01-000 |
— | ||
|
33
|
33
01550-0612A-000 BOLTMT:2WD; 2009-09-01~ |
01550-0612A-000 |
from US $0.76 |
||
