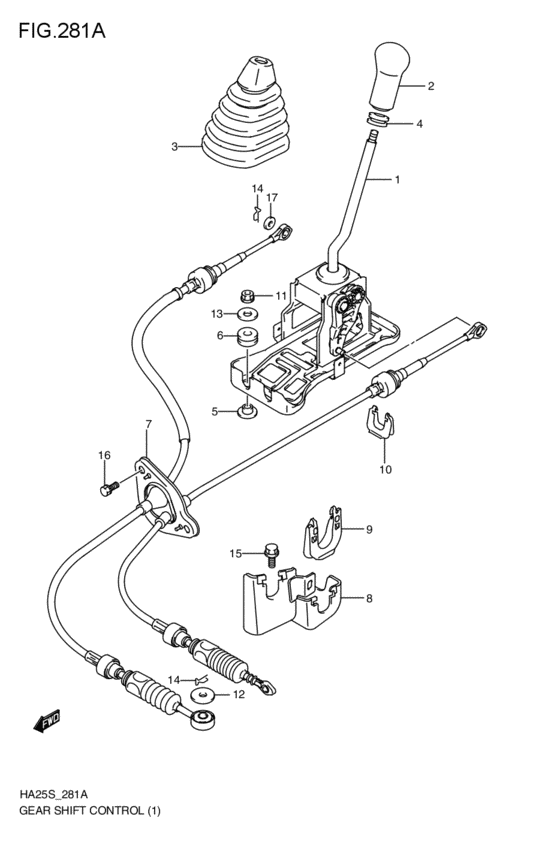

gearlever control (MT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SF
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-64L00-000
レバーアッシ,ギヤシフトコントロール
MT; 2009-09-01~ |
28101-64L00-000 |
— | ||
| replacement | |||||
|
1
|
1
28101-64L03-000
New Genuine Part
MT; 2009-09-01~ |
28101-64L03-000 |
— | ||
|
2
|
2
28113-70G20-5PK
KNOB,CONT LEVER
MT; 2009-09-01~ |
28113-70G20-5PK |
— | ||
| replacement | |||||
|
2
|
2
28113-70G21-5PK KNOB,GEAR SHF CONT LEVER(BLC)MT; 2009-09-01~ |
28113-70G21-5PK |
US $34.40 |
||
|
3
|
3
28136-72J02-5PK
ブーツ,ギヤシフトコントロールレバー(ブラック)
MT; 2009-09-01~ |
28136-72J02-5PK |
— | ||
|
4
|
4
28139-80G20-000
Holder,gr shf cont lever boot
MT; 2009-09-01~ |
28139-80G20-000 |
— | ||
| replacement | |||||
|
4
|
4
28139-80G21-000 HOLDER,GR SHF CONT LEVER BOOTMT; 2009-09-01~ |
28139-80G21-000 |
US $2.24 |
||
|
5
|
5
28367-70K00-000 SPACER,GEAR CONT GUIDE CUSHIONMT; 2009-09-01~ |
28367-70K00-000 |
US $2.69 |
||
|
6
|
6
09320-12076-000
CUSHION
MT; 2009-09-01~ |
09320-12076-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-12095-000 CushionMT; 2009-09-01~ |
09320-12095-000 |
US $11.40 |
||
|
7
|
7
28300-64L00-000 CABLE ASSY, GEAR SHIFT CONTROLMT; 2009-09-01~ |
28300-64L00-000 |
US $515.42 |
||
|
8
|
8
28391-70K00-000
ブラケット,トランスミッションコントロールケーブル
MT; 2009-09-01~ |
28391-70K00-000 |
— | ||
|
9
|
9
29365-73J00-000 CLIP,GEAR CONT CABLE NO.2MT; 2009-09-01~ |
29365-73J00-000 |
from US $3.11 |
||
|
10
|
10
29365-79A40-000 CLIPMT; 2009-09-01~ |
29365-79A40-000 |
US $4 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft MT; 2009-09-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
09160-08143-000 WASHER(8.5X38X1.6)MT; 2009-09-01~ |
09160-08143-000 |
from US $0.96 |
||
|
13
|
13
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT; 2009-09-01~ |
09160-08151-000 |
from US $0.91 |
||
|
14
|
14
09385-08007-000 PIN,SNAPClip MT; 2009-09-01~ |
09385-08007-000 |
from US $1.09 |
||
|
15
|
15
01550-0820A-000 BOLTBolt, funnel bracket MT; 2009-09-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
16
|
16
02162-0620C-000 SCREWMT; 2009-09-01~ |
02162-0620C-000 |
from US $0.77 |
||
|
17
|
17
08322-0108A-000 WASHERMT; 2009-09-01~ |
08322-0108A-000 |
from US $0.80 |
||
