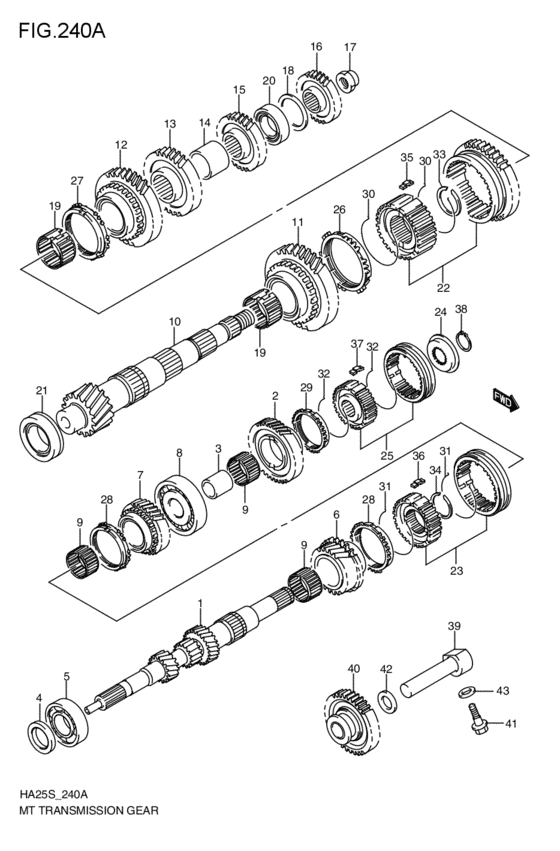

mt - transmission gear (MT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SF
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-78G20-000
シャフト,トランスミッションインプット
MT; 2009-09-01~ |
24111-78G20-000 |
— | ||
| replacement | |||||
|
1
|
1
24111-78G22-000
New Genuine Part
MT; 2009-09-01~ |
24111-78G22-000 |
— | ||
|
2
|
2
24114-70K00-000
ギヤ,インプットシャフトフィフス
MT; 2009-09-01~ |
24114-70K00-000 |
— | ||
|
3
|
3
24119-73B51-000 SPACER,INPUT SHAFT 5TH GEARMT; 2009-09-01~ |
24119-73B51-000 |
US $22.08 |
||
|
4
|
4
24151-60BD1-000 SEAL,INPUT SHAFT OILMT; 2009-09-01~ |
24151-60BD1-000 |
US $4.64 |
||
|
5
|
5
24155-63J01-000 BEARING,INPUT SHAFT,RMT; 2009-09-01~ |
24155-63J01-000 |
from US $15.06 |
||
|
6
|
6
24230-63D20-000
Gear,input shaft 3rd
MT; 2009-09-01~2010-02-01 |
24230-63D20-000 |
— | ||
| replacement | |||||
|
6
|
6
24230-63D21-000 GEAR,INPUT SHAFT 3RDMT; 2009-09-01~2010-02-01 |
24230-63D21-000 |
US $111.50 |
||
|
6
|
6
24230-63D21-000 GEAR,INPUT SHAFT 3RDMT; 2010-03-01~ |
24230-63D21-000 |
US $111.50 |
||
|
7
|
7
24240-73B01-000
ギヤ,インプットシャフト,フォース
MT; 2009-09-01~ |
24240-73B01-000 |
— | ||
| replacement | |||||
|
7
|
7
24240-73B02-000 New Genuine PartMT; 2009-09-01~ |
24240-73B02-000 |
US $111.50 |
||
|
8
|
8
24126-83E00-000 BEARING,INPUT SHAFT,LMT; 2009-09-01~ |
24126-83E00-000 |
from US $30.40 |
||
|
9
|
9
09263-25053-000 BEARING(25X30X23.8)MT; 2009-09-01~ |
09263-25053-000 |
from US $14.40 |
||
|
10
|
10
24131-70K00-000
シャフト,トランスアクスルカウンタ
MT:2WD; 2009-09-01~ |
24131-70K00-000 |
— | ||
| replacement | |||||
|
10
|
10
24131-70K01-000
New Genuine Part
MT:2WD; 2009-09-01~ |
24131-70K01-000 |
— | ||
|
11
|
11
24311-53E81-000 ギヤ,カウンタシャフト,ファーストMT; 2009-09-01~ |
24311-53E81-000 |
US $131.20 |
||
|
12
|
12
24321-73B01-000
ギヤ,カウンタシャフト,セカンド
MT; 2009-09-01~ |
24321-73B01-000 |
— | ||
|
13
|
13
24331-63D80-000 GEAR,CTSHFT 3RDMT; 2009-09-01~ |
24331-63D80-000 |
US $114.45 |
||
|
14
|
14
24336-60B00-000 SPACER,3RD&4TH GEARMT; 2009-09-01~ |
24336-60B00-000 |
US $17.37 |
||
|
15
|
15
24341-73B02-000
ギヤ,カウンタシャフト,フォース
MT; 2009-09-01~ |
24341-73B02-000 |
— | ||
|
16
|
16
24351-70K00-000
ギヤ,カウンタシャフトフィフス
MT; 2009-09-01~ |
24351-70K00-000 |
— | ||
|
17
|
17
09159-16014-000 NUTMT; 2009-09-01~ |
09159-16014-000 |
from US $1.97 |
||
|
18
|
18
09160-33003-000 WASHER(33.5X41.8X1)Washer (t:1.00) MT; 2009-09-01~ |
09160-33003-000 |
US $27.20 |
||
|
18
|
18
09160-33004-000 WASHER(33.5X41.8X1.05)Washer (t:1.05) MT; 2009-09-01~ |
09160-33004-000 |
US $27.20 |
||
|
18
|
18
09160-33005-000 WASHER(33.5X41.8X1.1)Washer (t:1.10) MT; 2009-09-01~ |
09160-33005-000 |
US $27.20 |
||
|
18
|
18
09160-33006-000 WASHER(33.5X41.8X1.15)Washer (t:1.15) MT; 2009-09-01~ |
09160-33006-000 |
US $27.20 |
||
|
18
|
18
09181-33001-000 SHIM(33.5X41.8X0.55)Washer (t:1.5) MT; 2009-09-01~ |
09181-33001-000 |
US $1.82 |
||
|
18
|
18
09181-33002-000 SHIM(33.5X41.8X0.6)Shim (t:0.6) MT; 2009-09-01~ |
09181-33002-000 |
US $1.82 |
||
|
18
|
18
09181-33003-000 SHIM(33.5X41.8X0.65)Waserh (t:0.65) MT; 2009-09-01~ |
09181-33003-000 |
US $1.82 |
||
|
18
|
18
09181-33004-000 SHIM(33.5X41.8X0.7)Shim (t:0.7) MT; 2009-09-01~ |
09181-33004-000 |
US $1.82 |
||
|
18
|
18
09181-33005-000 SHIM(33.5X41.8X0.75)Washer (t:0.75) MT; 2009-09-01~ |
09181-33005-000 |
US $1.82 |
||
|
18
|
18
09181-33006-000 SHIM(33.5X41.8X0.8)Shim (t:0.8) MT; 2009-09-01~ |
09181-33006-000 |
from US $1.94 |
||
|
18
|
18
09181-33007-000 SHIM(33.5X41.8X0.85)Washer (t:0.85) MT; 2009-09-01~ |
09181-33007-000 |
US $1.82 |
||
|
18
|
18
09181-33008-000 SHIM(33.5X41.8X0.9)Shim (t:0.9) MT; 2009-09-01~ |
09181-33008-000 |
US $1.82 |
||
|
18
|
18
09181-33009-000 SHIM(33.5X41.8X0.95)Washer (t:0.95) MT; 2009-09-01~ |
09181-33009-000 |
US $22.40 |
||
|
18
|
18
09170-33421-045 SHIM(33.5X41.8X0.45)MT; 2009-09-01~ |
09170-33421-045 |
US $23.90 |
||
|
18
|
18
09170-33421-050 SHIM(33.5X41.8X0.5)MT; 2009-09-01~ |
09170-33421-050 |
US $18 |
||
|
19
|
19
09263-30030-000 BEARING(30X35X24.8)MT; 2009-09-01~ |
09263-30030-000 |
from US $10.18 |
||
|
20
|
20
09265-20015-000 BEARING(20X42X15)MT; 2009-09-01~ |
09265-20015-000 |
from US $21.63 |
||
|
21
|
21
09265-25036-000 BEARING(25X47X17)MT; 2009-09-01~ |
09265-25036-000 |
from US $35.69 |
||
|
22
|
22
24400-72J21-000 HUB ASSY,LOW SPEED SYNCMT; 2009-09-01~ |
24400-72J21-000 |
US $204.80 |
||
|
23
|
23
24410-72J20-000 HUB ASSY,HIGH SPEED SYNCMT; 2009-09-01~ |
24410-72J20-000 |
US $148.80 |
||
|
24
|
24
24415-60B50-000
Plate,5th sync hub
MT; 2009-09-01~ |
24415-60B50-000 |
— | ||
| replacement | |||||
|
24
|
24
24415-60B51-000 PLATE,5TH SYNC HUBMT; 2009-09-01~ |
24415-60B51-000 |
US $7.52 |
||
|
25
|
25
24420-72J20-000 HUB ASSY,5TH SPEED SYNCMT; 2009-09-01~ |
24420-72J20-000 |
from US $76.32 |
||
|
26
|
26
24431-60B00-000 RING,1ST GEAR SYNCMT; 2009-09-01~ |
24431-60B00-000 |
from US $19.26 |
||
|
27
|
27
24431-63B20-000 RING,2ND GEAR SYNCMT; 2009-09-01~ |
24431-63B20-000 |
from US $19.96 |
||
|
28
|
28
24432-60B20-000 RING,HIGH SPEED SYNCMT; 2009-09-01~ |
24432-60B20-000 |
from US $20.34 |
||
|
29
|
29
24432-84041-000 RING,5TH SPEED SYNCMT; 2009-09-01~ |
24432-84041-000 |
from US $19.22 |
||
|
30
|
30
24441-60B00-000 SPRING,LOW SPEED SYNCMT; 2009-09-01~ |
24441-60B00-000 |
from US $1.58 |
||
|
31
|
31
24442-60B00-000 SPRING,HIGH SPEED SYNCMT; 2009-09-01~ |
24442-60B00-000 |
from US $1.58 |
||
|
32
|
32
24443-60B50-000 SPRING,5TH SPEED SYNCMT; 2009-09-01~ |
24443-60B50-000 |
from US $1.58 |
||
|
33
|
33
24451-60B00-000 CIRCLIPMT; 2009-09-01~ |
24451-60B00-000 |
from US $1.60 |
||
|
34
|
34
24452-60B00-000 CIRCLIP,HIGH SPEED SYNC HUBMT; 2009-09-01~ |
24452-60B00-000 |
from US $1.60 |
||
|
35
|
35
24471-60B00-000 KEY,LOW SPEED SYNCHRONIZERMT; 2009-09-01~ |
24471-60B00-000 |
from US $1.92 |
||
|
36
|
36
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync MT; 2009-09-01~ |
24472-60B00-000 |
from US $1.92 |
||
|
37
|
37
24473-72J00-000 KEY,5TH SPEED SYNCMT; 2009-09-01~ |
24473-72J00-000 |
from US $1.92 |
||
|
38
|
38
09380-19004-000 RING,SNAPMT; 2009-09-01~ |
09380-19004-000 |
from US $1.76 |
||
|
39
|
39
24550-63D00-000 SHAFT,T/M REVERSE GEARMT; 2009-09-01~ |
24550-63D00-000 |
US $43.06 |
||
|
40
|
40
24560-63D40-000 GEAR,REV IDLERMT; 2009-09-01~ |
24560-63D40-000 |
US $66.24 |
||
|
41
|
41
24565-60B00-000 BOLT,REVERSE SHAFTMT; 2009-09-01~ |
24565-60B00-000 |
from US $1.49 |
||
|
42
|
42
09161-16010-000 WASHER(16X24X3)MT; 2009-09-01~ |
09161-16010-000 |
from US $1.60 |
||
|
43
|
43
09168-08030-000 GASKET(8.2X17X1)MT; 2009-09-01~ |
09168-08030-000 |
from US $2.07 |
||
