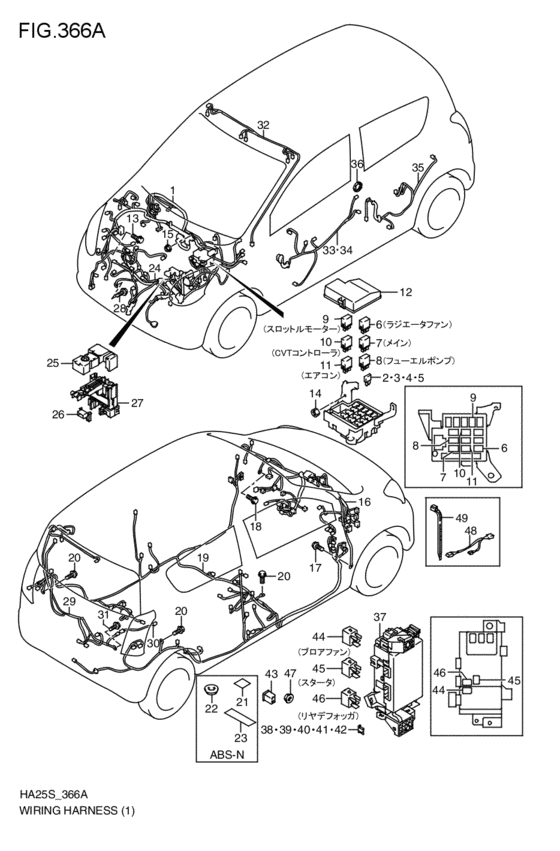

wire ring harness (VP,SF,SG; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- SF
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-64L00-000
Harness assembly, main
(VP,SF):MT:ABS-N; 2009-09-01~ |
36610-64L00-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-64L02-000 Harness assembly, main(VP,SF):MT:ABS-N; 2009-09-01~ |
36610-64L02-000 |
US $780.80 |
||
|
2
|
2
09481-10504-000 FUSE(10A)VP,SF,SG; 2009-09-01~ |
09481-10504-000 |
from US $0.88 |
||
|
3
|
3
09481-15504-000 FUSE(15A)VP,SF,SG; 2009-09-01~ |
09481-15504-000 |
from US $0.95 |
||
|
4
|
4
09481-25504-000 FUSE(25A)VP,SF,SG; 2009-09-01~ |
09481-25504-000 |
from US $3.74 |
||
|
5
|
5
09481-30504-000 FUSE(30A)VP,SF,SG; 2009-09-01~ |
09481-30504-000 |
from US $1.01 |
||
|
6
|
6
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータフアン リレ-; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレー; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor フユーエル ポンプ リレー; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
11
|
11
38860-76F01-000 RELAY ASSYRelay, starting motor エアコン リレー; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
12
|
12
36717-70K00-000
カバー,リレーボックス
VP,SF,SG; 2009-09-01~ |
36717-70K00-000 |
— | ||
| replacement | |||||
|
12
|
12
36717-70K01-000
New Genuine Part
VP,SF,SG; 2009-09-01~ |
36717-70K01-000 |
— | ||
|
13
|
13
09115-06005-000 BOLT(6X16)VP,SF,SG; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
14
|
14
09159-06081-000 NUTVP,SF,SG; 2009-09-01~ |
09159-06081-000 |
from US $1.19 |
||
|
15
|
15
09159-06081-000 NUTVP,SF,SG; 2009-09-01~ |
09159-06081-000 |
from US $1.19 |
||
|
16
|
16
36620-64L00-000
ハーネスアッシ,インストゥルメントパネル
VP,SF; 2009-09-01~ |
36620-64L00-000 |
— | ||
| replacement | |||||
|
16
|
16
36620-64L02-000
New Genuine Part
VP,SF; 2009-09-01~ |
36620-64L02-000 |
— | ||
|
17
|
17
09115-06005-000 BOLT(6X16)VP,SF,SG; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket VP,SF,SG; 2009-09-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
36630-64LB0-000
ハーネスアッシ,フロア
SF:2WD:ABS-N; 2009-09-01~ |
36630-64LB0-000 |
— | ||
|
20
|
20
09115-06005-000 BOLT(6X16)VP,SF,SG; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
77151-82000-000
FILM
(VP,SF,SG):ABS-N; 2009-09-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
21
|
21
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole (VP,SF,SG):ABS-N; 2009-09-01~ |
84761-50X50-000 |
US $6.72 |
||
|
21
|
21
77151-82010-000 Seal(VP,SF,SG):ABS-N; 2009-09-01~ |
77151-82010-000 |
US $1.44 |
||
|
22
|
22
72999-67H00-000 CAP,OD:40(VP,SF,SG):ABS-N; 2009-09-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
23
|
23
36930-82010-000 COVER,HARNESSCover, roof wire (VP,SF,SG):ABS-N; 2009-09-01~ |
36930-82010-000 |
from US $1.73 |
||
|
24
|
24
36650-64L00-000 Harness assembly for engine(VP,SF):MT; 2009-09-01~ |
36650-64L00-000 |
US $891.20 |
||
|
25
|
25
36694-82K00-000 COVERVP,SF,SG; 2009-09-01~ |
36694-82K00-000 |
US $10.45 |
||
|
26
|
26
36694-82K10-000 HOLDER,CABLEVP,SF,SG; 2009-09-01~ |
36694-82K10-000 |
US $8.57 |
||
|
27
|
27
36739-82K00-000
フューズ,バッテリ(80A)
VP,SF,SG; 2009-09-01~ |
36739-82K00-000 |
— | ||
|
28
|
28
01550-0812A-000 BOLTVP,SF,SG; 2009-09-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
29
|
29
36680-64L10-000
ハーネスアッシ,バックドア
(VP,SF):2WD; 2009-09-01~ |
36680-64L10-000 |
— | ||
|
30
|
30
36890-72J00-000 WIRE,RR DFVP,SF,SG; 2009-09-01~ |
36890-72J00-000 |
US $8.35 |
||
|
31
|
31
09115-06005-000 BOLT(6X16)VP,SF,SG; 2009-09-01~ |
09115-06005-000 |
US $1.28 |
||
|
32
|
32
36820-64L00-000
ワイヤ,ドームランプ
VP,SF,SG; 2009-09-01~ |
36820-64L00-000 |
— | ||
|
33
|
33
36756-64L20-000
ワイヤ,フロントドア,メイン
SF; 2009-09-01~ |
36756-64L20-000 |
— | ||
|
34
|
34
36757-64L20-000
ワイヤ,サブドア
SF; 2009-09-01~ |
36757-64L20-000 |
— | ||
|
35
|
35
36751-64L20-000
ワイヤ,リヤドア
SF,SG; 2009-09-01~ |
36751-64L20-000 |
— | ||
|
36
|
36
09308-25002-000 GROMMETVP,SF,SG; 2009-09-01~ |
09308-25002-000 |
US $11.80 |
||
|
37
|
37
36780-64L01-000
ボックスセット,J/B/ボディコントロールMDL
VP,SF,SG; 2009-09-01~ |
36780-64L01-000 |
— | ||
| replacement | |||||
|
37
|
37
36780-64L02-000
New Genuine Part
VP,SF,SG; 2009-09-01~ |
36780-64L02-000 |
— | ||
|
38
|
38
09481-10504-000 FUSE(10A)VP,SF,SG; 2009-09-01~ |
09481-10504-000 |
from US $0.88 |
||
|
39
|
39
09481-15504-000 FUSE(15A)VP,SF,SG; 2009-09-01~ |
09481-15504-000 |
from US $0.95 |
||
|
40
|
40
09481-20504-000 FUSE(20A)VP,SF,SG; 2009-09-01~ |
09481-20504-000 |
from US $1.28 |
||
|
41
|
41
09481-25504-000 FUSE(25A)VP,SF,SG; 2009-09-01~ |
09481-25504-000 |
from US $3.74 |
||
|
42
|
42
09481-30504-000 FUSE(30A)VP,SF,SG; 2009-09-01~ |
09481-30504-000 |
from US $1.01 |
||
|
43
|
43
09481-30403-000 FUSE(30A)VP,SF,SG; 2009-09-01~ |
09481-30403-000 |
from US $7.28 |
||
|
44
|
44
38860-76F01-000 RELAY ASSYRelay, starting motor ブロアフアン リレ-; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
45
|
45
38860-76F01-000 RELAY ASSYRelay, starting motor スタ-タ モ-タ リレ-; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
46
|
46
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ デフオツガ リレ-; VP,SF,SG; 2009-09-01~ |
38860-76F01-000 |
from US $25.54 |
||
|
47
|
47
08316-1008A-000 NUTNut, idle gear shaft VP,SF,SG; 2009-09-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
48
|
48
36691-58J00-000 WIRE,PASS A/Bオプシヨン; VP,SF,SG; 2009-09-01~ |
36691-58J00-000 |
US $80.22 |
||
|
49
|
49
09407-18402-000 CLAMP(L:165)Clamp (l:165) オプシヨン; VP,SF,SG; 2009-09-01~ |
09407-18402-000 |
from US $1.98 |
||
