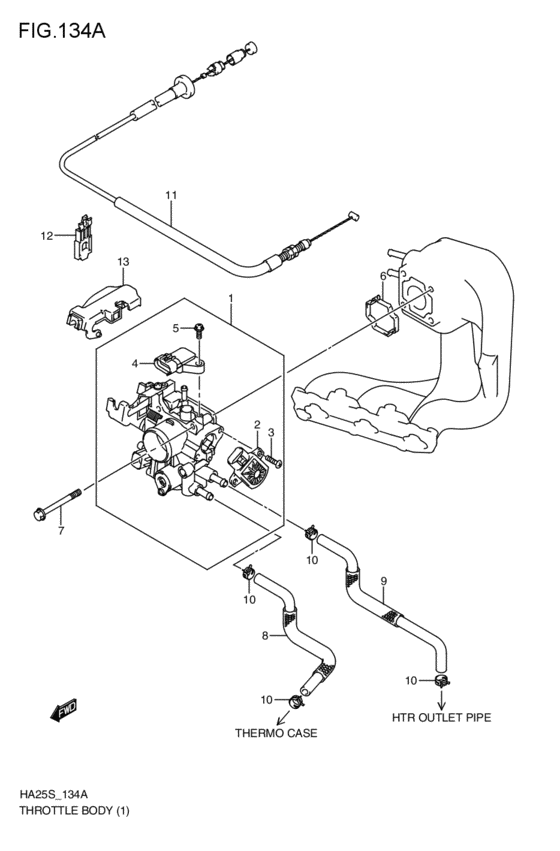

throttle body (MT,AT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- SG
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-85K00-000
ボディアッシ,スロットル
MT,AT; 2009-09-01~ |
13400-85K00-000 |
— | ||
|
2
|
2
13420-82K00-000 SENSOR,THROTTLE POSITIONMT,AT; 2009-09-01~ |
13420-82K00-000 |
from US $145.92 |
||
|
3
|
3
13428-77G1V-000 SCREW,4X12MT,AT; 2009-09-01~ |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18590-82K00-000 SENSOR ASSY,PRESSUREMT,AT; 2009-09-01~ |
18590-82K00-000 |
US $202.40 |
||
|
5
|
5
02162-0516A-000 SCREWMT,AT; 2009-09-01~ |
02162-0516A-000 |
from US $0.70 |
||
|
6
|
6
13421-85K00-000 GASKET,THROT BODYMT,AT; 2009-09-01~ |
13421-85K00-000 |
US $8.35 |
||
|
7
|
7
01550-0650A-000 BOLTBolt (6x50) MT,AT; 2009-09-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
8
|
8
13491-85K00-000
ホース,ウォータスロットルボディインレット
MT,AT; 2009-09-01~ |
13491-85K00-000 |
— | ||
|
9
|
9
13492-85K00-000
ホース,ウォータスロットルボディアウトレット
MT,AT; 2009-09-01~ |
13492-85K00-000 |
— | ||
|
10
|
10
09401-12410-000 CLIPClip, filter outlet MT,AT; 2009-09-01~ |
09401-12410-000 |
from US $1.13 |
||
|
11
|
11
15910-85K00-000
ケーブルアッシ,アクセル
MT,AT; 2009-09-01~ |
15910-85K00-000 |
— | ||
|
12
|
12
15911-58J00-000 CLAMP,ACCEL CABLEMT,AT; 2009-09-01~ |
15911-58J00-000 |
US $2.43 |
||
|
13
|
13
13471-85K00-000
カバー,スロットルボディ
MT,AT; 2009-09-01~ |
13471-85K00-000 |
— |
