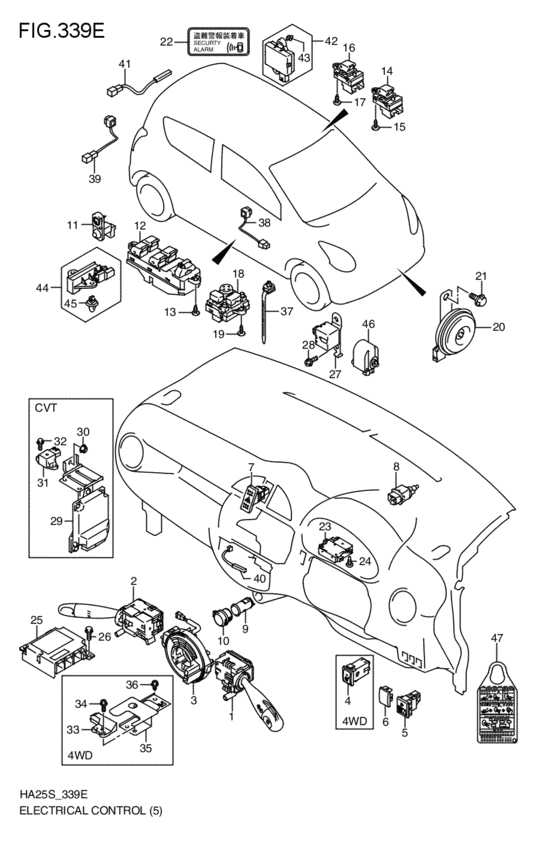

electrical control (SX; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- CVT
- grade
- SX
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37210-73H00-000
Switch assy,lighting & turn
SX; 2009-09-01~ |
37210-73H00-000 |
— | ||
| replacement | |||||
|
1
|
1
37210-73H01-000 SWITCH ASSY,LIGHTING&TURNSX; 2009-09-01~ |
37210-73H01-000 |
from US $105.50 |
||
|
2
|
2
37310-72J10-000
スイッチアッシ,ワイパ/ウォッシャ
SX:2WD; 2009-09-01~ |
37310-72J10-000 |
— | ||
|
3
|
3
37480-73H00-000 CABLE ASSY,CONTACT COILSX; 2009-09-01~ |
37480-73H00-000 |
from US $146.86 |
||
|
5
|
5
35180-81J00-000 SWITCH ASSY,HEADLAMP LEVELINGSX; 2009-09-01~ |
35180-81J00-000 |
US $51.15 |
||
|
6
|
6
37285-75F10-000 CAP,OPTION SW HOLESX; 2009-09-01~ |
37285-75F10-000 |
US $2.80 |
||
|
7
|
7
37430-62J00-V6N
スイッチアッシ,ハザードウォーニング(ベージュ)
SX; 2009-09-01~ |
37430-62J00-V6N |
— | ||
|
8
|
8
37740-75H21-000 SWITCH ASSY,STOP LAMPSX; 2009-09-01~ |
37740-75H21-000 |
from US $15.91 |
||
|
9
|
9
39420-76F00-000 BODY,SOCKETSX; 2009-09-01~ |
39420-76F00-000 |
from US $6.82 |
||
|
10
|
10
39441-63J01-P4Z COVER,SOCKETSX; 2009-09-01~ |
39441-63J01-P4Z |
US $4.96 |
||
|
11
|
11
37670-58J20-000 SWITCH ASSY,DOORSX; 2009-09-01~ |
37670-58J20-000 |
US $8.57 |
||
|
12
|
12
37990-82K30-000
スイッチアッシ,パワーウィンドマスタ
メイン スイツチ; SX; 2009-09-01~ |
37990-82K30-000 |
— | ||
| replacements | |||||
|
12
|
12
37990-82K31-000
New Genuine Part
メイン スイツチ; SX; 2009-09-01~ |
37990-82K31-000 |
— | ||
|
12
|
12
37990-82K32-000
New Genuine Part
メイン スイツチ; SX; 2009-09-01~ |
37990-82K32-000 |
— | ||
|
13
|
13
03541-0410A-000 SCREWメイン スイツチ; SX; 2009-09-01~ |
03541-0410A-000 |
from US $0.80 |
||
|
14
|
14
37995-64L00-000
SWITCH ASSY,P/W SUB
サブ スイツチ; SX; 2009-09-01~ |
37995-64L00-000 |
— | ||
| replacement | |||||
|
14
|
14
37995-59S00-000 Switch Assy,power Window Subサブ スイツチ; SX; 2009-09-01~ |
37995-59S00-000 |
US $19.32 |
||
|
15
|
15
03541-0410A-000 SCREWサブ スイツチ; SX; 2009-09-01~ |
03541-0410A-000 |
from US $0.80 |
||
|
16
|
16
37995-64L00-000
SWITCH ASSY,P/W SUB
リヤ スイツチ; SX; 2009-09-01~ |
37995-64L00-000 |
— | ||
| replacement | |||||
|
16
|
16
37995-59S00-000 Switch Assy,power Window Subリヤ スイツチ; SX; 2009-09-01~ |
37995-59S00-000 |
US $19.32 |
||
|
17
|
17
03541-0410A-000 SCREWリヤ スイツチ; SX; 2009-09-01~ |
03541-0410A-000 |
from US $0.80 |
||
|
18
|
18
37950-64L00-000 SWITCH ASSY,MIRRORSX; 2009-09-01~ |
37950-64L00-000 |
US $37.90 |
||
|
19
|
19
03541-0410A-000 SCREWSX; 2009-09-01~ |
03541-0410A-000 |
from US $0.80 |
||
|
20
|
20
38500-72J00-000
ホーンアッシ
SX; 2009-09-01~ |
38500-72J00-000 |
— | ||
| replacement | |||||
|
20
|
20
38500-72J01-000
New Genuine Part
SX; 2009-09-01~ |
38500-72J01-000 |
— | ||
|
21
|
21
09115-08001-000 BOLT(8X18)SX; 2009-09-01~ |
09115-08001-000 |
US $15.10 |
||
|
22
|
22
36771-58J00-000
LABEL,SECURITY ALARM
SX; 2009-09-01~ |
36771-58J00-000 |
— | ||
| replacement | |||||
|
22
|
22
36771-58J01-000 Label,security AlarmSX; 2009-09-01~ |
36771-58J01-000 |
US $2.80 |
||
|
23
|
23
38720-64L00-000
コントローラアッシ,パワーステアリング
SX; 2009-09-01~ |
38720-64L00-000 |
— | ||
|
24
|
24
02142-0516B-000 SCREWSX; 2009-09-01~ |
02142-0516B-000 |
from US $0.80 |
||
|
25
|
25
38910-64L00-000
コントローラアッシ,エアバッグ
SX; 2009-09-01~ |
38910-64L00-000 |
— | ||
|
26
|
26
09115-06004-000 BOLT(6X16)SX; 2009-09-01~ |
09115-06004-000 |
US $12.50 |
||
|
27
|
27
38930-85K00-000
センサアッシ,フォワードライト
SX; 2009-09-01~ |
38930-85K00-000 |
— | ||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket SX; 2009-09-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
38880-64L00-000
コントローラアッシ,CVT
SX; 2009-09-01~2010-02-01 |
38880-64L00-000 |
— | ||
| replacement | |||||
|
29
|
29
38880-64L04-000
New Genuine Part
SX; 2009-09-01~2010-02-01 |
38880-64L04-000 |
— | ||
|
29
|
29
38880-64L01-000
コントローラアッシ,CVT
SX; 2010-03-01~ |
38880-64L01-000 |
— | ||
| replacement | |||||
|
29
|
29
38880-64L04-000
New Genuine Part
SX; 2010-03-01~ |
38880-64L04-000 |
— | ||
|
30
|
30
08316-1008A-000 NUTNut, idle gear shaft SX; 2009-09-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
31
|
31
33945-73K00-000 SENSOR ASSY,SLOPESX; 2009-09-01~ |
33945-73K00-000 |
US $283.36 |
||
|
32
|
32
02162-0616A-000 SCREWSX; 2009-09-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
32
|
32
02162-0616B-000 SCREWBolt, adjust SX; 2009-09-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
37
|
37
36991-81J00-000 CLAMP,KLS SW&ANTSX; 2009-09-01~ |
36991-81J00-000 |
US $1.44 |
||
|
38
|
38
37177-64L00-000
スイッチアッシ,サイドドアキーレススタート
SX; 2009-09-01~ |
37177-64L00-000 |
— | ||
|
39
|
39
37177-82K00-000 SWITCH ASSY,BACK DOOR KLSSX; 2009-09-01~ |
37177-82K00-000 |
US $32.38 |
||
|
40
|
40
37174-82K00-000 ANTENNA ASSY,KLS INSIDESX; 2009-09-01~ |
37174-82K00-000 |
US $21.53 |
||
|
41
|
41
37174-82K30-000 ANTENNA ASSY,KLS BACK DRSX; 2009-09-01~ |
37174-82K30-000 |
US $21.53 |
||
|
42
|
42
37174-82810-000 ANTENNA SET,KLS BACK PLRSX; 2009-09-01~ |
37174-82810-000 |
US $46 |
||
|
43
|
43
37197-82K00-000 CLIP,KLS ANTENNASX; 2009-09-01~ |
37197-82K00-000 |
US $1.66 |
||
|
44
|
44
37174-82820-000 ANTENNA SET,KLS INSIDESX; 2009-09-01~ |
37174-82820-000 |
US $31.65 |
||
|
45
|
45
37197-82K00-000 CLIP,KLS ANTENNASX; 2009-09-01~ |
37197-82K00-000 |
US $1.66 |
||
|
46
|
46
38590-82K00-000
ブザーアッシ,キーレススタート
SX; 2009-09-01~ |
38590-82K00-000 |
— | ||
| replacement | |||||
|
46
|
46
38590-82K01-000 BUZZER ASSY,KLSSX; 2009-09-01~ |
38590-82K01-000 |
US $31.65 |
||
|
47
|
47
37130-82K01-000
タッグ,キーレススタートプッシュスタート
SX; 2009-09-01~2010-01-01 |
37130-82K01-000 |
— | ||
| replacement | |||||
|
47
|
47
37130-82K11-000
New Genuine Part
SX; 2009-09-01~2010-01-01 |
37130-82K11-000 |
— | ||
|
47
|
47
37130-82K10-000
タッグ,プッシュ/パーキングブレーキ
SX; 2010-02-01~ |
37130-82K10-000 |
— | ||
| replacement | |||||
|
47
|
47
37130-82K11-000
New Genuine Part
SX; 2010-02-01~ |
37130-82K11-000 |
— | ||
