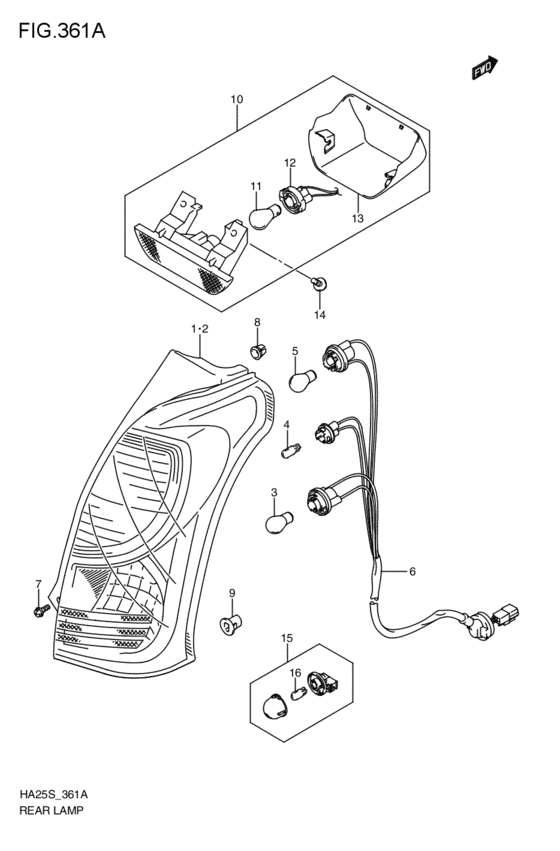

rear lamp / ル - ムランプ (2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- CVT
- grade
- SX
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-64L00-000 LAMP UNIT,RR COMB,R2009-09-01~ |
35650-64L00-000 |
US $142.78 |
||
|
2
|
2
35670-64L00-000 LAMP UNIT,RR COMB,L2009-09-01~ |
35670-64L00-000 |
US $142.78 |
||
|
3
|
3
09471-12046-000 BULB(12V21/5W)STANLEY A4964E; 2009-09-01~ |
09471-12046-000 |
from US $4.15 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY A4964E; 2009-09-01~ |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12146-000 BULB(12V16W)Bulb (12v18w) 2009-09-01~ |
09471-12146-000 |
from US $3.36 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER)アンバ-; 2009-09-01~ |
09471-12186-000 |
from US $5.65 |
||
|
6
|
6
35658-64L01-000
ソケット/コードアッシ
2009-09-01~ |
35658-64L01-000 |
— | ||
| replacement | |||||
|
6
|
6
35658-64L02-000
New Genuine Part
2009-09-01~ |
35658-64L02-000 |
— | ||
|
7
|
7
02162-0620E-000 SCREW2009-09-01~ |
02162-0620E-000 |
US $11.80 |
||
|
8
|
8
35153-63G00-000 GROMMET,RR COMB LAMP2009-09-01~ |
35153-63G00-000 |
US $2.69 |
||
|
9
|
9
35153-54G00-000 GROMMET,RR COMB LAMP2009-09-01~ |
35153-54G00-000 |
US $1.95 |
||
|
10
|
10
35810-64L11-5PK
ランプアッシ,ハイマウントストップ(ブラック)
ブラツク; SG,SX,GS; 2009-09-01~ |
35810-64L11-5PK |
— | ||
|
11
|
11
09471-12045-000 BULB(12V21W)2009-09-01~ |
09471-12045-000 |
from US $4.41 |
||
|
12
|
12
35818-73H11-000 SOCKET&CORD ASSYSG,SX,GS; 2009-09-01~ |
35818-73H11-000 |
US $11.52 |
||
|
13
|
13
35821-64L00-5PK
カバー,ハイマウントストップランプ(ブラック)
ブラツク; 2009-09-01~ |
35821-64L00-5PK |
— | ||
|
14
|
14
02142-0616A-000 SCREW2009-09-01~ |
02142-0616A-000 |
from US $0.76 |
||
|
15
|
15
35910-75F00-000
Lamp assy,license
2009-09-01~ |
35910-75F00-000 |
— | ||
| replacement | |||||
|
15
|
15
35910-75F01-000 Lamp assy,license2009-09-01~ |
35910-75F01-000 |
US $14.57 |
||
|
16
|
16
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2009-09-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
16
|
16
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2009-09-01~ |
09471-12216-000 |
from US $2.77 |
||
