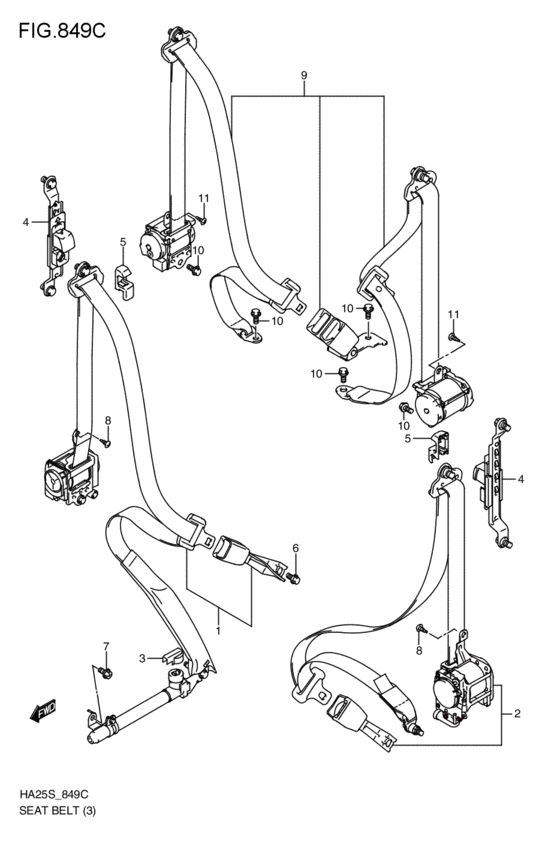

seat belt (SX; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- CVT
- grade
- SX
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-64L30-GGU
ベルトアッシ,フロント,ライト(ベージュ)
SX; 2009-09-01~ |
84901-64L30-GGU |
— | ||
| replacement | |||||
|
1
|
1
84901-64L32-GGU
New Genuine Part
SX; 2009-09-01~ |
84901-64L32-GGU |
— | ||
|
2
|
2
84902-64L20-GGU
ベルトアッシ,フロント,レフト(ベージュ)
SX; 2009-09-01~ |
84902-64L20-GGU |
— | ||
| replacement | |||||
|
2
|
2
84902-64L21-GGU
New Genuine Part
SX; 2009-09-01~ |
84902-64L21-GGU |
— | ||
|
3
|
3
84927-72J00-000 CAP,LAP PT CONNECTORSX; 2009-09-01~ |
84927-72J00-000 |
US $1.44 |
||
|
4
|
4
84990-79K00-6GS ADJUSTER ASSY,FR SHOULDER(GRAYSX; 2009-09-01~ |
84990-79K00-6GS |
US $50.42 |
||
|
5
|
5
84991-79K00-6GS COVER,SHOULDER ADJUSTERSX; 2009-09-01~ |
84991-79K00-6GS |
US $6.84 |
||
|
6
|
6
09117-11002-000 BOLT(11X20)SX; 2009-09-01~ |
09117-11002-000 |
US $20.20 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket SX; 2009-09-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
03141-0612A-000 SCREWSX; 2009-09-01~ |
03141-0612A-000 |
US $0.76 |
||
|
9
|
9
84908-64L00-GGU
ベルトアッシ,リヤ(ベージュ)
SX; 2009-09-01~ |
84908-64L00-GGU |
— | ||
| replacement | |||||
|
9
|
9
84908-64L01-GGU
New Genuine Part
SX; 2009-09-01~ |
84908-64L01-GGU |
— | ||
|
10
|
10
09103-11002-000 BOLT(7/16X22)SX; 2009-09-01~ |
09103-11002-000 |
US $18 |
||
|
11
|
11
09132-06008-000 SCREW(6X12)SX; 2009-09-01~ |
09132-06008-000 |
US $12.90 |
||
