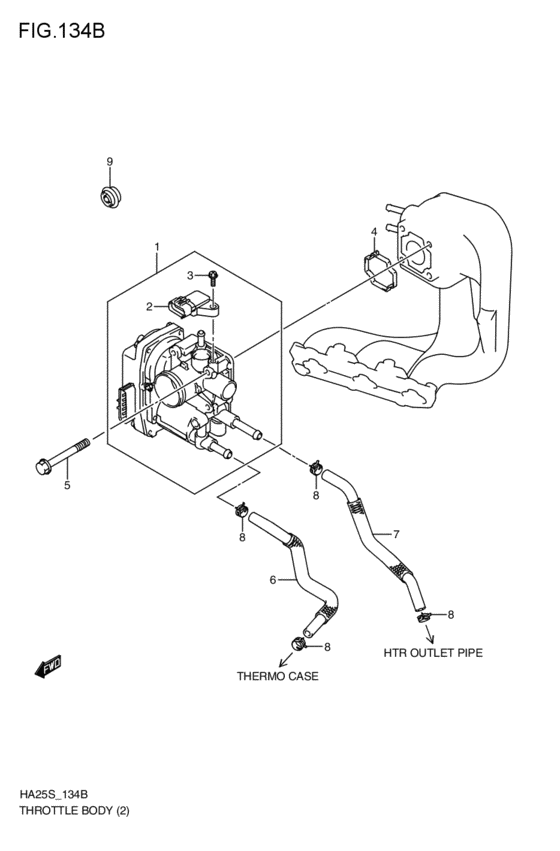

throttle body (CVT; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- CVT
- grade
- SX
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-85K10-000
ボディアッシ,スロットル
CVT; 2009-09-01~ |
13400-85K10-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-85K11-000
New Genuine Part
CVT; 2009-09-01~ |
13400-85K11-000 |
— | ||
|
2
|
2
18590-82K00-000 SENSOR ASSY,PRESSURECVT; 2009-09-01~ |
18590-82K00-000 |
US $202.40 |
||
|
3
|
3
02162-0516A-000 SCREWCVT; 2009-09-01~ |
02162-0516A-000 |
from US $0.70 |
||
|
4
|
4
13421-85K00-000 GASKET,THROT BODYCVT; 2009-09-01~ |
13421-85K00-000 |
US $8.35 |
||
|
5
|
5
01550-0650A-000 BOLTBolt (6x50) CVT; 2009-09-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
6
|
6
13491-85K00-000
ホース,ウォータスロットルボディインレット
CVT; 2009-09-01~ |
13491-85K00-000 |
— | ||
|
7
|
7
13492-85K10-000
ホース,ウォータスロットルボディアウトレット
CVT; 2009-09-01~ |
13492-85K10-000 |
— | ||
|
8
|
8
09401-12410-000 CLIPClip, filter outlet CVT; 2009-09-01~ |
09401-12410-000 |
from US $1.13 |
||
|
9
|
9
09250-14009-000 CAP(OD:22)CVT; 2009-09-01~ |
09250-14009-000 |
US $14.40 |
||
