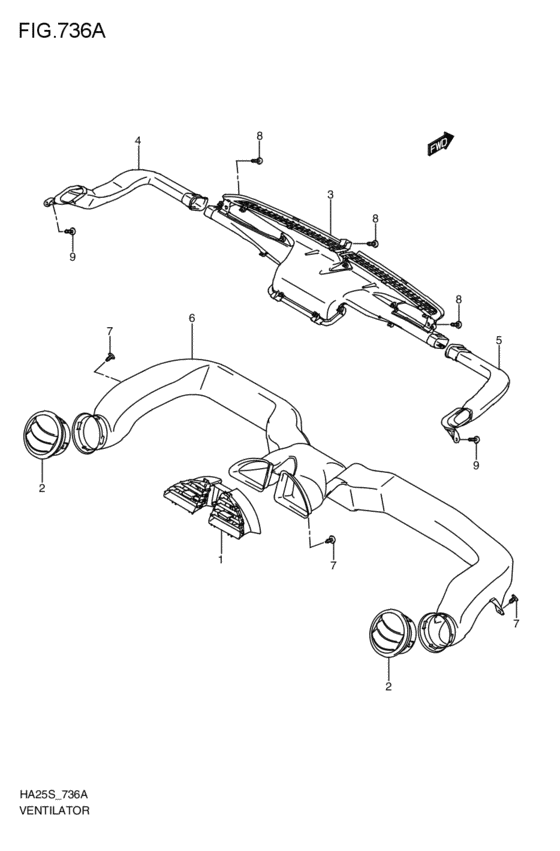

ventilator (2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- CVT
- grade
- SX
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73610-64L00-V6N LOUVER,CTR VENTベ-ジュ; 2009-09-01~ |
73610-64L00-V6N |
US $30.73 |
||
|
2
|
2
73630-58J01-BHK
ルーバ,サイドベント(ブラウン/シルバー)
ブラウン/シルバ-; SX; 2009-09-01~ |
73630-58J01-BHK |
— | ||
|
3
|
3
73661-64L00-000
ノズル,デフロスタ
2009-09-01~ |
73661-64L00-000 |
— | ||
|
4
|
4
73681-64L00-000
ダクト,デミスタライト
2009-09-01~ |
73681-64L00-000 |
— | ||
|
5
|
5
73691-64L00-000
ダクト,デミスタレフト
2009-09-01~ |
73691-64L00-000 |
— | ||
|
6
|
6
74621-64L00-000
ダクト,ベント
2009-09-01~ |
74621-64L00-000 |
— | ||
|
7
|
7
03141-0512A-000 SCREWScrew, belt cooling duct 2009-09-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
8
|
8
03541-0516A-000 SCREW2009-09-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
9
|
9
03541-0516A-000 SCREW2009-09-01~ |
03541-0516A-000 |
from US $0.68 |
