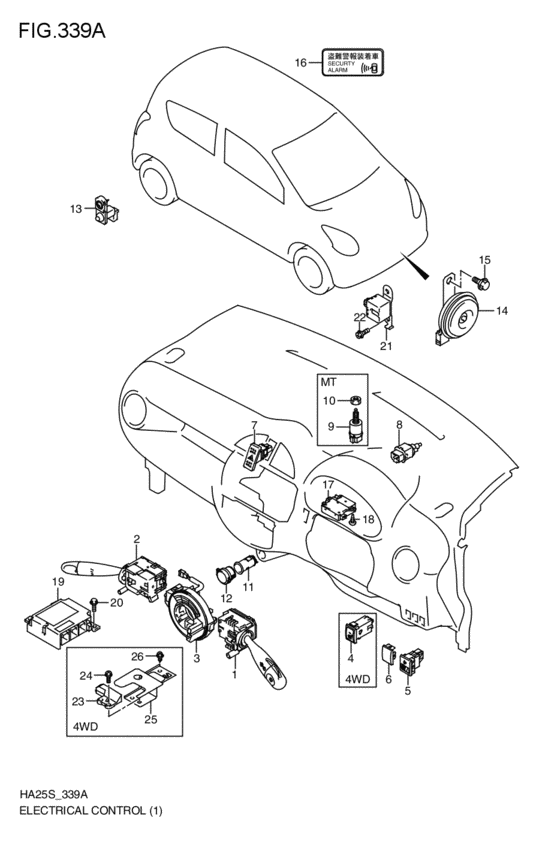

electrical control (VP; 2009-09-01~) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- VP
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37210-73H00-000
Switch assy,lighting & turn
VP; 2009-09-01~ |
37210-73H00-000 |
— | ||
| replacement | |||||
|
1
|
1
37210-73H01-000 SWITCH ASSY,LIGHTING&TURNVP; 2009-09-01~ |
37210-73H01-000 |
from US $105.50 |
||
|
2
|
2
37310-72J10-000
スイッチアッシ,ワイパ/ウォッシャ
VP:2WD; 2009-09-01~ |
37310-72J10-000 |
— | ||
|
3
|
3
37480-73H00-000 CABLE ASSY,CONTACT COILVP; 2009-09-01~ |
37480-73H00-000 |
from US $160.56 |
||
|
5
|
5
35180-81J00-000 SWITCH ASSY,HEADLAMP LEVELINGVP; 2009-09-01~ |
35180-81J00-000 |
US $51.15 |
||
|
6
|
6
37285-75F10-000 CAP,OPTION SW HOLEVP; 2009-09-01~ |
37285-75F10-000 |
from US $1.94 |
||
|
7
|
7
37430-62J00-V6N
スイッチアッシ,ハザードウォーニング(ベージュ)
VP; 2009-09-01~ |
37430-62J00-V6N |
— | ||
|
8
|
8
37740-75H21-000 SWITCH ASSY,STOP LAMPVP; 2009-09-01~ |
37740-75H21-000 |
from US $19.14 |
||
|
9
|
9
37970-76F01-000
Switch assy,clutch start
VP:MT; 2009-09-01~ |
37970-76F01-000 |
— | ||
| replacement | |||||
|
9
|
9
37970-76F02-000 SWITCH ASSY,CLUTCH STARTVP:MT; 2009-09-01~ |
37970-76F02-000 |
US $21.34 |
||
|
10
|
10
09140-10043-000 NUTNut, tie rod rh thread VP:MT; 2009-09-01~ |
09140-10043-000 |
from US $0.91 |
||
|
11
|
11
39420-76F00-000 BODY,SOCKETVP; 2009-09-01~ |
39420-76F00-000 |
from US $8.60 |
||
|
12
|
12
39441-63J01-P4Z COVER,SOCKETVP; 2009-09-01~ |
39441-63J01-P4Z |
from US $4.16 |
||
|
13
|
13
37670-58J20-000 SWITCH ASSY,DOORVP; 2009-09-01~ |
37670-58J20-000 |
from US $7.43 |
||
|
14
|
14
38500-72J00-000
ホーンアッシ
VP; 2009-09-01~ |
38500-72J00-000 |
— | ||
| replacement | |||||
|
14
|
14
38500-72J01-000
New Genuine Part
VP; 2009-09-01~ |
38500-72J01-000 |
— | ||
|
15
|
15
09115-08001-000 BOLT(8X18)VP; 2009-09-01~ |
09115-08001-000 |
from US $1.01 |
||
|
16
|
16
36771-58J00-000
LABEL,SECURITY ALARM
VP; 2009-09-01~ |
36771-58J00-000 |
— | ||
| replacement | |||||
|
16
|
16
36771-58J01-000 Label,security AlarmVP; 2009-09-01~ |
36771-58J01-000 |
US $2.80 |
||
|
17
|
17
38720-64L00-000
コントローラアッシ,パワーステアリング
VP; 2009-09-01~ |
38720-64L00-000 |
— | ||
|
18
|
18
02142-0516B-000 SCREWVP; 2009-09-01~ |
02142-0516B-000 |
from US $0.96 |
||
|
19
|
19
38910-64L10-000
コントローラアッシ,エアバッグ
VP; 2009-09-01~ |
38910-64L10-000 |
— | ||
|
20
|
20
09115-06004-000 BOLT(6X16)VP; 2009-09-01~ |
09115-06004-000 |
US $12.50 |
||
|
21
|
21
38930-85K00-000
センサアッシ,フォワードライト
VP; 2009-09-01~ |
38930-85K00-000 |
— | ||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket VP; 2009-09-01~ |
02162-0612A-000 |
from US $0.79 |
||
