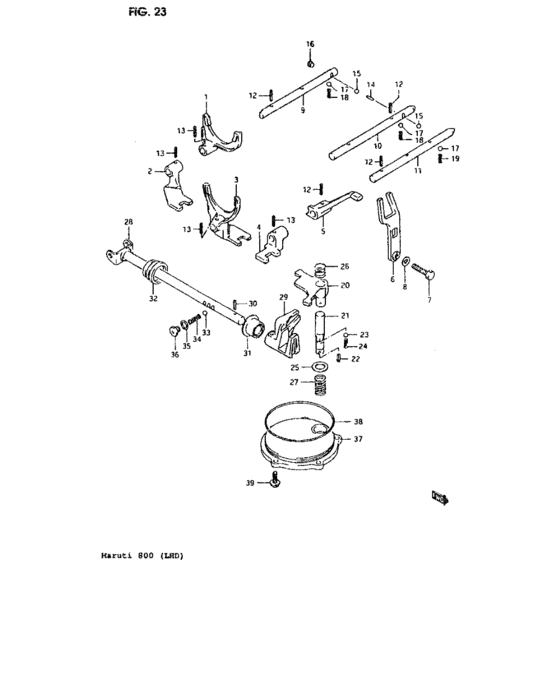

Gear shift fork (GEAR SHIFT FORK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-84301-000 FORK,LOW SPEED GEAR SHF |
25211-84301-000 |
US $47.10 |
||
|
2
|
2
25271-84301-000 YOKE,LOW SPEED GEAR SHIFT |
25271-84301-000 |
US $56.67 |
||
|
3
|
3
25221-78006-000 FORK,HIGH SPEED GEAR SHIFT |
25221-78006-000 |
US $47.10 |
||
|
4
|
4
25261-84301-000 YOKE,REVERSE GEAR SHIFT |
25261-84301-000 |
US $35.88 |
||
|
5
|
5
25251-M7800-000
Arm, reverse gear shaft
|
25251-M7800-000 |
— | ||
|
6
|
6
25460-M8430-000
Lever, reverse gear shift
|
25460-M8430-000 |
— | ||
|
7
|
7
25711-78000-000 BOLT,REV GEAR SHF LEVER 10X31 |
25711-78000-000 |
US $2.83 |
||
|
8
|
8
09168-V1000-700
Washer
|
09168-V1000-700 |
— | ||
|
9
|
9
25411-M8430-000
Shaft, low speed gear shift
|
25411-M8430-000 |
— | ||
|
10
|
10
25421-M7800-200
Shaft, high speed gear shift
|
25421-M7800-200 |
— | ||
|
11
|
11
25451-M7800-100
Shaft, reverse gear shift
|
25451-M7800-100 |
— | ||
|
12
|
12
09205-04003-000 PIN,SPRING(4.5X18) |
09205-04003-000 |
from US $0.45 |
||
|
13
|
13
09205-04009-000 PIN,SPRING(4.5X20) |
09205-04009-000 |
from US $0.29 |
||
| replacement | |||||
|
13
|
13
09205-04015-000 PIN,SPRING(4.5X20) |
09205-04015-000 |
from US $3.56 |
||
|
14
|
14
09261-M0300-200
Roller
|
09261-M0300-200 |
— | ||
|
15
|
15
06111-12004-000 BALL |
06111-12004-000 |
from US $1.06 |
||
|
16
|
16
09245-M1000-200
Plug
|
09245-M1000-200 |
— | ||
|
17
|
17
06111-10003-000 BALL |
06111-10003-000 |
from US $0.96 |
||
|
18
|
18
09440-M0705-100
Spring
|
09440-M0705-100 |
— | ||
|
19
|
19
09440-M0700-500
Spring, outer
|
09440-M0700-500 |
— | ||
|
20
|
20
25541-78502-000 ARM,GEAR SHIFT |
25541-78502-000 |
US $33.86 |
||
|
21
|
21
25571-M7850-200
Shaft, gear shift arm
|
25571-M7850-200 |
— | ||
|
22
|
22
04221-M0408-900
Pin, gear shift arm shaft
|
04221-M0408-900 |
— | ||
|
23
|
23
06111-10003-000 BALL |
06111-10003-000 |
from US $0.96 |
||
|
24
|
24
09440-M0700-500
Spring, outer
|
09440-M0700-500 |
— | ||
|
25
|
25
09166-14013-000 WASHER |
09166-14013-000 |
US $14.40 |
||
|
26
|
26
09440-M1701-000
Spring
|
09440-M1701-000 |
— | ||
|
27
|
27
09440-M1701-100
Spring
|
09440-M1701-100 |
— | ||
|
28
|
28
25510-M8430-100
Shaft, gear shift
|
25510-M8430-100 |
— | ||
|
29
|
29
25521-M7850-000
Yoke, gear shift
|
25521-M7850-000 |
— | ||
|
30
|
30
09205-05005-000
スプリングピン
|
09205-05005-000 |
— | ||
| replacement | |||||
|
30
|
30
09205-05013-000 PIN,SPRING(5X22)Pin, spring (5x22) |
09205-05013-000 |
from US $2.94 |
||
|
31
|
31
09289-14001-000 オイルシール,14X25X19 |
09289-14001-000 |
US $11.27 |
||
| replacements | |||||
|
31
|
31
25517-60B01-000 SEAL,GEAR SHIFT OIL |
25517-60B01-000 |
from US $8.66 |
||
|
31
|
31
25517-60B00-000 Oil seal14x25x19 |
25517-60B00-000 |
US $11.27 |
||
|
32
|
32
28278-M7800-100
Boot, gear shift control shaft
|
28278-M7800-100 |
— | ||
|
33
|
33
06111-10003-000 BALL |
06111-10003-000 |
from US $0.96 |
||
|
34
|
34
09440-M0700-500
Spring, outer
|
09440-M0700-500 |
— | ||
|
35
|
35
09168-M1000-700
Gasket
|
09168-M1000-700 |
— | ||
|
36
|
36
09128-10002-000 BOLT(10X9) |
09128-10002-000 |
from US $0.47 |
||
|
37
|
37
25573-M7850-000
Cap, arm shift
|
25573-M7850-000 |
— | ||
|
38
|
38
09280-M9600-100
O ring
|
09280-M9600-100 |
— | ||
|
39
|
39
01517-M0620-600
Bolt canister mounting
|
01517-M0620-600 |
— | ||
