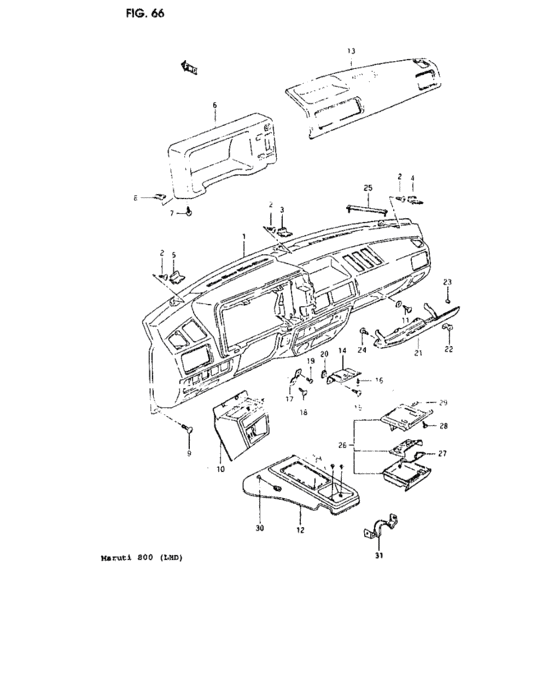

Instrument panel (INSTRUMENT PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-84300-4BS
PANEL,INSTR MAIN
|
73111-84300-4BS |
— | ||
|
2
|
2
09139-06037-000
スクリュ,6X16
|
09139-06037-000 |
— | ||
| replacement | |||||
|
2
|
2
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.32 |
||
|
3
|
3
73821-84000-4BS
Cover,panel main,center
|
73821-84000-4BS |
— | ||
|
4
|
4
73822-84000-4BS COVER,PANEL MAIN,R |
73822-84000-4BS |
US $3.46 |
||
|
5
|
5
73823-84000-4BS COVER,PANEL MAIN,L |
73823-84000-4BS |
US $3.46 |
||
|
6
|
6
73310-84301-281
Bezel, cluster
|
73310-84301-281 |
— | ||
| replacement | |||||
|
6
|
6
73310-84302-000 BEZEL,INSTPNL CLUSTER |
73310-84302-000 |
US $53.73 |
||
|
7
|
7
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
7
|
7
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
8
|
8
09148-M0500-400
Nut, front ashtray
|
09148-M0500-400 |
— | ||
|
9
|
9
09136-M0606-100
Screw
|
09136-M0606-100 |
— | ||
|
10
|
10
75821-M8430-000
Box, console upper
|
75821-M8430-000 |
— | ||
|
11
|
11
03211-06168-000
Screw 6x16
|
03211-06168-000 |
— | ||
| replacement | |||||
|
11
|
11
03211-0616A-000 SCREW |
03211-0616A-000 |
US $0.80 |
||
|
12
|
12
75810-M8401-200
Box, console lower
|
75810-M8401-200 |
— | ||
|
13
|
13
73510-84300-4BS
Pad,instrument panel
|
73510-84300-4BS |
— | ||
|
14
|
14
73121-M8430-000
Stay, instpnl center lower
|
73121-M8430-000 |
— | ||
|
15
|
15
03141-M0516-900
Screw
|
03141-M0516-900 |
— | ||
|
16
|
16
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
17
|
17
73131-84300-000 BRACKET,INSTPN |
73131-84300-000 |
US $4.60 |
||
|
18
|
18
09139-06037-000
スクリュ,6X16
|
09139-06037-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.32 |
||
|
19
|
19
02142-M0612-500
Screw
|
02142-M0612-500 |
— | ||
|
20
|
20
09148-05020-000 NUT |
09148-05020-000 |
from US $0.45 |
||
|
21
|
21
73421-84000-4BS LID,GLOVE BOX |
73421-84000-4BS |
US $83.20 |
||
|
22
|
22
62534-70001-000 LOCK,GROVE BOX LID |
62534-70001-000 |
US $1.92 |
||
|
23
|
23
09329-M0300-100
Cushion
|
09329-M0300-100 |
— | ||
|
24
|
24
03142-04129-000
Screw
|
03142-04129-000 |
— | ||
| replacement | |||||
|
24
|
24
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
25
|
25
62391-78000-000
BRACKET,SPEAKER
|
62391-78000-000 |
— | ||
|
26
|
26
89810-M8400-000
Ashtray, front
|
89810-M8400-000 |
— | ||
|
27
|
27
89815-M8400-000
Spring, protector
|
89815-M8400-000 |
— | ||
|
28
|
28
03141-05106-000
New Genuine Part
|
03141-05106-000 |
— | ||
| replacement | |||||
|
28
|
28
03142-0510B-000 SCREW |
03142-0510B-000 |
US $0.80 |
||
|
29
|
29
09148-M0500-400
Nut, front ashtray
|
09148-M0500-400 |
— | ||
|
30
|
30
03141-M0516-500
Screw
|
03141-M0516-500 |
— | ||
|
31
|
31
39321-M8401-000
Bracket, console mounting
|
39321-M8401-000 |
— | ||
