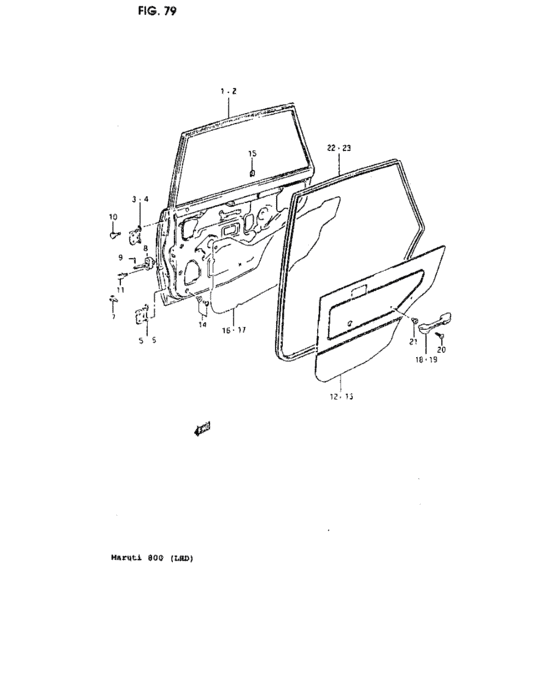

Rear door panel (REAR DOOR PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-M8404-000
Panel assy, rear door rh
|
68003-M8404-000 |
— | ||
|
2
|
2
68004-M8404-000
Panel assy, rear door lh
|
68004-M8404-000 |
— | ||
|
3
|
3
69310-M8400-000
Hinge, rear door upper rh
|
69310-M8400-000 |
— | ||
|
4
|
4
69320-M8400-000
Hinge, rear door upper lh
|
69320-M8400-000 |
— | ||
|
5
|
5
69330-M8400-000
Hinge, rear door lower rh
|
69330-M8400-000 |
— | ||
|
6
|
6
69340-M8400-000
Hinge, rear door lower lh
|
69340-M8400-000 |
— | ||
|
7
|
7
01734-08206-000
Bolt
|
01734-08206-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
8
|
8
81830-M8400-100
Stop, rear door open
|
81830-M8400-100 |
— | ||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
01734-08206-000
Bolt
|
01734-08206-000 |
— | ||
| replacement | |||||
|
10
|
10
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
11
|
11
81891-84000-000
ボルト
|
81891-84000-000 |
— | ||
| replacements | |||||
|
11
|
11
01580-0625A-000 Bolt |
01580-0625A-000 |
US $0.96 |
||
|
11
|
11
01580-06253-000
Bolt, ignition
|
01580-06253-000 |
— | ||
|
12
|
12
83730-M8403-200
Trim, rear door rh
GREY,,Belgium,2,6,7 |
83730-M8403-200 |
— | ||
|
13
|
13
83740-M8403-200
Trim, rear door lh
GREY,,Belgium,2,6,7 |
83740-M8403-200 |
— | ||
|
14
|
14
09409-M0830-900
Clip, door trim
|
09409-M0830-900 |
— | ||
|
15
|
15
78991-78000-000
クリップ,スカルプ
|
78991-78000-000 |
— | ||
| replacement | |||||
|
15
|
15
78991-78001-000 CLIP,DR OUT WEATHERSTRIP |
78991-78001-000 |
from US $1.52 |
||
|
16
|
16
83912-M8400-000
Cover, rear door sealing rh
|
83912-M8400-000 |
— | ||
|
17
|
17
83922-M8400-000
Cover, rear door sealing lh
|
83922-M8400-000 |
— | ||
|
18
|
18
84471-M8401-000
Armrest, rear door rh
GREY |
84471-M8401-000 |
— | ||
|
18
|
18
84471-M8402-000
Armrest, rear door rh
BLACK |
84471-M8402-000 |
— | ||
|
19
|
19
84481-M8401-000
Armrest, rear door lh
GREY |
84481-M8401-000 |
— | ||
|
19
|
19
84481-M8402-000
Armrest, rear door rh
BLACK |
84481-M8402-000 |
— | ||
|
20
|
20
03241-06255-000
スクリュ
|
03241-06255-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0625A-000 SCREW |
03241-0625A-000 |
from US $1.87 |
||
|
21
|
21
09148-M0600-700
Nut, license plate
|
09148-M0600-700 |
— | ||
|
22
|
22
84661-M8400-100
Weatherstrip, opening rh
|
84661-M8400-100 |
— | ||
|
23
|
23
84671-M8400-100
Weatherstrip, opening lh
|
84671-M8400-100 |
— | ||
