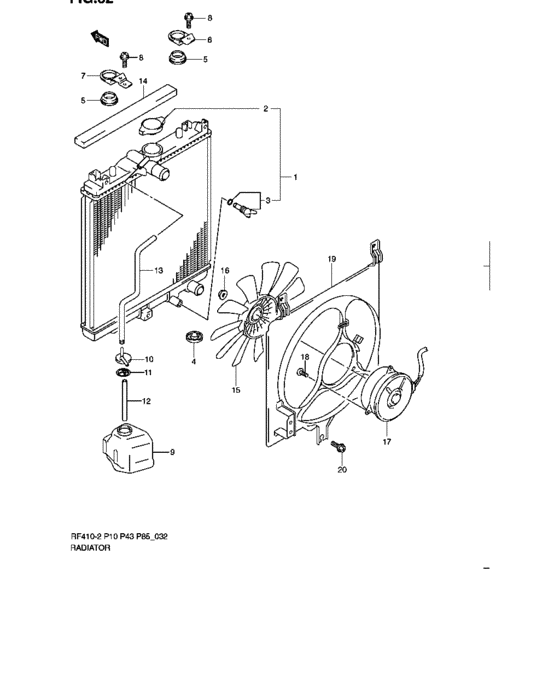

Radiator (RADIATOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-M79F0-200
Radiator assy
MODIFIED FROM ORIGINAL,P/NO.17700M79F20 |
17700-M79F0-200 |
— | ||
|
2
|
2
17820-M79F1-000
Cap, radiator
|
17820-M79F1-000 |
— | ||
|
3
|
3
17751-M61A0-000
Plug assy, drain
MODIFIED FROM ORIGINAL,P/NO.17751M79F10 |
17751-M61A0-000 |
— | ||
|
4
|
4
17878-M75F0-000
Mount, radiator support lower
|
17878-M75F0-000 |
— | ||
|
5
|
5
17879-M75F0-000
Mount, radiator support upper
|
17879-M75F0-000 |
— | ||
|
6
|
6
17861-M73H0-000
Bracket, radiator support rh
|
17861-M73H0-000 |
— | ||
|
7
|
7
17862-M73H0-100
Bracket, radiator support lh
|
17862-M73H0-100 |
— | ||
|
8
|
8
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
17930-M79G0-000 Tank assy, water reservoirMODIFIED FROM ORIGINAL,P/NO.17931M79G00 |
17930-M79G0-000 |
US $5.38 |
||
|
10
|
10
17932-M76G0-000
Cap, tank
|
17932-M76G0-000 |
— | ||
|
11
|
11
17933-M60B0-000
Rubber, cap
|
17933-M60B0-000 |
— | ||
|
14
|
14
17731-M79F0-000
Packing, radiator upper
|
17731-M79F0-000 |
— | ||
|
15
|
15
17111-M76G0-100
Fan, cooling
|
17111-M76G0-100 |
— | ||
|
16
|
16
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
17
|
17
17120-M76G0-000
Motor assy, cooling fan
|
17120-M76G0-000 |
— | ||
|
18
|
18
17129-M56F0-000
Screw
|
17129-M56F0-000 |
— | ||
|
19
|
19
17760-M79F0-100
Shroud
|
17760-M79F0-100 |
— | ||
|
20
|
20
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
