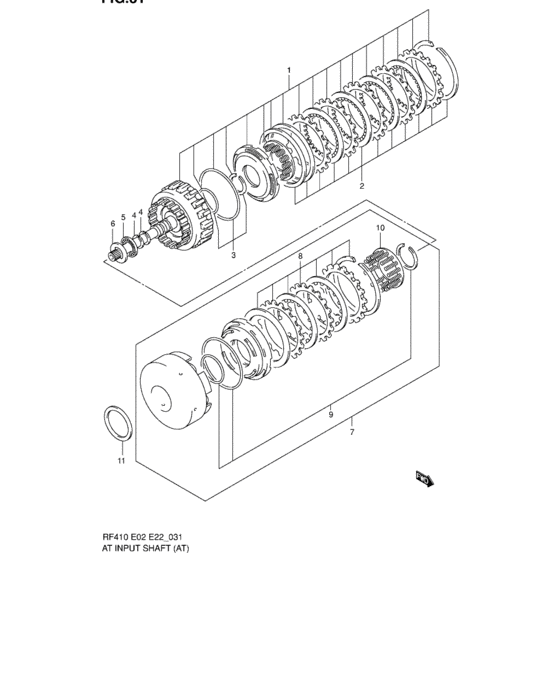

At input shaft (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-76G30-000 SHAFT ASSY,INPUT |
24100-76G30-000 |
from US $610.70 |
||
|
2
|
2
26621-76GT0-000 DISC SET,FORWARD |
26621-76GT0-000 |
from US $136.04 |
||
|
3
|
3
26622-61DT0-000 O-RING SET,FORWARD |
26622-61DT0-000 |
from US $21.90 |
||
|
4
|
4
26682-56E00-000 RING,INPUT SHAFT SEAL |
26682-56E00-000 |
from US $13.64 |
||
|
5
|
5
26691-56E00-000 BEARING,INPUT SHAFT THRUST |
26691-56E00-000 |
US $14.32 |
||
|
6
|
6
26692-56E00-000 RACE,INPUT SHAFT BRG NO.1 |
26692-56E00-000 |
US $9.31 |
||
|
6
|
6
26693-56E00-000 RACE,INPUT SHAFT BRG NO.2 |
26693-56E00-000 |
US $9.31 |
||
|
6
|
6
26694-56E00-000 RACE,INPUT SHAFT BRG NO.3 |
26694-56E00-000 |
US $9.31 |
||
|
6
|
6
26695-56E00-000 RACE,INPUT SHAFT BRG NO.4 |
26695-56E00-000 |
US $9.31 |
||
|
6
|
6
26696-56E00-000 RACE,INPUT SHAFT BRG NO.5 |
26696-56E00-000 |
US $9.31 |
||
|
6
|
6
26697-56E00-000
RACE,INPUT SHAFT BRG NO.6
|
26697-56E00-000 |
— | ||
|
7
|
7
26630-79G12-000
CLUTCH ASSY,DIRECT
|
26630-79G12-000 |
— | ||
|
8
|
8
26631-76FT0-000 DISC SET,DIRECT |
26631-76FT0-000 |
from US $109.67 |
||
|
9
|
9
26632-76GU0-000 O-RING SET,DIRECT |
26632-76GU0-000 |
from US $11.63 |
||
|
10
|
10
26662-76G10-000 SPRING,DIR CLUTCH PSTN RTN |
26662-76G10-000 |
US $23.74 |
||
|
11
|
11
09161-44001-000 WASHER(44.5X59X1.2) |
09161-44001-000 |
from US $3.42 |
||
|
11
|
11
09161-44003-000 WASHER(44.5X59X1.6) |
09161-44003-000 |
from US $3.80 |
||
|
11
|
11
09161-44005-000 WASHER(44.5X59X2) |
09161-44005-000 |
US $56.70 |
