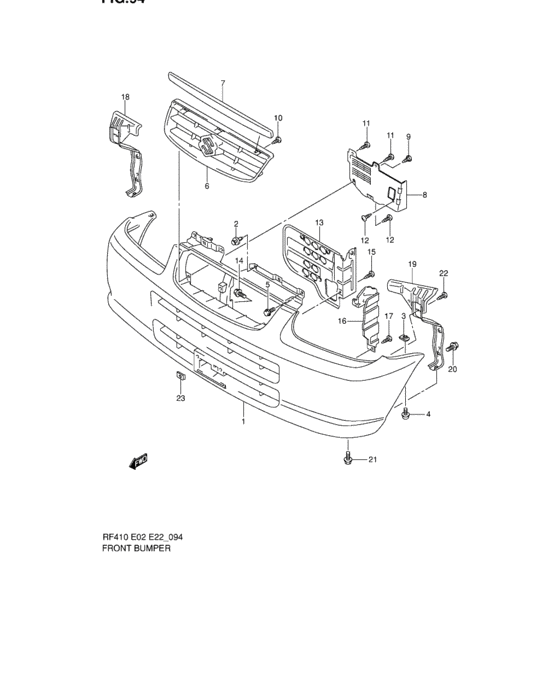

Front bumper (FRONT BUMPER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
09409-M0832-700
Clip
|
09409-M0832-700 |
— | ||
|
3
|
3
09148-05028-000 NUT |
09148-05028-000 |
from US $0.63 |
||
|
4
|
4
09136-05034-000 SCREW(5X16) |
09136-05034-000 |
from US $0.68 |
||
|
5
|
5
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
71723-M79G0-000
Cover, fr bumper
|
71723-M79G0-000 |
— | ||
|
9
|
9
09139-05056-000 SCREW(5X15.5) |
09139-05056-000 |
US $1.22 |
||
|
10
|
10
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
11
|
11
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
12
|
12
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
13
|
13
71721-M79G0-000
Panel, heat insulator
|
71721-M79G0-000 |
— | ||
|
14
|
14
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
16
|
16
71722-M79G0-000
Extension, fr bumper side
|
71722-M79G0-000 |
— | ||
|
17
|
17
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
18
|
18
71750-M79G0-000
Stay, fr bumper rh
|
71750-M79G0-000 |
— | ||
|
19
|
19
71760-M79G0-000
Stay, fr bumper lh
|
71760-M79G0-000 |
— | ||
|
20
|
20
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
20
|
20
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
22
|
22
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
23
|
23
71812-82010-000
Nut
|
71812-82010-000 |
— | ||
| replacement | |||||
|
23
|
23
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.34 |
||
