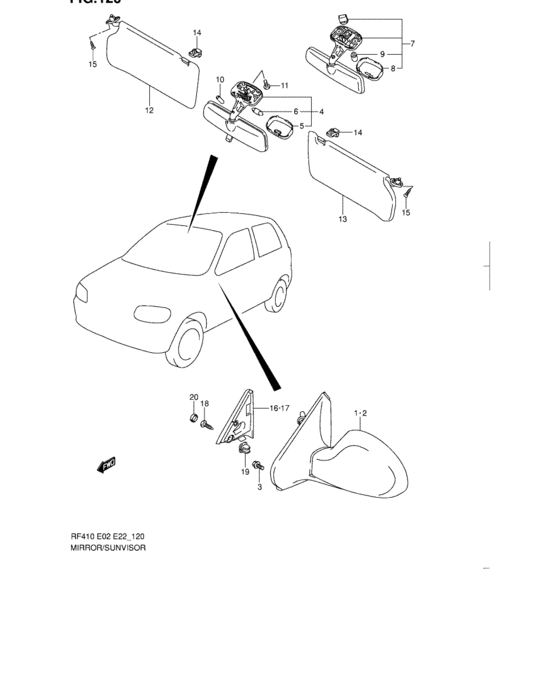

Mirror/sunvisor (MIRROR/SUNVISOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
02162-05163-000
Bolt
|
02162-05163-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0516A-000 SCREW |
02162-0516A-000 |
from US $0.70 |
||
|
4
|
4
84703-81A01-V12
Mirror assy, inside rr view (g
TYPE 1,->84703-81A11-V12 |
84703-81A01-V12 |
— | ||
| replacement | |||||
|
4
|
4
84703-81A14-V12 MIRROR ASSY,INS RR VIEWTYPE 1,->84703-81A11-V12 |
84703-81A14-V12 |
US $83.54 |
||
|
5
|
5
36212-81A00-000 LENS,ROOM LAMPTYPE 1 |
36212-81A00-000 |
from US $4.03 |
||
|
6
|
6
09471-12187-000 BULB(12V8W,TOKAI DENSO)TYPE 1 |
09471-12187-000 |
from US $2.75 |
||
|
7
|
7
84703-81A11-V12
Mirror assy, inside rr view
TYPE 2,TYPE 3 |
84703-81A11-V12 |
— | ||
| replacement | |||||
|
7
|
7
84703-81A14-V12 MIRROR ASSY,INS RR VIEWTYPE 2,TYPE 3 |
84703-81A14-V12 |
US $83.54 |
||
|
8
|
8
36212-81A00-000 LENS,ROOM LAMPTYPE 2,TYPE 3 |
36212-81A00-000 |
from US $4.03 |
||
|
9
|
9
09471-12113-000 BULB(12V8W)TYPE 2,TYPE 3 |
09471-12113-000 |
from US $1.69 |
||
|
10
|
10
84782-M76G0-000
Support, inside mirror
|
84782-M76G0-000 |
— | ||
|
11
|
11
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
12
|
12
84801-79G11-V12
Sunvisor assy, rh
LHD,LABEL:WHITE |
84801-79G11-V12 |
— | ||
| replacement | |||||
|
12
|
12
84801-79G13-V12
SUNVISOR ASSY,R
LHD,LABEL:WHITE |
84801-79G13-V12 |
— | ||
|
12
|
12
84801-79G12-V12
Sunvisor assy, rh
LHD,LABEL:GRAY |
84801-79G12-V12 |
— | ||
| replacement | |||||
|
12
|
12
84801-79G13-V12
SUNVISOR ASSY,R
LHD,LABEL:GRAY |
84801-79G13-V12 |
— | ||
|
12
|
12
84801-79G21-V12
Sunvisor assy, rh
RHD,LABEL:WHITE |
84801-79G21-V12 |
— | ||
| replacement | |||||
|
12
|
12
84801-79G23-V12
Sunvisor assy,r(gray)
RHD,LABEL:WHITE |
84801-79G23-V12 |
— | ||
|
12
|
12
84801-79G22-V12
Sunvisor assy, rh
RHD,LABEL:GRAY |
84801-79G22-V12 |
— | ||
| replacement | |||||
|
12
|
12
84801-79G23-V12
Sunvisor assy,r(gray)
RHD,LABEL:GRAY |
84801-79G23-V12 |
— | ||
|
13
|
13
84802-79G31-V12
Sunvisor assy, lh
LHD,LABEL:WHITE |
84802-79G31-V12 |
— | ||
| replacement | |||||
|
13
|
13
84802-79G33-V12 SUNVISOR ASSY,LLHD,LABEL:WHITE |
84802-79G33-V12 |
US $70.29 |
||
|
13
|
13
84802-79G32-V12
Sunvisor assy, lh
LHD,LABEL:GRAY |
84802-79G32-V12 |
— | ||
| replacement | |||||
|
13
|
13
84802-79G33-V12 SUNVISOR ASSY,LLHD,LABEL:GRAY |
84802-79G33-V12 |
US $70.29 |
||
|
13
|
13
84802-79G21-V12
Sunvisor assy, lh
RHD,LABEL:WHITE |
84802-79G21-V12 |
— | ||
| replacement | |||||
|
13
|
13
84802-79G23-V12
Sunvisor assy,l(gray)
RHD,LABEL:WHITE |
84802-79G23-V12 |
— | ||
|
13
|
13
84802-79G22-V12
Sunvisor assy, lh
RHD,LABEL:GRAY |
84802-79G22-V12 |
— | ||
| replacement | |||||
|
13
|
13
84802-79G23-V12
Sunvisor assy,l(gray)
RHD,LABEL:GRAY |
84802-79G23-V12 |
— | ||
|
14
|
14
84851-65D00-V12 HOLDER,SUNVISOR |
84851-65D00-V12 |
US $4.27 |
||
|
15
|
15
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
15
|
15
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.96 |
||
|
18
|
18
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
18
|
18
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
19
|
19
84759-M70F0-000
Nut, garnish
|
84759-M70F0-000 |
— | ||
|
20
|
20
84776-M70F5-000
Nut
|
84776-M70F5-000 |
— | ||
