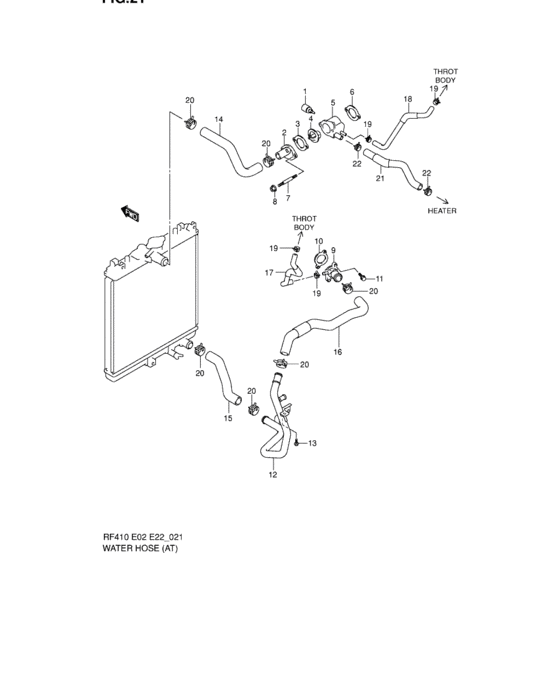

Water hose (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-M50G2-000 Sensor, water temp |
13650-M50G2-000 |
US $28.85 |
||
|
2
|
2
17561-M79F0-000 Cap, water thermo |
17561-M79F0-000 |
US $2.66 |
||
|
4
|
4
17670-M8503-000
Thermostat, water
|
17670-M8503-000 |
— | ||
|
5
|
5
17690-M79F0-100
Case, thermo
|
17690-M79F0-100 |
— | ||
|
6
|
6
17699-M53F0-100
Gasket
|
17699-M53F0-100 |
— | ||
|
7
|
7
01411-08753-000
スタッドボルト
|
01411-08753-000 |
— | ||
| replacement | |||||
|
7
|
7
01411-0875A-000 BOLT,STUD |
01411-0875A-000 |
from US $1.60 |
||
|
8
|
8
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
17550-M79F0-000 Cap, water inlet |
17550-M79F0-000 |
US $2.88 |
||
|
10
|
10
17559-73010-000 GASKET,WATER INLET PIPE |
17559-73010-000 |
from US $1.52 |
||
|
11
|
11
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
17840-79F60-000 PIPE,RDTR OUTLET |
17840-79F60-000 |
from US $61.46 |
||
|
13
|
13
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
17852-M79F0-000
Hose, radiator inlet
|
17852-M79F0-000 |
— | ||
|
15
|
15
17854-M79F1-000
Hose, radiator outlet
|
17854-M79F1-000 |
— | ||
|
16
|
16
17856-M79F1-000
Hose, water inlet
|
17856-M79F1-000 |
— | ||
|
17
|
17
17958-M79F0-000
Hose, wtr throt to inlet cap
|
17958-M79F0-000 |
— | ||
|
18
|
18
17959-M79F0-000
Hose, wtr thermo case to throt
|
17959-M79F0-000 |
— | ||
|
19
|
19
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.52 |
||
|
20
|
20
09402-32502-000 CLAMP |
09402-32502-000 |
from US $3.96 |
||
|
21
|
21
17871-M79G0-000
Hose, heater inlet
|
17871-M79G0-000 |
— | ||
|
22
|
22
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
from US $1.53 |
||
