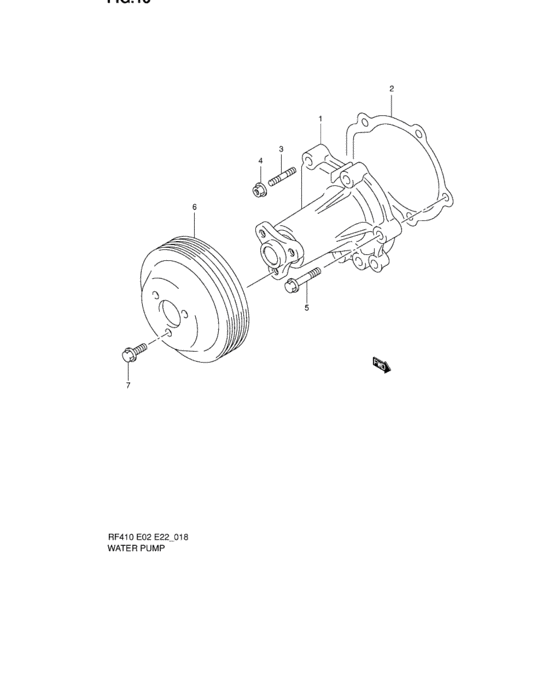

Water pump (WATER PUMP) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-M79F0-000
Pump Assy, Water
|
17400-M79F0-000 |
— | ||
|
2
|
2
17431-M7300-100
Gasket
|
17431-M7300-100 |
— | ||
|
3
|
3
01411-06253-000
Bolt, stud
|
01411-06253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0625A-000 BOLT,STUD |
01411-0625A-000 |
from US $0.68 |
||
|
4
|
4
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
01550-06303-000
Bolt (6x30)
|
01550-06303-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0630A-000 Bolt |
01550-0630A-000 |
from US $1.12 |
||
|
6
|
6
17511-M79F0-000
Pulley, water pump
|
17511-M79F0-000 |
— | ||
|
7
|
7
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
7
|
7
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
