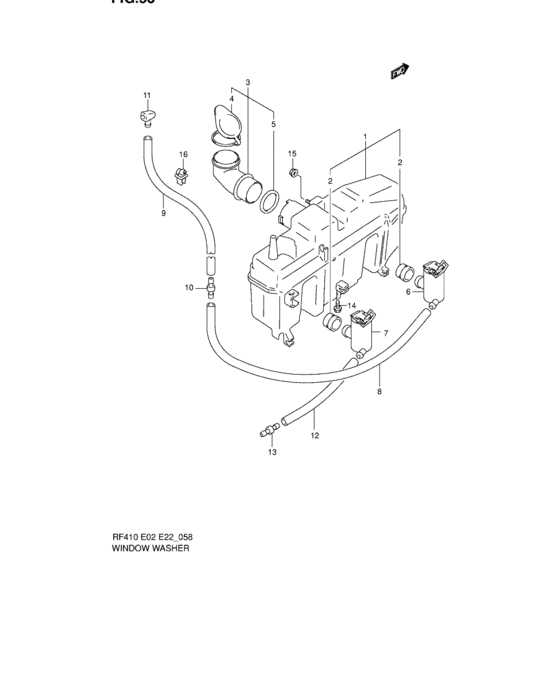

Window washer (WINDOW WASHER) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-76G10-000 TANK,WASHER |
38450-76G10-000 |
US $69.55 |
||
|
2
|
2
38453-75000-000 GROMMET |
38453-75000-000 |
from US $1.60 |
||
|
3
|
3
38402-M79F0-000
Pipe assy, washer inlet
|
38402-M79F0-000 |
— | ||
|
4
|
4
38452-M79F0-000
Cap, washer tank
|
38452-M79F0-000 |
— | ||
|
5
|
5
38454-M79F0-000
O ring, washer inlet
|
38454-M79F0-000 |
— | ||
|
6
|
6
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
from US $59.20 |
||
|
7
|
7
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
from US $59.20 |
||
|
8
|
8
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
from US $3.60 |
||
|
9
|
9
38832-76G00-000 HOSE ASSY,FR WASHER |
38832-76G00-000 |
US $11.44 |
||
|
10
|
10
38833-79501-000 VALVE,WASHER HOSE |
38833-79501-000 |
from US $4.12 |
||
|
11
|
11
38480-76G00-000 NOZZLE,WASHER |
38480-76G00-000 |
from US $7.52 |
||
|
12
|
12
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) |
38491-61A00-000 |
from US $3.60 |
||
|
13
|
13
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
from US $1.60 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
15
|
15
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
09403-07328-000
Сlamp
|
09403-07328-000 |
— | ||
| replacement | |||||
|
16
|
16
09403-07330-000 CLAMP |
09403-07330-000 |
from US $2.75 |
||
