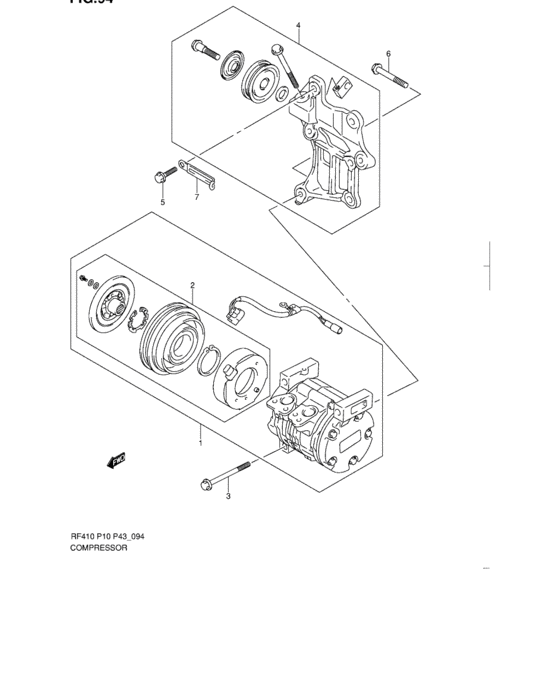

Compressor (COMPRESSOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-M67D4-000
Compressor assy
|
95200-M67D4-000 |
— | ||
|
2
|
2
95210-M67D4-000
Clutch assy, magnet
|
95210-M67D4-000 |
— | ||
|
3
|
3
01550-08753-000
Bolt
|
01550-08753-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0875B-000 Bolt |
01550-0875B-000 |
from US $1.40 |
||
|
3
|
3
01550-0875A-000 Bolt |
01550-0875A-000 |
from US $1.60 |
||
|
4
|
4
95110-M79F0-000
Bracket, compressor
|
95110-M79F0-000 |
— | ||
|
5
|
5
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
|
6
|
6
01550-08603-000
Bolt, crankcase
|
01550-08603-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0860B-000 BoltBolt, sec case |
01550-0860B-000 |
from US $6.61 |
||
|
6
|
6
01550-0860A-000 Bolt |
01550-0860A-000 |
from US $5.68 |
||
|
7
|
7
09404-08206-000 CLAMP(L:65 T:0.8)Clamp 04 MODEL |
09404-08206-000 |
from US $1.13 |
||
|
7
|
7
09404-08418-000
CLAMP(L:65)
05 MODEL |
09404-08418-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-08421-000 Clamp(L:65)05 MODEL |
09404-08421-000 |
from US $1.12 |
||
