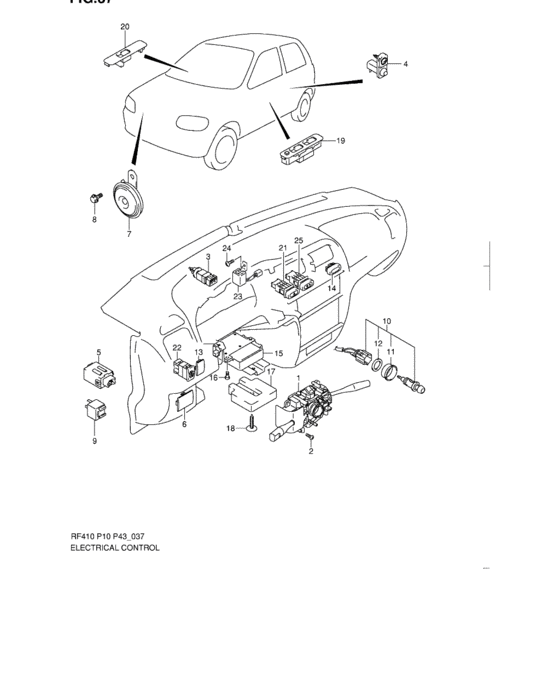

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-M79G6-000
Switch assy, combination
Chile |
37400-M79G6-000 |
— | ||
|
1
|
1
37400-M79G4-000
Switch assy, combination
Saudi Arabia |
37400-M79G4-000 |
— | ||
|
2
|
2
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-M79G0-000
Switch assy, stop lamp
|
37740-M79G0-000 |
— | ||
|
4
|
4
37670-M79G0-000
Switch assy, door
|
37670-M79G0-000 |
— | ||
|
5
|
5
38700-76G01-000 CONTROLLER ASSY,PWR DR LOCKDX |
38700-76G01-000 |
from US $54.11 |
||
|
6
|
6
37285-M75F2-000
Cap, option switch hole
|
37285-M75F2-000 |
— | ||
|
7
|
7
38500-M76F0-000
Horn assy
|
38500-M76F0-000 |
— | ||
|
8
|
8
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
from US $1.12 |
||
|
9
|
9
38610-M76G0-000
Relay, turnsignal & 4 way
|
38610-M76G0-000 |
— | ||
|
10
|
10
39400-83820-000 LIGHTER ASSY,CIGARETTE |
39400-83820-000 |
US $31.83 |
||
|
11
|
11
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
from US $2.72 |
||
|
12
|
12
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
13
|
13
37285-M75F1-000
Cap, option switch hole
|
37285-M75F1-000 |
— | ||
|
14
|
14
37285-M65D0-000
Cap, option switch hole
|
37285-M65D0-000 |
— | ||
|
15
|
15
38720-M79G1-000
Controller, power steering
W/POWER STEERING |
38720-M79G1-000 |
— | ||
|
16
|
16
02142-05163-000
Bolt
W/POWER STEERING |
02142-05163-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0516B-000 SCREWW/POWER STEERING |
02142-0516B-000 |
from US $0.96 |
||
|
16
|
16
02142-0516A-000 SCREWScrew W/POWER STEERING |
02142-0516A-000 |
from US $0.76 |
||
|
17
|
17
38721-79G00-000
ABSORBER,EPS CONT
W/POWER STEERING |
38721-79G00-000 |
— | ||
|
18
|
18
09409-08321-5ES CLIP(BLACK)W/POWER STEERING |
09409-08321-5ES |
from US $1.15 |
||
|
19
|
19
37990-81A20-T01 SWITCH ASSY,P/W MAINDX |
37990-81A20-T01 |
US $231.64 |
||
|
20
|
20
37995-77A00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) DX |
37995-77A00-T01 |
from US $32.92 |
||
|
21
|
21
37430-64G00-000 SWITCH ASSY,HAZARD WARNING |
37430-64G00-000 |
from US $25.25 |
||
|
22
|
22
35180-79G00-000
SWITCH ASSY,HEADLAMP LEVELING
Saudi Arabia |
35180-79G00-000 |
— | ||
|
23
|
23
34160-60G00-000
BUZZER ASSY,SPEED WARNER
Saudi Arabia |
34160-60G00-000 |
— | ||
|
24
|
24
03142-05123-000
Screw
Saudi Arabia |
03142-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0512A-000 SCREWScrew, belt cooling duct Saudi Arabia |
03141-0512A-000 |
from US $0.76 |
||
|
25
|
25
37860-64G00-000 SWITCH ASSY,RR DEFOGGERChile |
37860-64G00-000 |
from US $26.17 |
||
