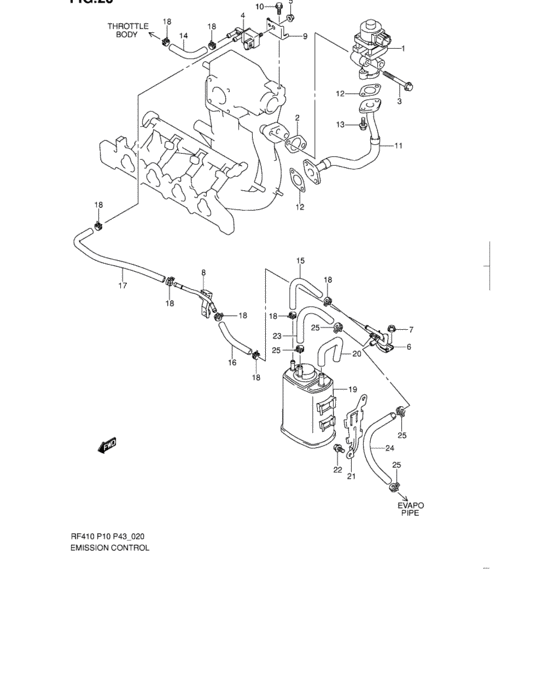

Emission control (EMISSION CONTROL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-79GA0-000
Valve, egr
|
18111-79GA0-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-79GA1-000 VALVE,EGR |
18111-79GA1-000 |
from US $207.81 |
||
|
2
|
2
18529-M79GA-000
Gasket
|
18529-M79GA-000 |
— | ||
|
3
|
3
01550-08553-000
Bolt
|
01550-08553-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.58 |
||
|
3
|
3
01550-0855A-000 BoltBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
4
|
4
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge |
18117-52G00-000 |
from US $74.25 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.80 |
||
|
6
|
6
18340-M79GA-000
Pipe, vacuum
|
18340-M79GA-000 |
— | ||
|
7
|
7
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.80 |
||
|
8
|
8
18345-M79GA-000
Pipe, cstr purge
|
18345-M79GA-000 |
— | ||
|
9
|
9
18411-M79GA-000
Bracket, purge vsv
|
18411-M79GA-000 |
— | ||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
18530-M79GB-000
Pipe, egr
|
18530-M79GB-000 |
— | ||
|
12
|
12
18533-79GA0-000 GASKET,EGR PIPE |
18533-79GA0-000 |
US $3.61 |
||
|
13
|
13
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
18564-M79GA-000
Hose, vac
|
18564-M79GA-000 |
— | ||
|
15
|
15
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->170 |
09355-54115-600 |
from US $7.20 |
||
|
16
|
16
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->120 |
09355-54115-600 |
from US $7.20 |
||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->340 |
09355-54115-600 |
from US $7.20 |
||
|
18
|
18
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
19
|
19
18560-81AA0-000 CANISTER |
18560-81AA0-000 |
from US $84.02 |
||
|
20
|
20
18561-M78F0-000
Hose, cstr suction
|
18561-M78F0-000 |
— | ||
|
21
|
21
18571-M79GA-000
Bracket
|
18571-M79GA-000 |
— | ||
|
22
|
22
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
23
|
23
09355-54128-600
Hose,5.4x12.2x600
L:600->180 |
09355-54128-600 |
— | ||
| replacement | |||||
|
23
|
23
09355-56128-600 HOSE(5.6X12.4X600)L:600->180 |
09355-56128-600 |
from US $8.46 |
||
|
24
|
24
09355-54128-600
Hose,5.4x12.2x600
L:600->270 |
09355-54128-600 |
— | ||
| replacement | |||||
|
24
|
24
09355-56128-600 HOSE(5.6X12.4X600)L:600->270 |
09355-56128-600 |
from US $8.46 |
||
|
25
|
25
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
25
|
25
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
