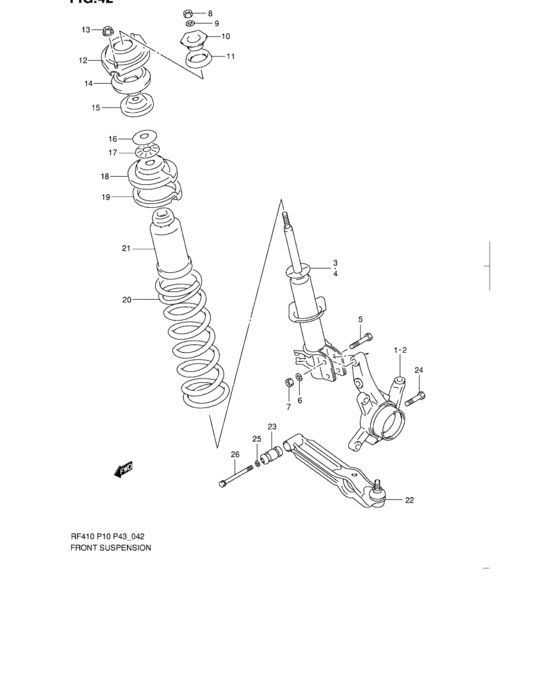

Front suspension (FRONT SUSPENSION) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
45110-76810-000 KNUCKLE SET,STEERING,R04 MODEL |
45110-76810-000 |
US $193.20 |
||
1
|
1
45111-M76G0-000
Knuckle, steering rh
05 MODEL |
45111-M76G0-000 |
— | ||
2
|
2
45150-76810-000 KNUCKLE SET,STEERING,L04 MODEL |
45150-76810-000 |
US $193.20 |
||
2
|
2
45151-M76G0-000
Knuckle, steering lh
05 MODEL |
45151-M76G0-000 |
— | ||
3
|
3
41601-M79G0-000
Strut assy, suspension rh
|
41601-M79G0-000 |
— | ||
4
|
4
41602-M79G0-000
Strut assy, suspension lh
|
41602-M79G0-000 |
— | ||
5
|
5
09103-12501-000 BOLT(12X55) |
09103-12501-000 |
from US $2.03 |
||
5
|
5
09100-12033-000
ボルト,12X53
|
09100-12033-000 |
— | ||
replacement | |||||
5
|
5
09103-12501-000 BOLT(12X55) |
09103-12501-000 |
from US $2.03 |
||
6
|
6
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
replacement | |||||
6
|
6
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
replacement | |||||
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
8
|
8
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
replacement | |||||
8
|
8
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
9
|
9
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
replacement | |||||
9
|
9
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
10
|
10
41714-M8200-000
Support, strut inner
|
41714-M8200-000 |
— | ||
11
|
11
41713-M8400-000
Stopper, strut rebound
|
41713-M8400-000 |
— | ||
12
|
12
41710-M8200-000
Support, strut
|
41710-M8200-000 |
— | ||
13
|
13
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
replacement | |||||
13
|
13
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
14
|
14
41712-M8400-000
Mount, strut
|
41712-M8400-000 |
— | ||
15
|
15
41720-M8200-000
Seat, strut mount
|
41720-M8200-000 |
— | ||
16
|
16
41731-M50E0-000
Seat, strut bearing
|
41731-M50E0-000 |
— | ||
17
|
17
41741-M50E0-000
Bearing, strut
|
41741-M50E0-000 |
— | ||
18
|
18
41230-M50E0-000
Seat, coil spring upper
|
41230-M50E0-000 |
— | ||
19
|
19
41211-M70B0-000
Seat, coil spring
|
41211-M70B0-000 |
— | ||
20
|
20
41111-M79G0-000
Spring, front coil
|
41111-M79G0-000 |
— | ||
21
|
21
42111-70B11-000 STOPPER,BUMP |
42111-70B11-000 |
US $25.76 |
||
22
|
22
45200-M79F0-000
Arm assy, suspension control
|
45200-M79F0-000 |
— | ||
23
|
23
09319-M1003-000
Bush
|
09319-M1003-000 |
— | ||
24
|
24
09100-M1016-900
Bolt
|
09100-M1016-900 |
— | ||
25
|
25
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
replacements | |||||
25
|
25
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
25
|
25
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
26
|
26
09117-M1002-500
Bolt
|
09117-M1002-500 |
— |
