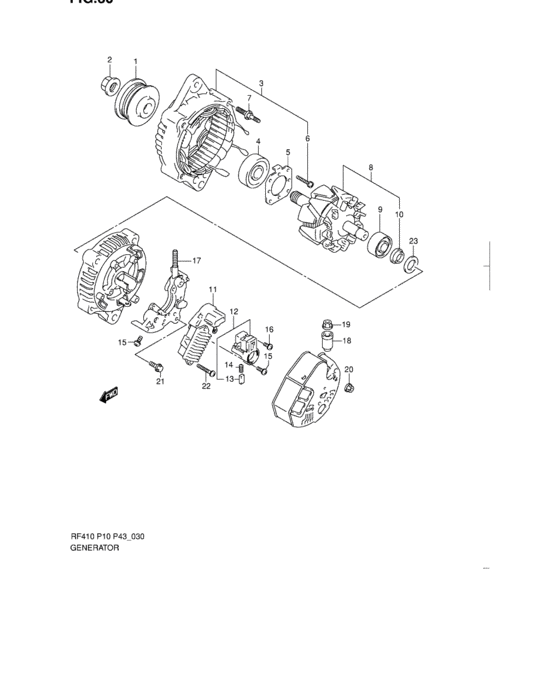

Generator (GENERATOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
31400-M79G0-000
Generator assy
|
31400-M79G0-000 |
— | ||
|
1
|
1
31171-M60G1-000
Pulley
|
31171-M60G1-000 |
— | ||
|
2
|
2
31775-M8651-000
Nut
|
31775-M8651-000 |
— | ||
|
3
|
3
31580-M60G1-200
Frame assy, drive end
|
31580-M60G1-200 |
— | ||
|
4
|
4
31582-M60G1-300
Bearing
|
31582-M60G1-300 |
— | ||
|
5
|
5
31585-M8211-100
Retainer, bearing
|
31585-M8211-100 |
— | ||
|
6
|
6
02112-04163-000
Screw
|
02112-04163-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0416A-000 SCREW |
02112-0416A-000 |
from US $0.68 |
||
|
7
|
7
31587-M8211-000
Bolt
|
31587-M8211-000 |
— | ||
|
8
|
8
31710-M60G1-200
Rotor assy
|
31710-M60G1-200 |
— | ||
|
9
|
9
31612-M60G1-300
Bearing
|
31612-M60G1-300 |
— | ||
|
10
|
10
31613-M8261-000
Cover, bearing
|
31613-M8261-000 |
— | ||
|
11
|
11
32500-M80G1-000
Regulator assy
|
32500-M80G1-000 |
— | ||
|
12
|
12
31656-M60G1-000
Holder assy, brush
|
31656-M60G1-000 |
— | ||
|
13
|
13
31631-M8261-000
Brush
|
31631-M8261-000 |
— | ||
|
14
|
14
31635-M8261-000
Spring, brush
|
31635-M8261-000 |
— | ||
|
15
|
15
02112-04063-000
Screw
|
02112-04063-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
16
|
16
31517-M75F0-000
Screw
|
31517-M75F0-000 |
— | ||
|
17
|
17
31621-M75F0-000
Rectifier
|
31621-M75F0-000 |
— | ||
|
18
|
18
31514-M8261-000
Insulator, terminal
|
31514-M8261-000 |
— | ||
|
19
|
19
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
20
|
20
08316-10053-000
Nut
|
08316-10053-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.96 |
||
|
21
|
21
31599-M75F0-000
Bolt
|
31599-M75F0-000 |
— | ||
|
22
|
22
02112-74253-000
SCREW
|
02112-74253-000 |
— | ||
| replacement | |||||
|
22
|
22
32642-80G10-000 SCREW |
32642-80G10-000 |
US $1.69 |
||
|
23
|
23
31615-M60G1-000
Washer
|
31615-M60G1-000 |
— | ||
