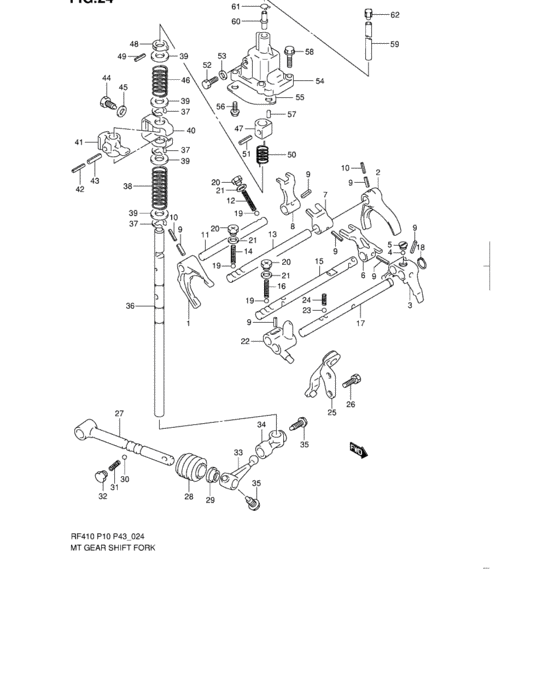

Mt gear shift fork (MT GEAR SHIFT FORK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-M63D0-000
Fork, low speed gear shift
|
25211-M63D0-000 |
— | ||
|
2
|
2
25221-M70B0-000
Fork, high speed gear shift
|
25221-M70B0-000 |
— | ||
|
3
|
3
25231-M70B5-200
Fork, 5th gear shift
|
25231-M70B5-200 |
— | ||
|
4
|
4
06111-10004-000 BALL |
06111-10004-000 |
US $8.50 |
||
| replacement | |||||
|
4
|
4
06111-10003-000 BALL |
06111-10003-000 |
from US $0.68 |
||
|
5
|
5
09248-M1000-600
Plug
|
09248-M1000-600 |
— | ||
|
6
|
6
25261-M70B5-200
Yoke, 5th/reverse gear shift
|
25261-M70B5-200 |
— | ||
|
7
|
7
25281-M60D0-000
Yoke, high speed gear shift
|
25281-M60D0-000 |
— | ||
|
8
|
8
25271-M70B0-200
Yoke, low speed gear shift
|
25271-M70B0-200 |
— | ||
|
9
|
9
09205-M0400-900
Spring pin
|
09205-M0400-900 |
— | ||
|
10
|
10
09205-M0201-600
Spring pin
|
09205-M0201-600 |
— | ||
|
11
|
11
25411-M63D0-100
Shaft, low speed gear shift
|
25411-M63D0-100 |
— | ||
|
12
|
12
25415-M70B0-000
Spring, locating
|
25415-M70B0-000 |
— | ||
|
13
|
13
25421-M63D0-100
Shaft, high speed gear shift
|
25421-M63D0-100 |
— | ||
|
14
|
14
25415-M70B0-000
Spring, locating
|
25415-M70B0-000 |
— | ||
|
15
|
15
25451-M73B5-200
Shaft, 5th/reverse gear shift
|
25451-M73B5-200 |
— | ||
|
16
|
16
25435-M70B0-000
Spring, locating
|
25435-M70B0-000 |
— | ||
|
17
|
17
25431-M73B5-200
Shaft, gear shift guide
|
25431-M73B5-200 |
— | ||
|
18
|
18
08331-M3112-900
Circlip
|
08331-M3112-900 |
— | ||
|
19
|
19
06111-10004-000 BALL |
06111-10004-000 |
US $8.50 |
||
| replacement | |||||
|
19
|
19
06111-10003-000 BALL |
06111-10003-000 |
from US $0.68 |
||
|
20
|
20
09128-M1000-100
Bolt
|
09128-M1000-100 |
— | ||
|
21
|
21
08322-01103-000
Washer
|
08322-01103-000 |
— | ||
| replacements | |||||
|
21
|
21
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.80 |
||
|
21
|
21
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
22
|
22
25251-M73B5-000
Arm, reverse gear shift
|
25251-M73B5-000 |
— | ||
|
23
|
23
06111-10004-000 BALL |
06111-10004-000 |
US $8.50 |
||
| replacement | |||||
|
23
|
23
06111-10003-000 BALL |
06111-10003-000 |
from US $0.68 |
||
|
24
|
24
25255-M60B0-100
Spring, reverse gear shift arm
|
25255-M60B0-100 |
— | ||
|
25
|
25
25460-M73B0-000
Lever, reverse gear shift
|
25460-M73B0-000 |
— | ||
|
26
|
26
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
26
|
26
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
26
|
26
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
27
|
27
25510-M70B0-200
Shaft, gear shift
|
25510-M70B0-200 |
— | ||
|
28
|
28
25595-M8200-000
Boot, gear shift shaft
|
25595-M8200-000 |
— | ||
|
29
|
29
25517-M79F0-000
Seal, gear, shift shaft oil
|
25517-M79F0-000 |
— | ||
|
30
|
30
06111-10004-000 BALL |
06111-10004-000 |
US $8.50 |
||
| replacement | |||||
|
30
|
30
06111-10003-000 BALL |
06111-10003-000 |
from US $0.68 |
||
|
31
|
31
25515-M60B0-100
Spring, gear shift
|
25515-M60B0-100 |
— | ||
|
32
|
32
09128-M1000-200
Bolt
|
09128-M1000-200 |
— | ||
|
33
|
33
25521-M76G0-000
Arm, gear shift
|
25521-M76G0-000 |
— | ||
|
34
|
34
25531-M76G0-000
Yoke, gear shift
|
25531-M76G0-000 |
— | ||
|
35
|
35
25701-60B10-000 BOLT,GEAR SHIFT YOKE |
25701-60B10-000 |
US $1.98 |
||
|
36
|
36
25571-M73B5-200
Shaft, gear shift/select
|
25571-M73B5-200 |
— | ||
|
37
|
37
08332-11126-000
E ring
|
08332-11126-000 |
— | ||
| replacement | |||||
|
37
|
37
08332-1112A-000 E RING |
08332-1112A-000 |
from US $0.96 |
||
|
38
|
38
25576-M60D0-000
Spring, select
|
25576-M60D0-000 |
— | ||
|
39
|
39
08212-14301-000 WASHER |
08212-14301-000 |
from US $1.70 |
||
|
40
|
40
25311-M60B0-000
Plate, gear shift inter lock
|
25311-M60B0-000 |
— | ||
|
41
|
41
25541-M79F0-000
Lever, gear shift/select
|
25541-M79F0-000 |
— | ||
|
42
|
42
09205-M0301-600
Spring pin
|
09205-M0301-600 |
— | ||
|
43
|
43
09205-06004-000 PIN,SPRING(6X28) |
09205-06004-000 |
US $11.40 |
||
|
44
|
44
25321-60B01-000 BOLT,GEAR SHF INTERLOCK |
25321-60B01-000 |
US $1.82 |
||
|
45
|
45
08322-01103-000
Washer
|
08322-01103-000 |
— | ||
| replacements | |||||
|
45
|
45
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.80 |
||
|
45
|
45
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
46
|
46
25577-M60D0-100
Spring, reverse select
|
25577-M60D0-100 |
— | ||
|
47
|
47
25581-M50F0-000
Cam, 5th/reverse gear shift
|
25581-M50F0-000 |
— | ||
|
48
|
48
25582-M60B5-100
Guide, gear shift cam
|
25582-M60B5-100 |
— | ||
|
49
|
49
09205-M0303-500
Spring pin
|
09205-M0303-500 |
— | ||
|
50
|
50
25583-M60B5-000
Spring, cam guide return
|
25583-M60B5-000 |
— | ||
|
51
|
51
09205-M0400-900
Spring pin
|
09205-M0400-900 |
— | ||
|
52
|
52
25584-M70C0-000
Bolt, inter lock guide
|
25584-M70C0-000 |
— | ||
|
53
|
53
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
53
|
53
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
53
|
53
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
54
|
54
25573-M72F0-000
Case, gear shift guide
|
25573-M72F0-000 |
— | ||
|
55
|
55
25575-M60D5-000
Plate, gear shift guide case
|
25575-M60D5-000 |
— | ||
|
56
|
56
09103-M0608-300
Bolt
|
09103-M0608-300 |
— | ||
|
57
|
57
04221-06129-000 PIN |
04221-06129-000 |
US $0.96 |
||
|
58
|
58
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
58
|
58
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
60
|
60
09364-M0800-400
Union
|
09364-M0800-400 |
— | ||
|
61
|
61
09401-M1030-100
Clip
|
09401-M1030-100 |
— | ||
|
62
|
62
24821-M7800-000
Plug
|
24821-M7800-000 |
— | ||
