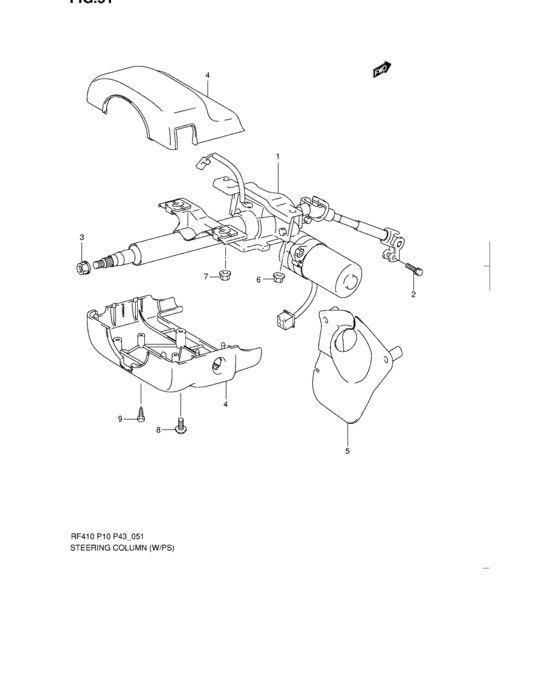

Steering column (W/POWER STEERING) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-79G73-000
Column assy,colps steering
|
48200-79G73-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30) |
09117-08053-000 |
from US $1.26 |
||
|
3
|
3
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
48400-80G50-T01 COVER ASSY,STRG COLUMN |
48400-80G50-T01 |
from US $23.33 |
||
|
5
|
5
48481-M76G5-000
Cover, steering joint
|
48481-M76G5-000 |
— | ||
|
6
|
6
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
09159-M0806-900
Nut
|
09159-M0806-900 |
— | ||
|
8
|
8
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
from US $0.52 |
||
|
9
|
9
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03211-0512A-000 SCREW |
03211-0512A-000 |
from US $0.45 |
||
