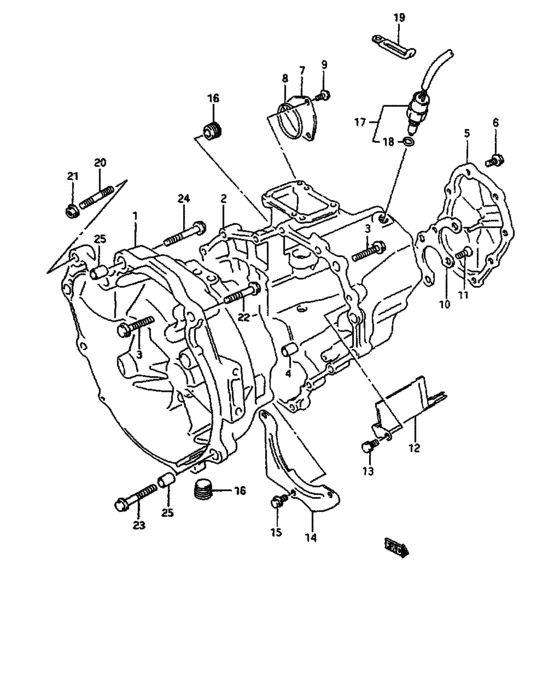

Mt tm case (4MT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Asia
- transmission
- 4MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-60D02-000
Case,transmission,right
|
24711-60D02-000 |
— | ||
|
2
|
2
24721-60D02-000 CASE,TRANSAXLE,L |
24721-60D02-000 |
US $351.44 |
||
|
3
|
3
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
5
|
5
24730-70B00-000
COVER,T/M SIDE
|
24730-70B00-000 |
— | ||
|
6
|
6
09135-06022-000
Bolt
|
09135-06022-000 |
— | ||
| replacement | |||||
|
6
|
6
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
|
7
|
7
24741-78141-000
Cap,transmission left case
|
24741-78141-000 |
— | ||
| replacement | |||||
|
7
|
7
24741-60D00-000 CAP,TRANSAXLE LEFT CASE |
24741-60D00-000 |
US $3.64 |
||
|
8
|
8
24761-50A00-000 O-RING,T/M LEFT CASE LOWER CAP |
24761-50A00-000 |
US $1.60 |
||
|
9
|
9
09135-06022-000
Bolt
|
09135-06022-000 |
— | ||
| replacement | |||||
|
9
|
9
09135-06027-000 BOLT(6X12) |
09135-06027-000 |
from US $1.12 |
||
|
10
|
10
24725-70B51-000 PLATE,L CASE |
24725-70B51-000 |
US $14.65 |
||
|
11
|
11
02122-06163-000
Screw
|
02122-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
11
|
11
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
12
|
12
24810-70B01-000 GUTTER,OIL |
24810-70B01-000 |
US $8.50 |
||
|
13
|
13
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
13
|
13
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
14
|
14
24815-70B02-000 PLATE,LEFT CASE OIL HOLD |
24815-70B02-000 |
US $3.72 |
||
|
15
|
15
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
15
|
15
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
16
|
16
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
| replacement | |||||
|
16
|
16
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
17
|
17
37610-70B01-000
SWITCH ASSY,BACK UP LAMP
|
37610-70B01-000 |
— | ||
|
18
|
18
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
19
|
19
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
19
|
19
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
20
|
20
01421-10353-000
Stud 10x1.25x55
|
01421-10353-000 |
— | ||
| replacements | |||||
|
20
|
20
01421-1035A-000 BOLT,STUD |
01421-1035A-000 |
from US $4.13 |
||
|
20
|
20
01421-1035B-000 BOLT,STUD |
01421-1035B-000 |
US $17.30 |
||
|
21
|
21
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
23
|
23
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
24
|
24
01550-10603-000
Bolt
|
01550-10603-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
24
|
24
01550-1060A-000 Bolt |
01550-1060A-000 |
from US $1.60 |
||
|
25
|
25
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
